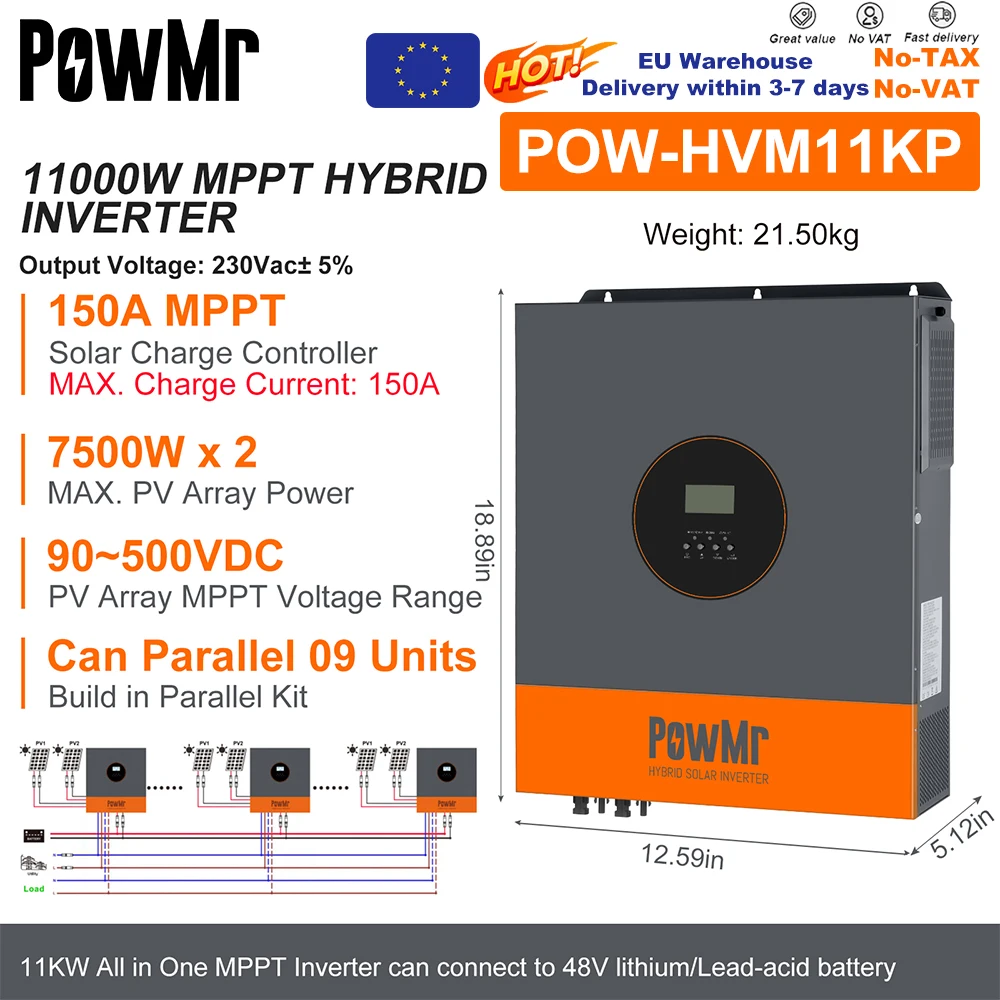

Onduleur solaire hybride PowMr EU 11KW 48V 220V à onde sinusoïdale pure avec contrôleur solaire MPPT 150A et double entrée PV pour panneaux 500V avec WIFI
€ 817,11
| Poids | 22,5 kg |
|---|---|
| Dimensions | 71 × 57 × 25 cm |
| Nom de marque |
PowMr |
| Tension LVD UE |
Basse tension : inférieure à 50Vac ou 75Vdc |
| Certification |
CE |
| Taille |
708x57x241mm |
| Origine |
CN (Origine) |
| Fréquence de sortie |
50 Hz/60 Hz (détection automatique) |
| Type de sortie |
SEUL |
| est_personnalisé |
Oui |
| Courant de Sortie |
150A MPPT |
| Poids |
21, 80 kg |
| Est-ce un appareil intelligent |
Oui |
| Numéro de Modèle |
POW-HVM11KP |
| Produit original |
Stock en magasin en Allemagne |
| Achats locaux |
Livraison en 3 à 7 jours |
| Fonctionnalité |
Pas de TVA, pas d'impôts, Contrôleur de charge solaire MPPT intégré |
| Configuration du système |
Convertisseur solaire hybride |
| Puissance de sortie de la forme d'onde |
Onde sinusoïdale pure |
| Puissance de sortie nominale |
11 kVA/11 kW |
| Tasse |
230VAC ± 5% |
| Voltmètre de batterie |
48VDC |
| Type de batterie |
Lithium, acide au plomb, AGM, inondé, gel, utilise Mo |
| MAX.Puissance d'entrée PV |
7500W/7500W |
| Gamme de tension MPPT des panneaux photovoltaïques |
90VDC-500VDC |
| Application |
Système solaire domestique |
En stock
Advantage:
1. Ship from European warehouse, delivery within 3-7 days.
2. No need to pay VAT.
Unsupported delivery areas:
1. Spanish island region. The postal code starts with "35" and "38".
2. Remote areas in France and areas with transport restrictions.
PowMr EU 11KW Hybrid Solar Inverter 48V to 220V Pure Sine Wave MPPT 150A Solar Controller Dual PV Input for Panel 500V With WIFI
Introduction:

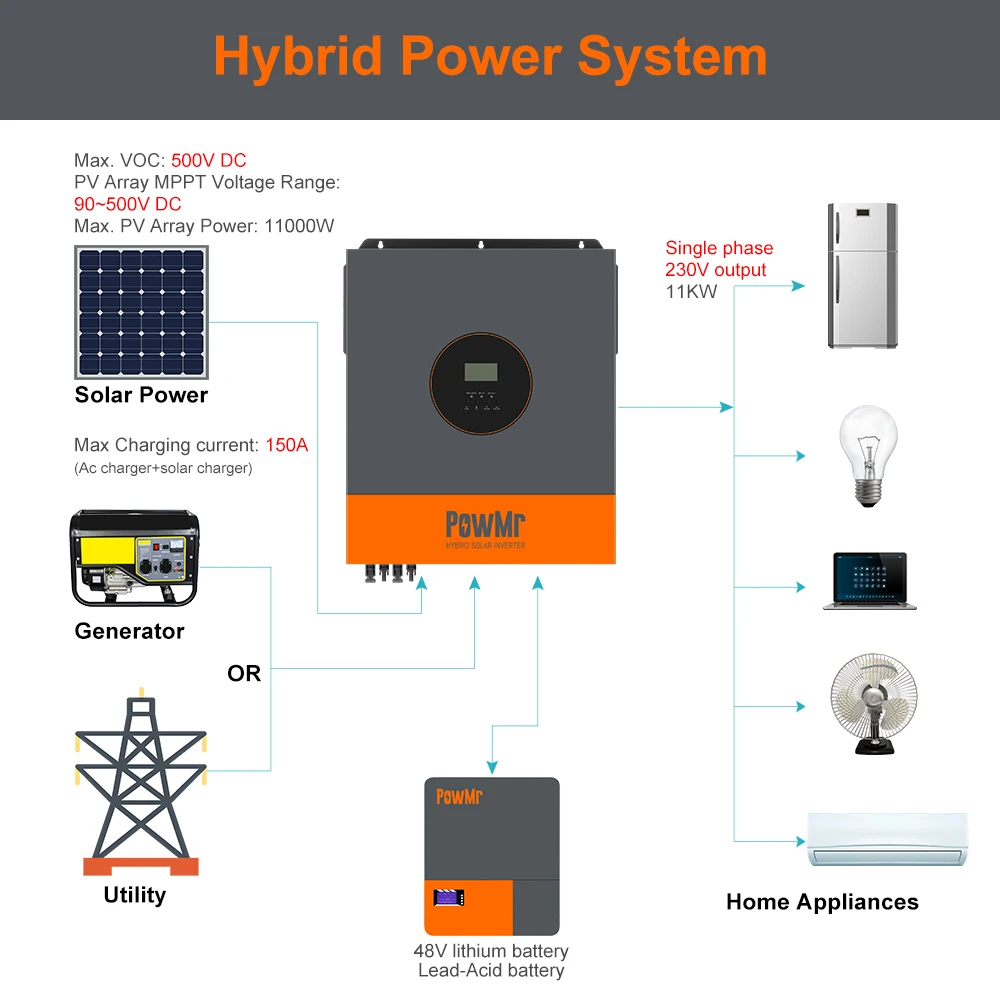

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size.
Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Feature:
• Pure sine wave inverter
• Configurable input voltage range for home appliances and personal computers via LCD setting
• Configurable battery charging current based on applications via LCD setting

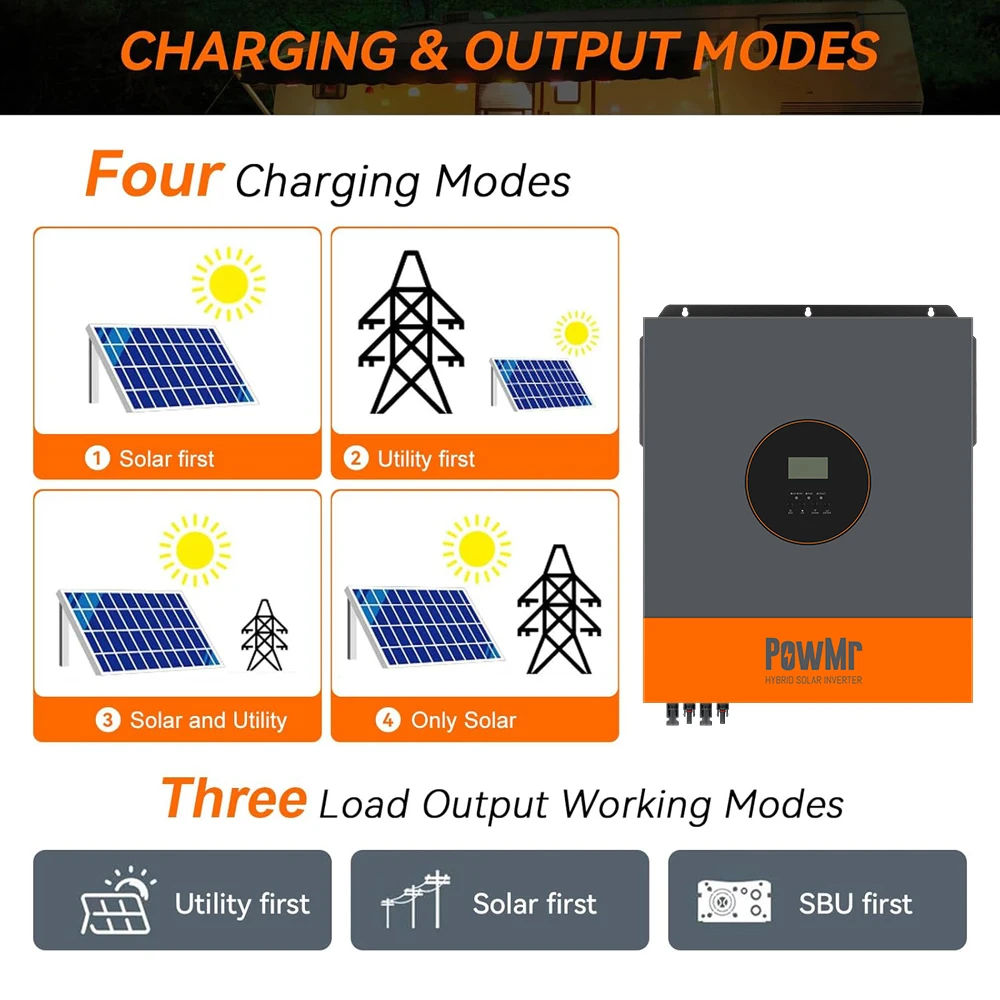

• Configurable AC/Solar Charger priority via LCD setting
• Compatible with mains voltage or generator power
• Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection
• Smart battery charger design for optimized battery performance
• Can connect to lithium battery
• Built-in MPPT solar controller

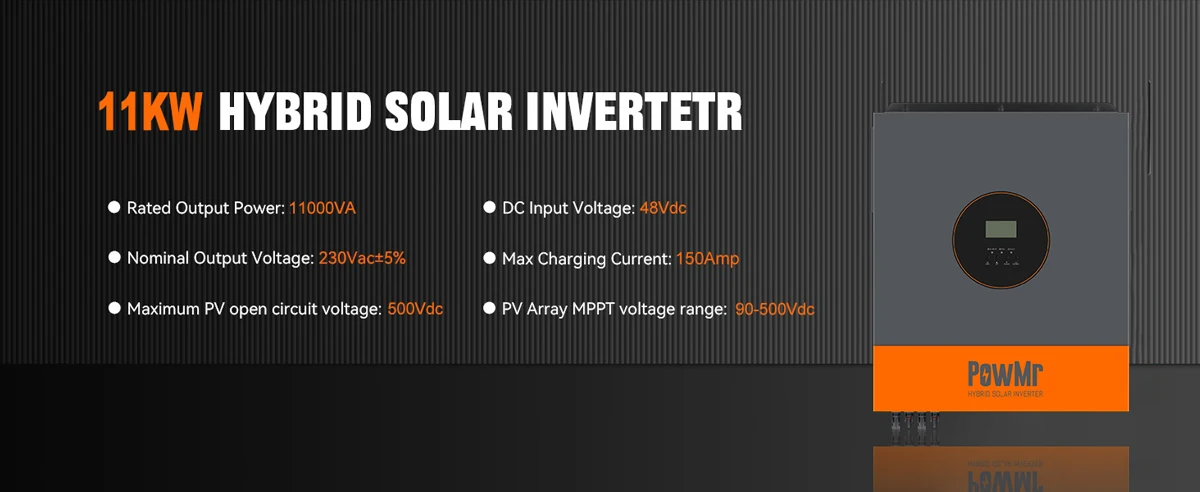

Specification:
|
INVERTER MODEL |
POW-HVM11KP |
|
|
Picture |
|
|
|
Table 1 Inverter Output |
||
|
Rated power
|
The Battery Inverter |
11000W |
|
Photovoltaic Inverter |
12000W |
|
|
Output Voltage |
220/230/240VAC±5% |
|
|
Output Frequency |
50Hz/60Hz±0.1% |
|
|
Waveform |
Pure Sine Wave |
|
|

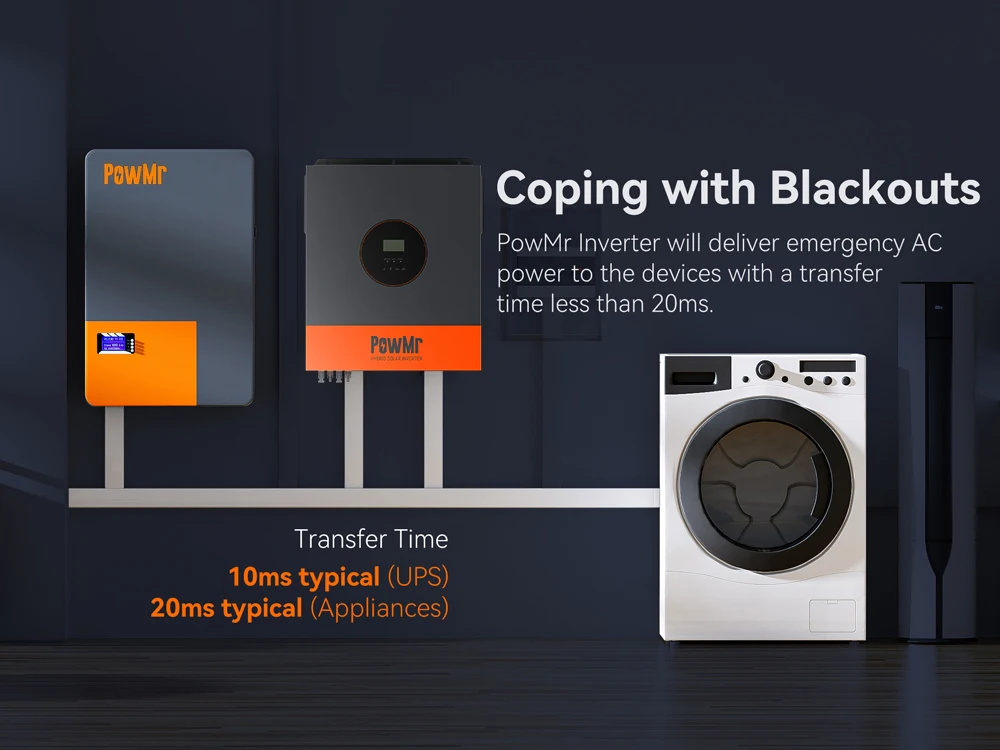

Transfer Time (Adjustable) |
Computers(UPS Mode)10ms, Appliance(APL Mode)20ms |
|
|
Peak Power |
22000VA |
|
|
Overload Capacity |
Battery mode: 11s@105%~150%Load; 2s@150%~200%Load; 400ms@>200%Load |
|
|
Table 2 AC Input |
||
|
Input Sources |
L+N+PE |
|
|
Rated Input Voltage |
220/230/240VAC |
|
|
Voltage Range |
90-280VAC±3V(APL Mode) ; |
|
|
Frequency |
50Hz/60Hz(Auto Adaptive) |
|
|
Table 3 PV Input |
||
|
PV Charging Mode |
Dual MPPT |
|
|
MAX. PV Input Power
|
7500W/7500W
|
|
|
MPPT Tracking Range |
7500W/7500W |
|
|
Operating Voltage |
360~430V |
|
|
MAX. PV Input Voltage |
500Vdc
|
|
|
PV Max Input Current |
27A/27A |
|
|
MAX. PV Charging Current |
150A
|
|
|
MAX. AC Charging Current |
150A
|
|
|
MAX. Charging Current |
150A
|
|
|
Table 4 Battery |
||
|
Battery Voltage |
48Vdc |
|
|
Constant Charging Voltage (Adjustable) |
56.4Vd |
|
|
Float Charging Voltage (Adjustable) |
54Vdc |
|
|
Table 5 Interface
|
||
|
RS232 |
Baud Rate 2400
|
|
|
Extend the Socket Communication Interface |
Lithium Battery BMS Communication Card, WiFi Card, Dry Contact |
|
|

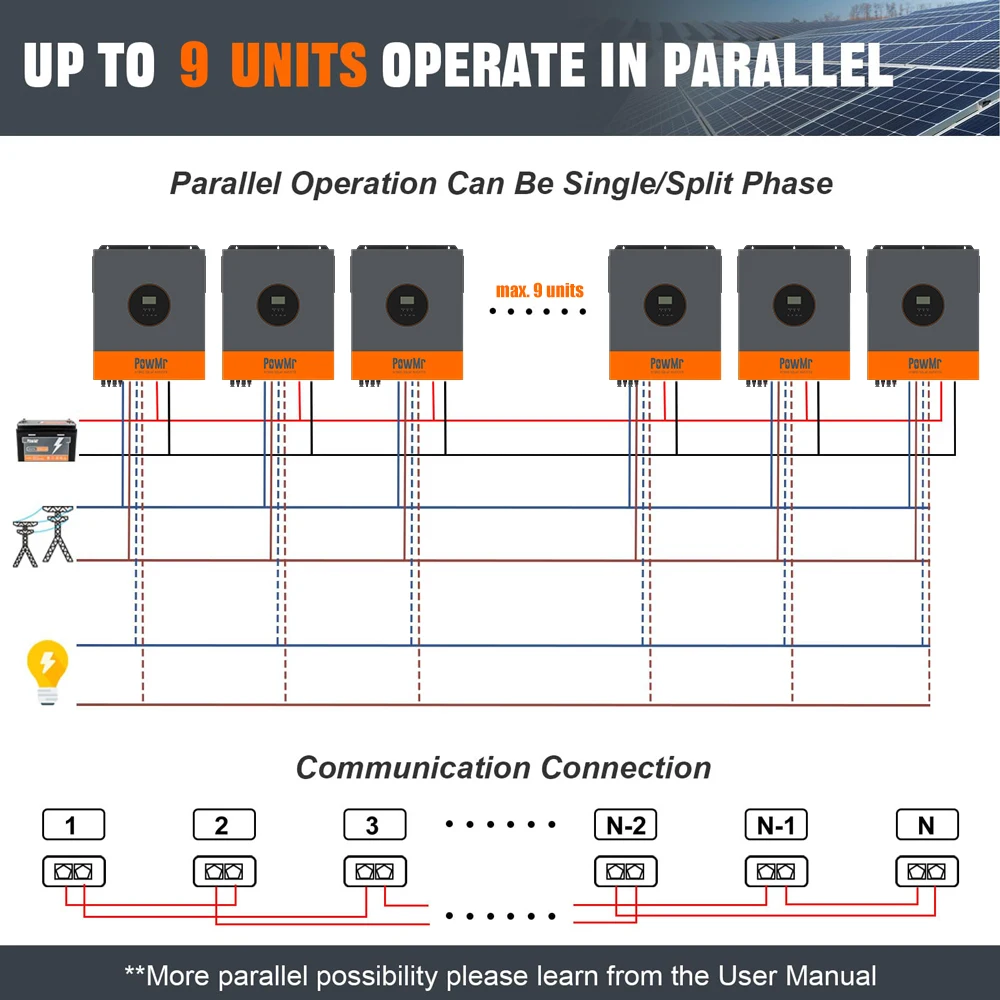

Parallel Machine Interface |
Parallel Machine(network) function |
|
|
Table 6 General Specifications |
||
|
Operating Temperature |
-10℃~50℃ |
|
|
Humidity |
20%~95% (Non-condensing) |
|
|
Storage Temperature |
-15℃~60℃ |
|
|
Altitude |
Altitude Not Over 1000m, Derating over 1000m, Max 4000m, Refer to IEC62040 |
|
|
Noise |
≤50db |
|
|
Standards and certification |
EN-IEC 60335-1, EN IEC 60335-2-29, IEC 62109-1
|
|

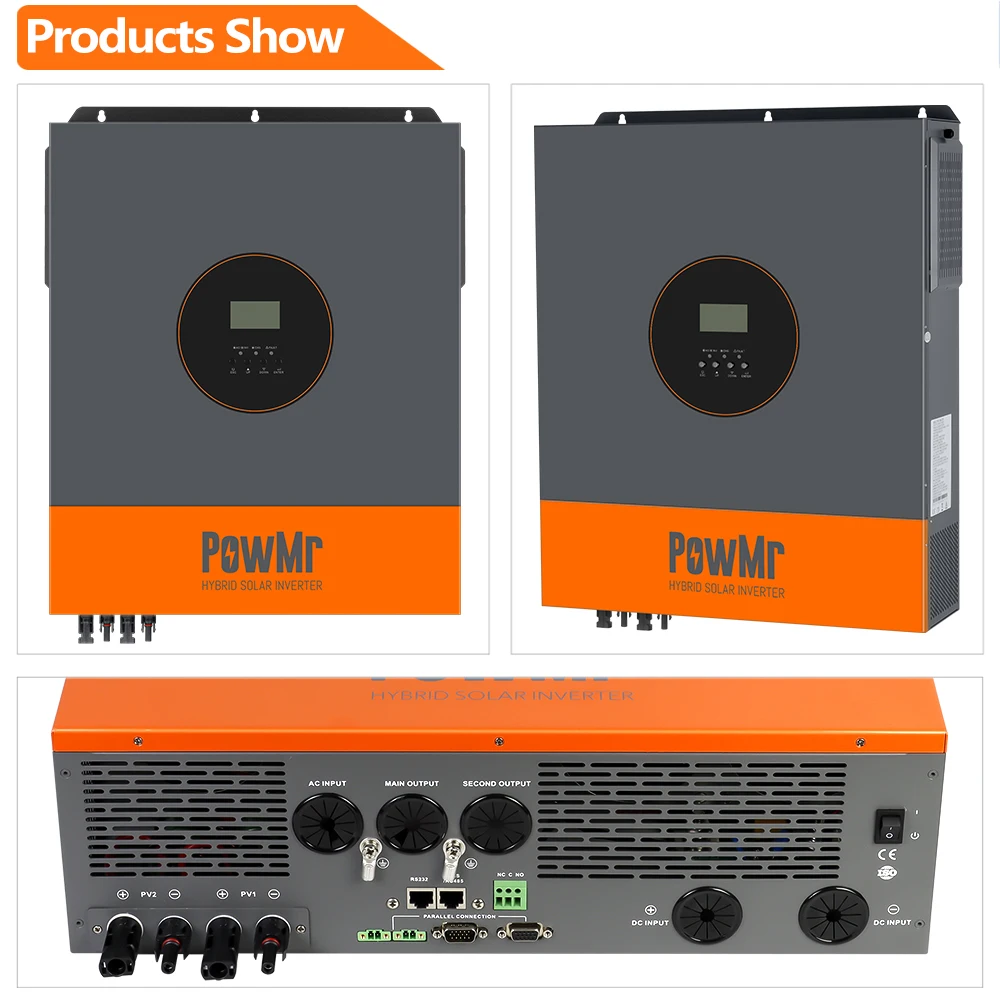

Product Overview
