nouveau! Centrale électrique de balcon 960 W avec panneaux solaires flexibles 4 x 240 W, efficacité de conversion solaire 18 %
Plage de prix : € 364,59 à € 909,77
| Poids | 10,000 kg |
|---|---|
| Dimensions | 119 × 110 × 3 cm |
| Nom de marque |
other |
| Module d'efficacité |
19.1% |
| Origine |
CN (Origine) |
| Matériau |
Silicium monocristallin |
| Nombre de panneaux |
2 |
| Panneau solaire flexible |
Oui |
| Panneau Solaire Pliable |
Non |
| est_personnalisé |
Oui |
| Certification |
CE, ROHS |
| Type d'écriture |
panneau solaire |
Notice:

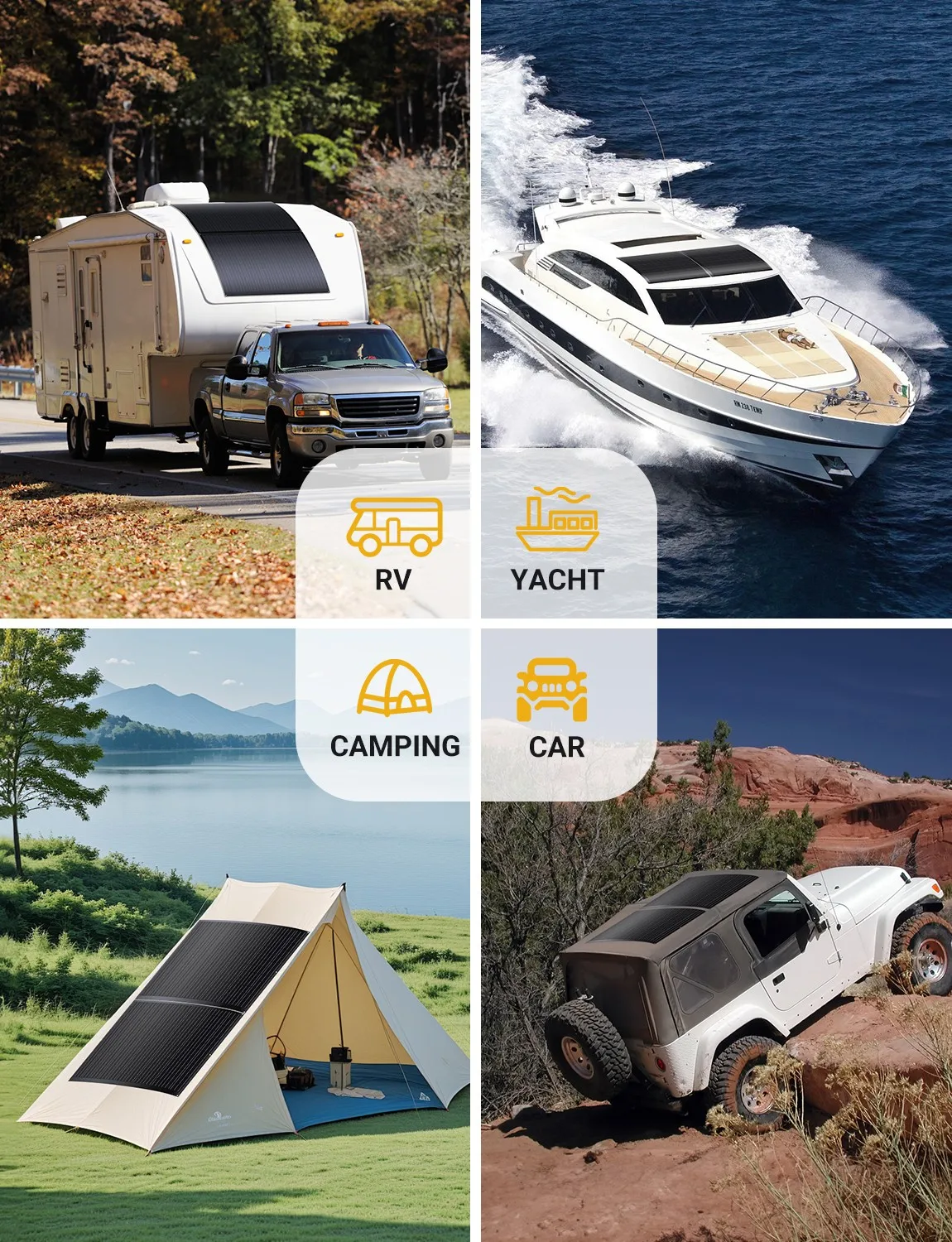

480W Flexible Solar Panel Kit (2x240W), Mono 182 Cells, IP67 Waterproof, Off-Grid PV Module for RV, Camping, Balcony, Boat, Garden
Technical Specifications
Model: LS-240W
Type Name: FLEX240MD(BK)
Maximum Power (Wp): 240W
Cell No.: MONO182 (6×12)
Connection: Parallel
Open Circuit Voltage (Voc): 23.60V
Short Circuit Current (Isc): 11.90A
Maximum Power Voltage (Vm): 21.01V
Maximum Power Current (Im): 11.23A
Maximum Series Fuse: 20A
Efficiency: 17.55%
Net Weight: 2.6KG
Cables & Plug Connectors: 2×3000mm / 2.5 mm²
Module Dimensions (L/W/H): 1150×1090×2mm
2 in 1 Carton Dimensions (inner): 1170×1120×30mm
Qty/20GP: 1300pcs
Number of Diode: 2
Power Tolerance: ±3%
Junction Box (Protection Degree): ≥IP67
Maximum System Voltage: 600V/DC
Temperature-Coefficient Isc: +0.08558%/°C
Temperature-Coefficient Uoc: -0.29506%/°C
Temperature-Coefficient Pmpp: -0.38001%/°C
Operating Temperature: -40°C ~ +85°C
Standard Test Conditions: 1000W/M², 25°C, AM1.5
Certificate: CE
🚀 800W Microinverter + 240W Flexible Solar Panel: The Ultimate Solar Combo!
Why This Pair Works Perfectly Together:

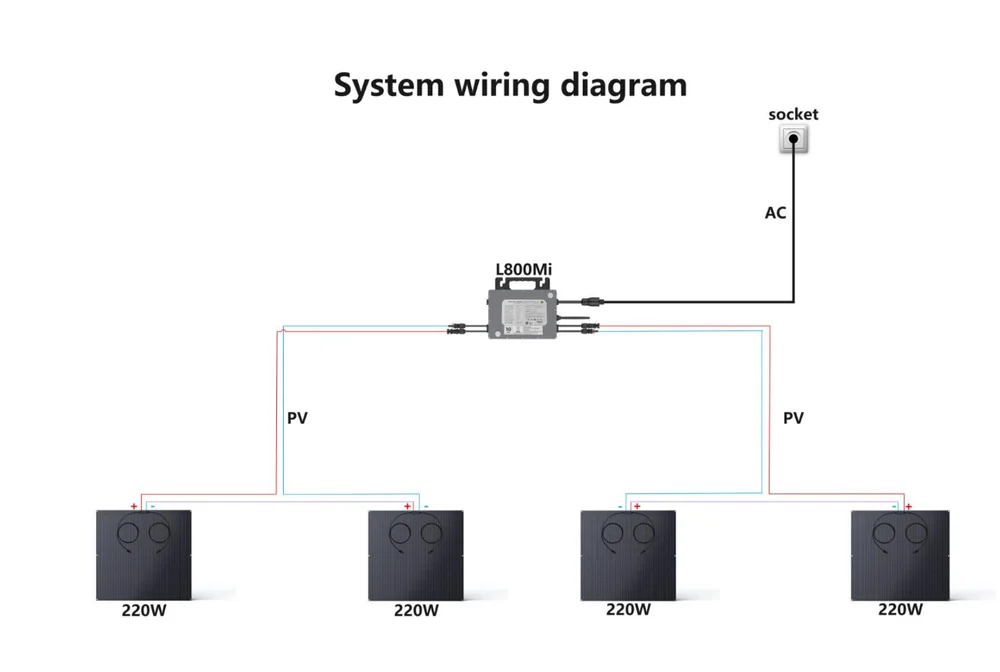

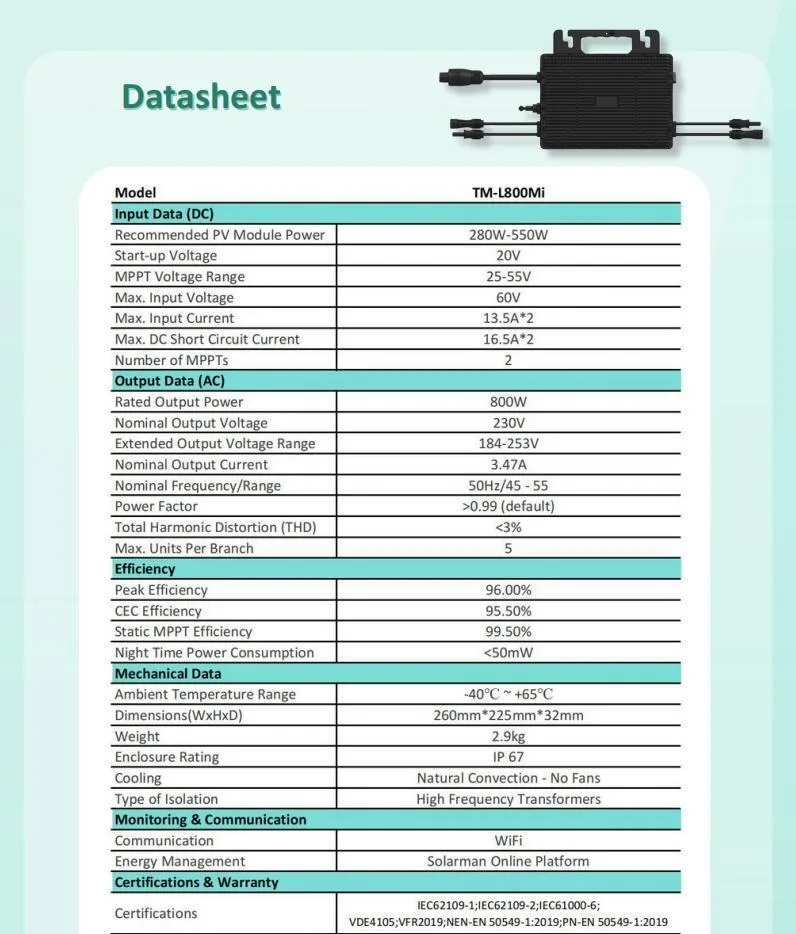

✅ Perfect Power Match – This 800W microinverter is optimized for 4x 240W flexible panels (960W total), with dual MPPT to maximize energy harvest from each panel.
✅ Ultra Lightweight & Bendable – Our flexible solar panels (only 2kg!) bend up to 30° for easy installation on curved surfaces – perfect for RVs, boats, and unique rooftops!

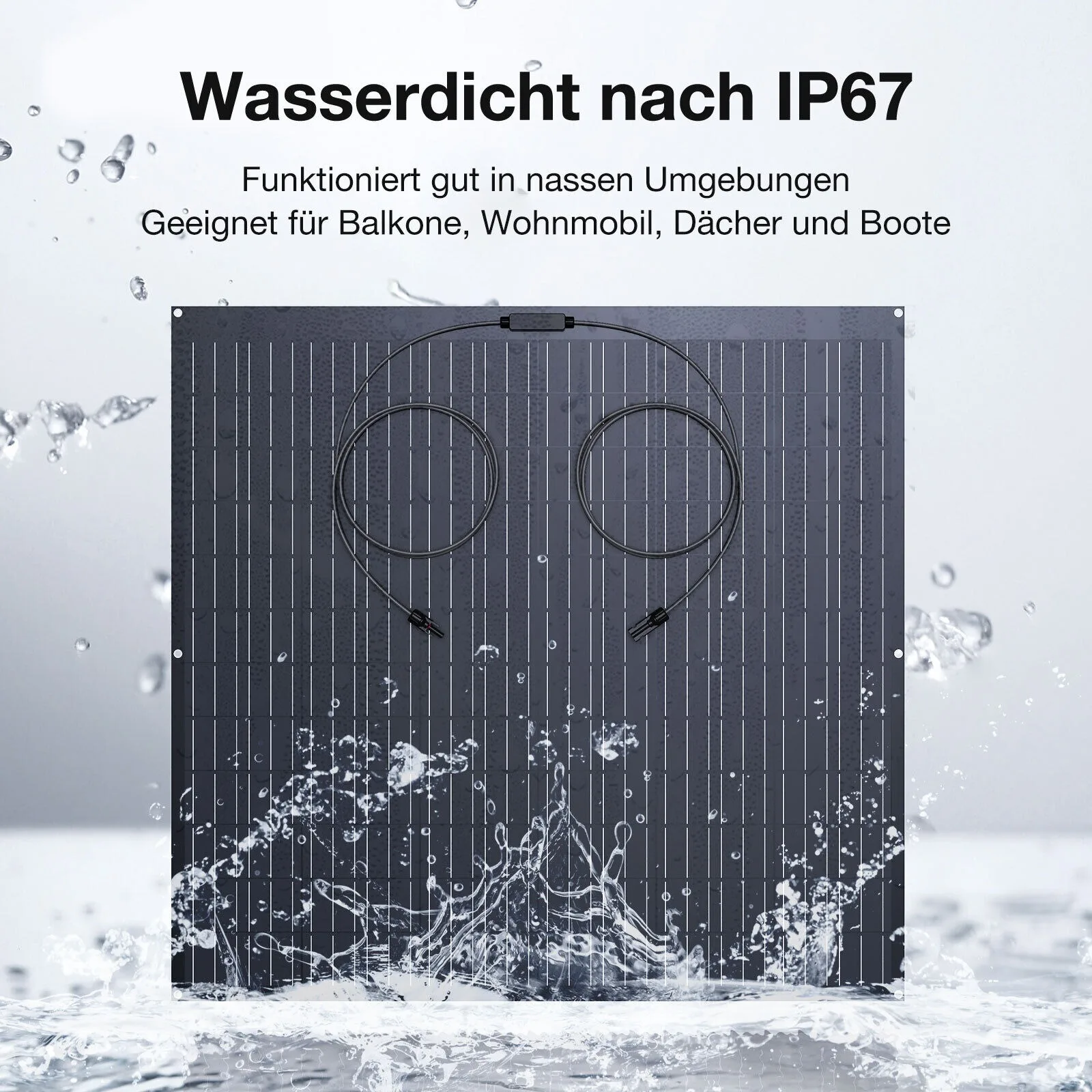

✅ Weatherproof Duo – IP67-rated inverter + waterproof panels = worry-free performance in rain or shine.
✅ Real-Time Monitoring – WiFi app lets you track production and savings 24/7 from your phone.
💡 Smart Tip: The panels’ low 60V input works perfectly with the inverter’s voltage range – no extra equipment needed!

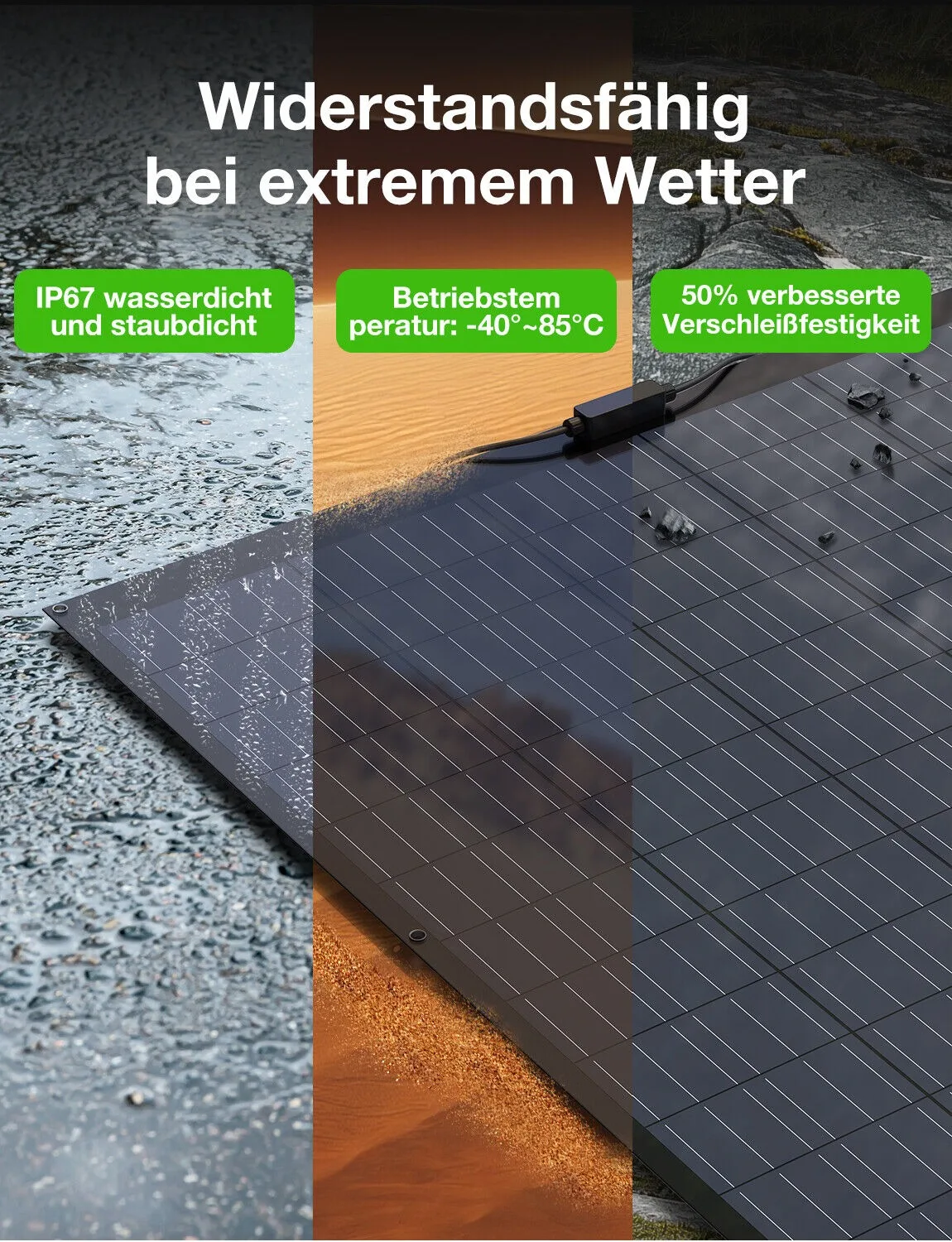

Weatherproof Solar Connector – Built for Extreme Conditions!

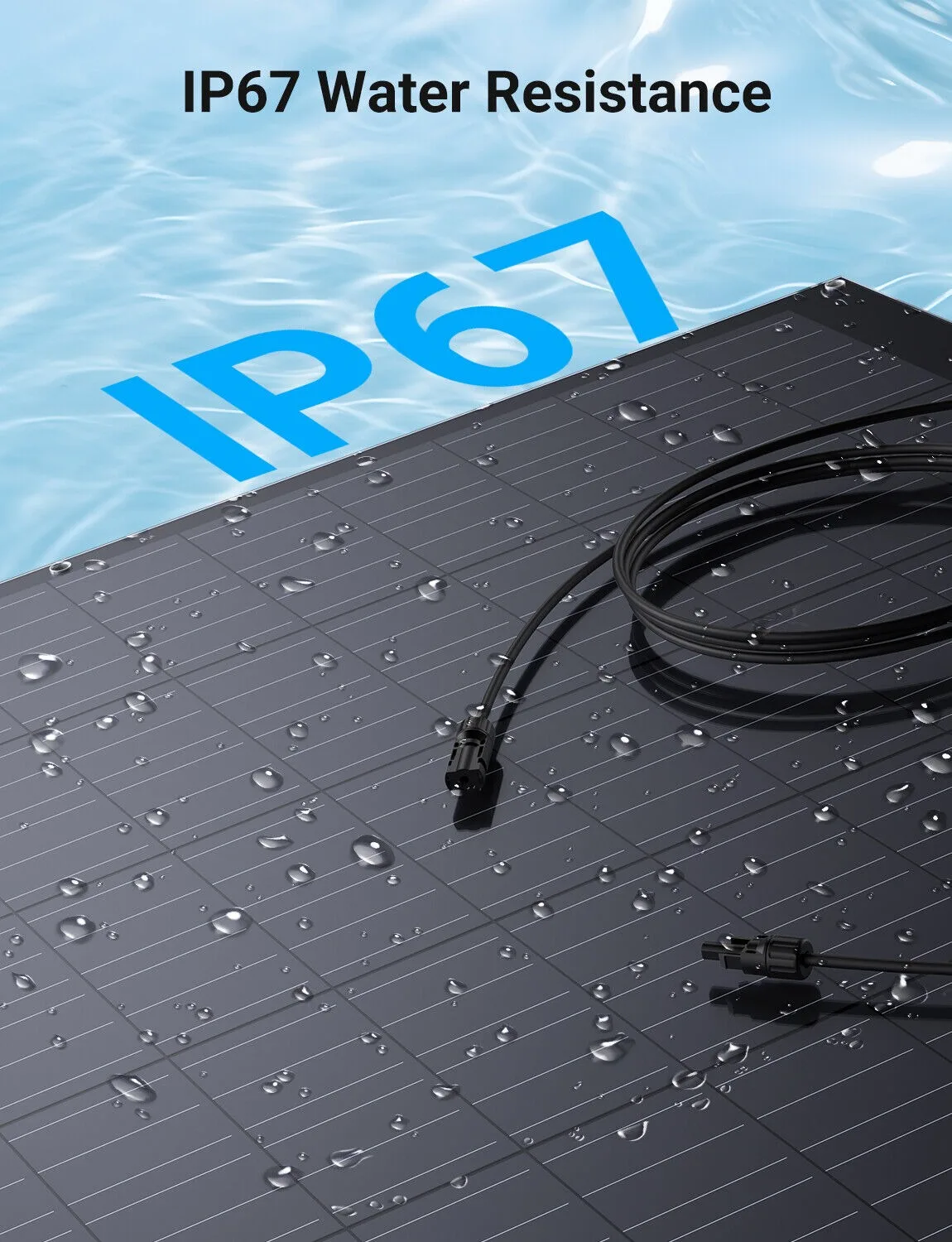

✔ IP67 Rated – Fully waterproof & dustproof
✔ Wide Temperature Range – Works from -40°C to 85°C
✔ 50% More Durable – Enhanced wear resistance
3m Solar Cable – Easy Installation!
✔ MC4 Connectors – Secure & reliable
✔ Mounting Holes – For stable fixing
✔ Waterproof Junction Box – Weather-resistant
Features:
-
3m Length – Flexible setup
-
Durable Design – Long-lasting performance
-
Plug & Play – Ready to use

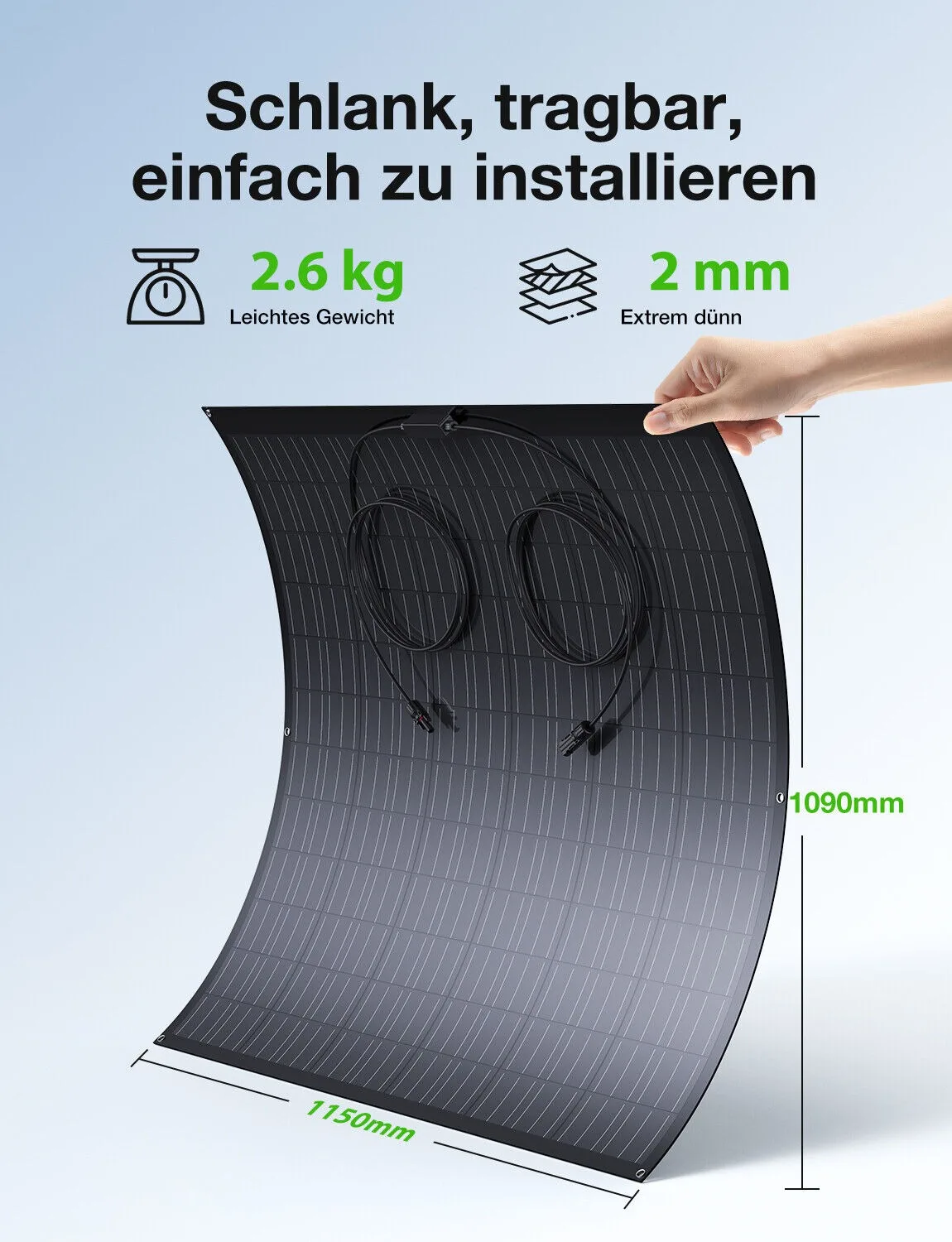

Ultra-Lightweight Solar Panel – Only 2.6kg!
✔ 70% Lighter than traditional glass solar panels
✔ Just 2mm Thick – Slimmest profile in the market
✔ Same Power Output with revolutionary weight reduction
Key Advantages:
-
Only 2.5kg – Easy to carry and mount
-
360° flexibility – Adapts to unique installation needs
-
Weather-resistant – Works in harsh conditions
Multi-Angle Sunlight Capture Technology✔ Omnidirectional Light Absorption – Special dot matrix surface collects sunlight from all angles
✔ Dual Light Utilization – Patented refraction technology doubles solar conversion
✔ 30%+ Efficiency Boost – Compared to conventional flat panels
Exceptional Solar Power Generation
✔ 1,000Wh/Day – With 8 hours of direct sunlight
✔ 80%+ Sunlight Absorption – High-efficiency performance
✔ 95% Power Output Guarantee – Reliable long-term energ
