Kit Système Solaire de Balcon 800W, 4 Panneaux Solaires Flexibles 200W + Micro-onduleur 800W, Surveillance via Application WiFi, Système PV Plug & Play

📦 Shipped directly from our EU warehouse

🧾 No extra taxes

⚡ Fast & reliable delivery

🛒 Shop with confidence!

800W Balcony Solar Power System Kit, 4×200W Flexible Solar Panels + 800W Micro Inverter, WiFi APP Monitoring, Plug & Play PV System

✅ Bullet Points

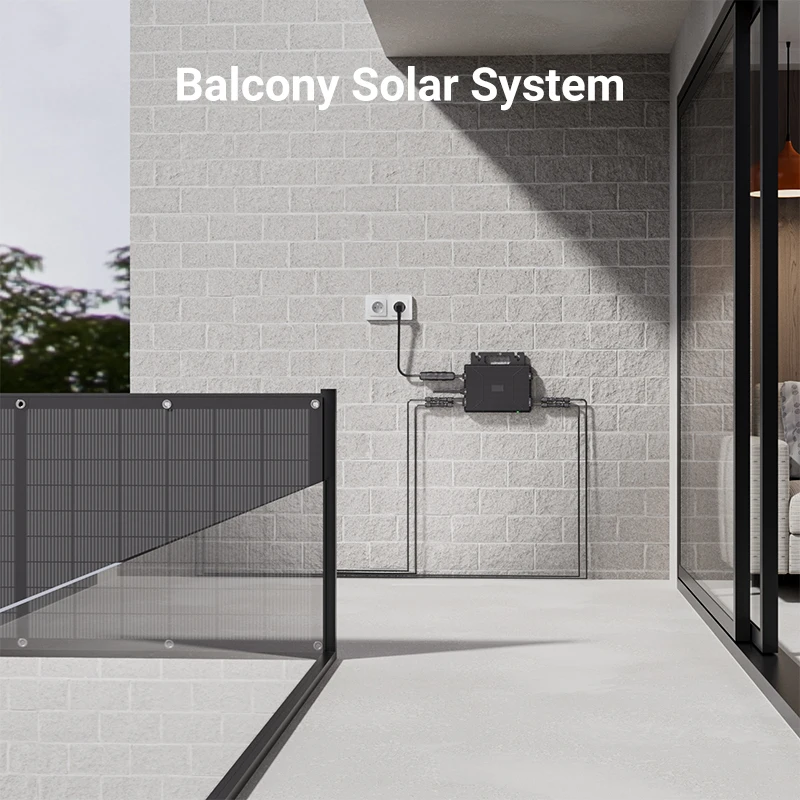

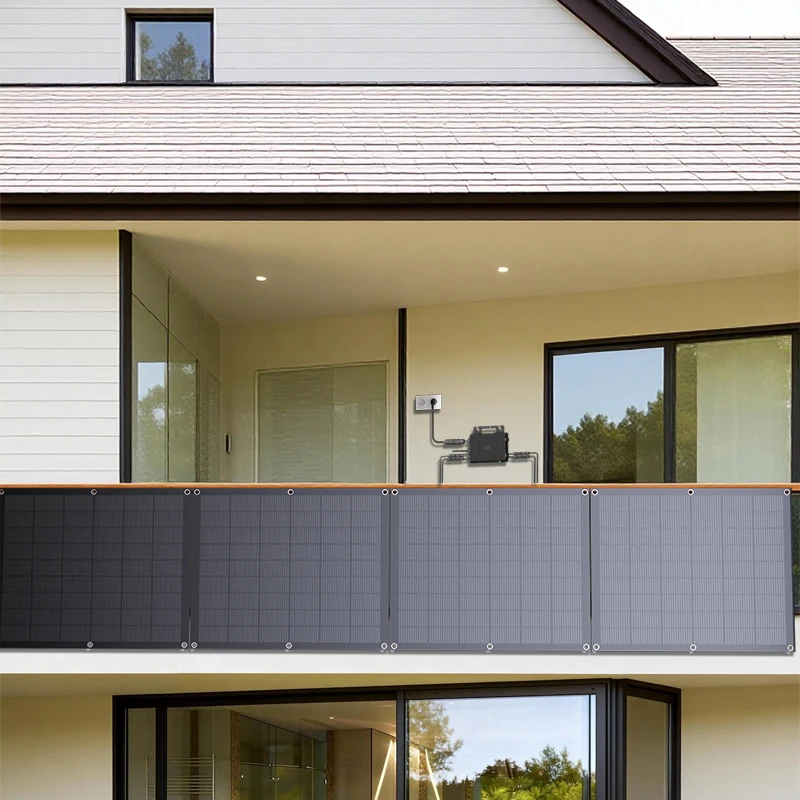

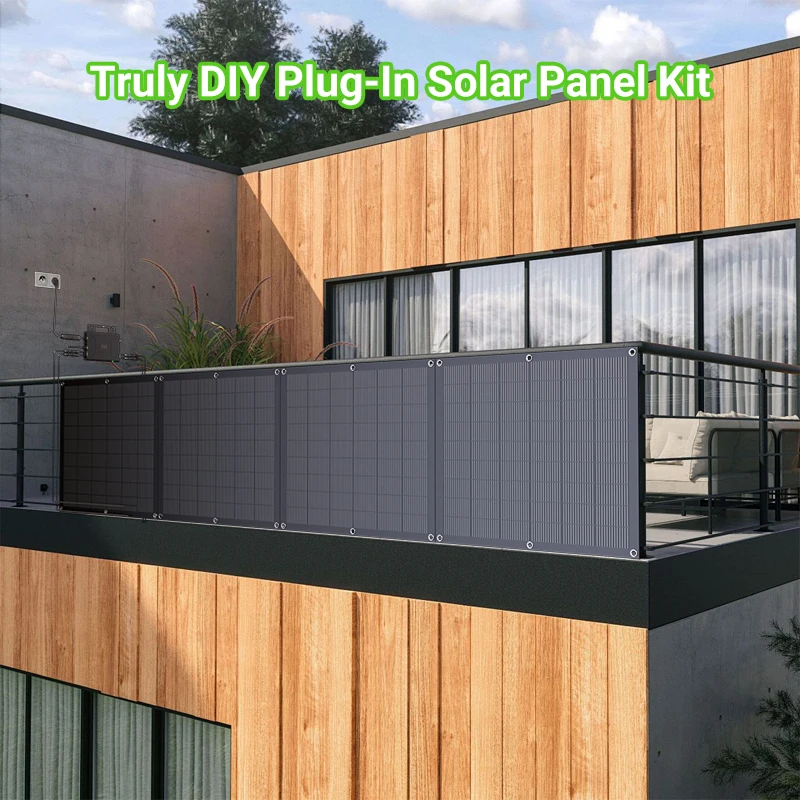

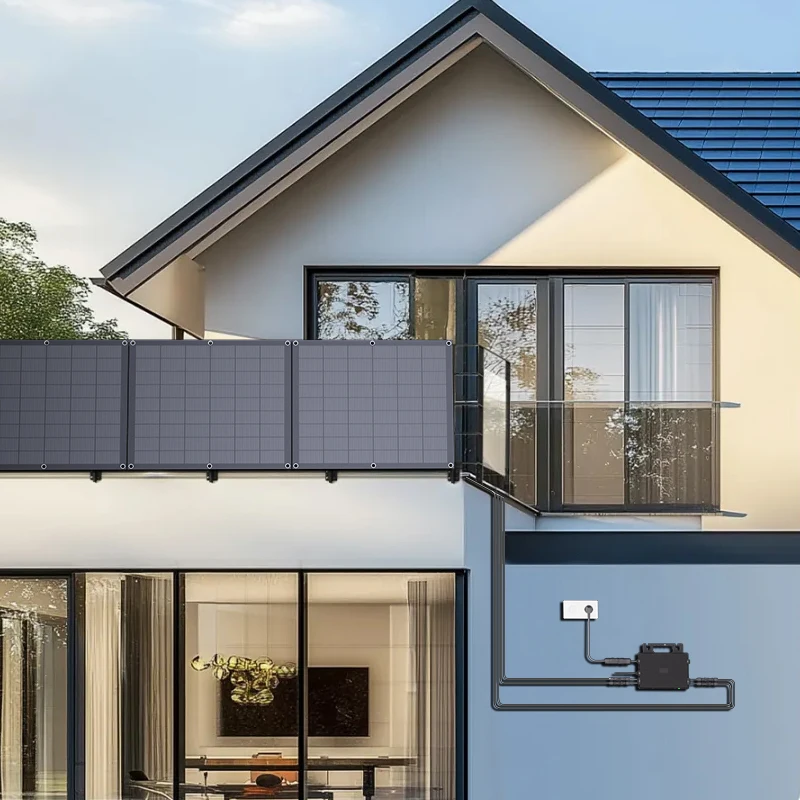

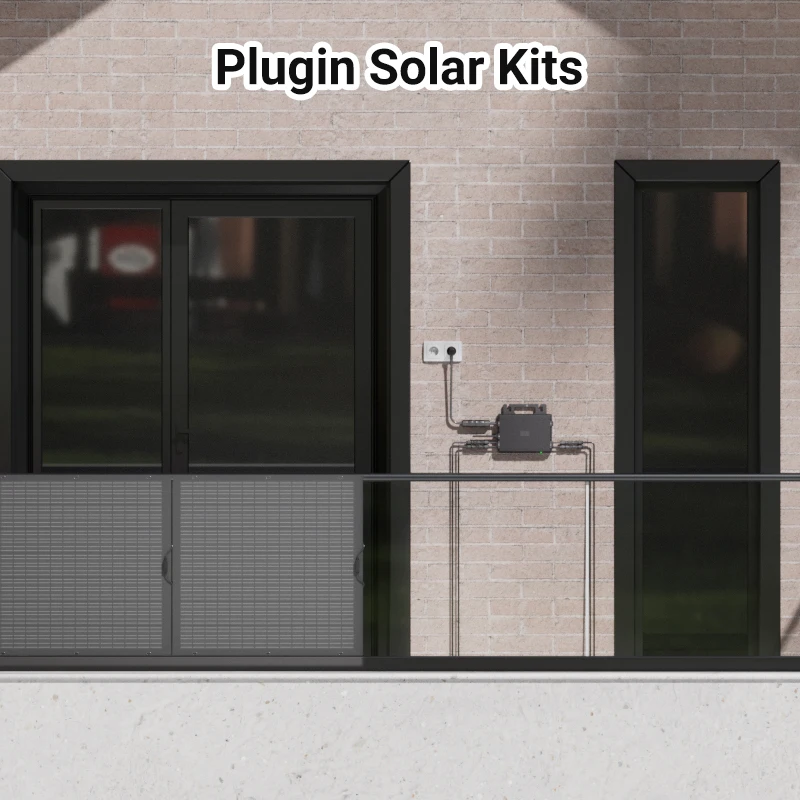

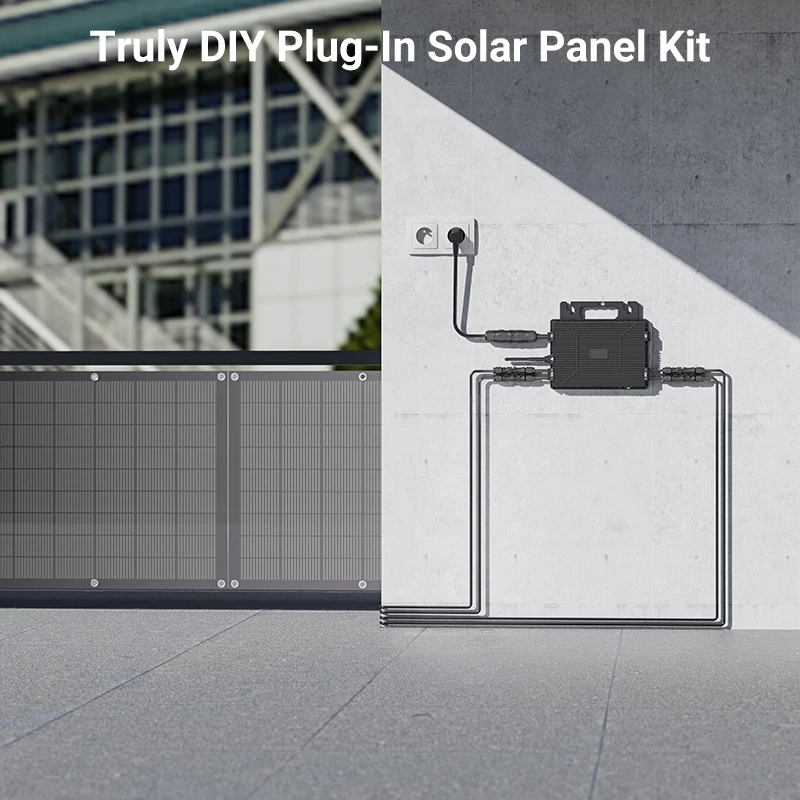

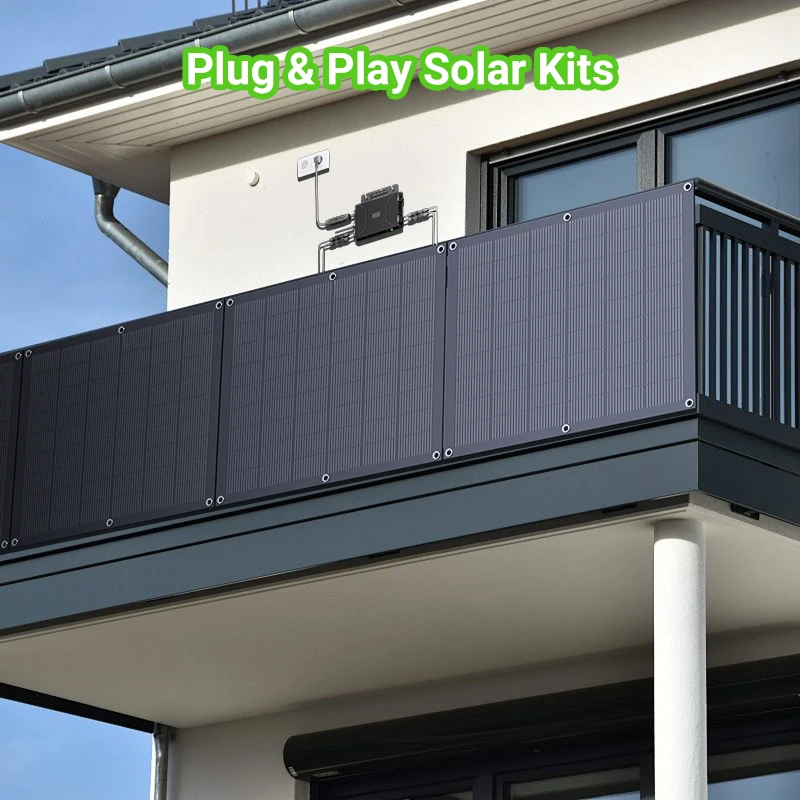

⚡ 800W Balcony Solar Power System

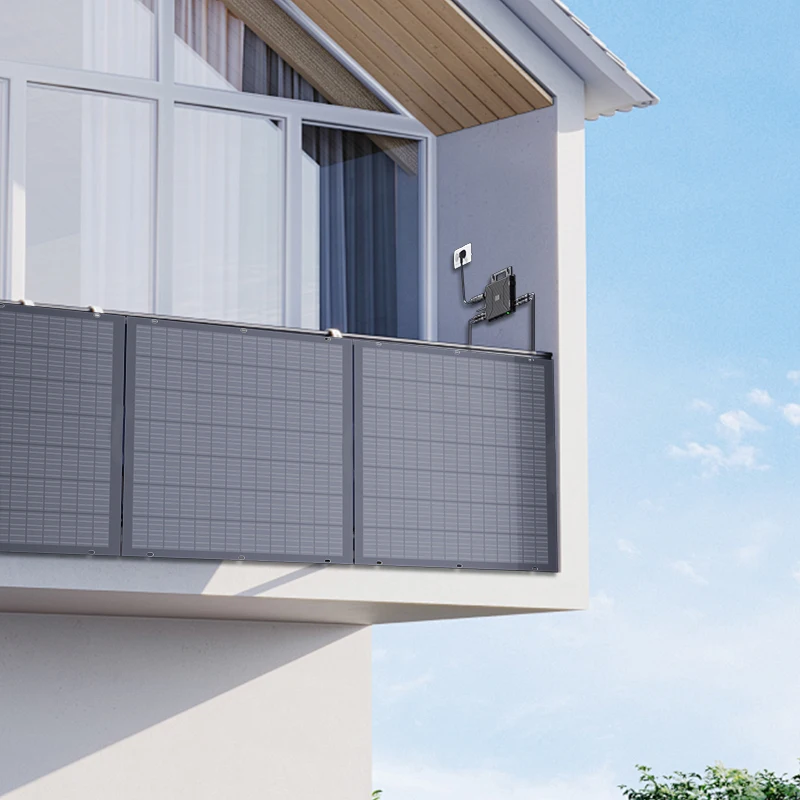

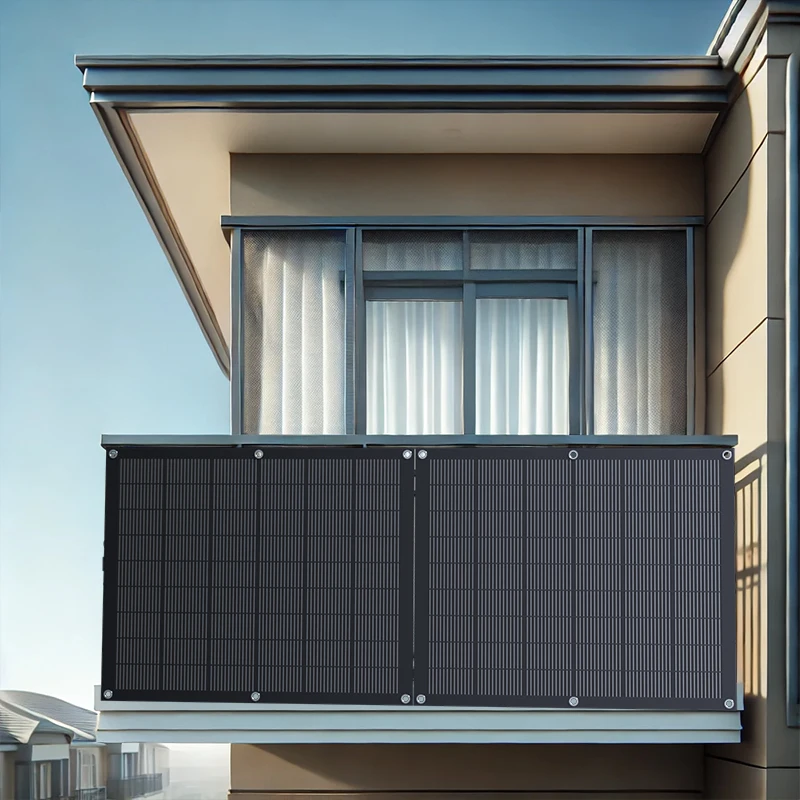

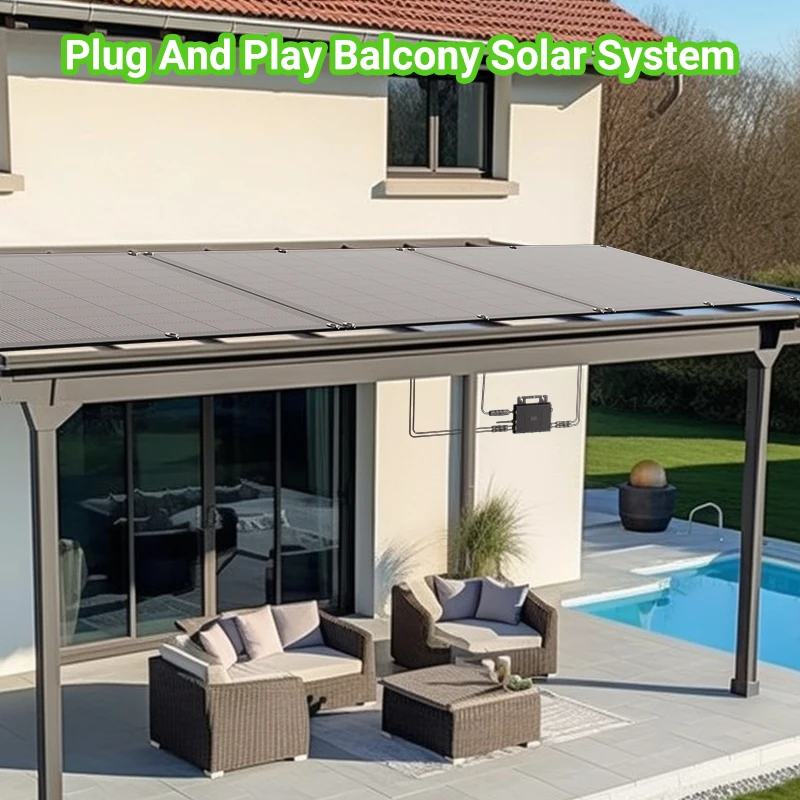

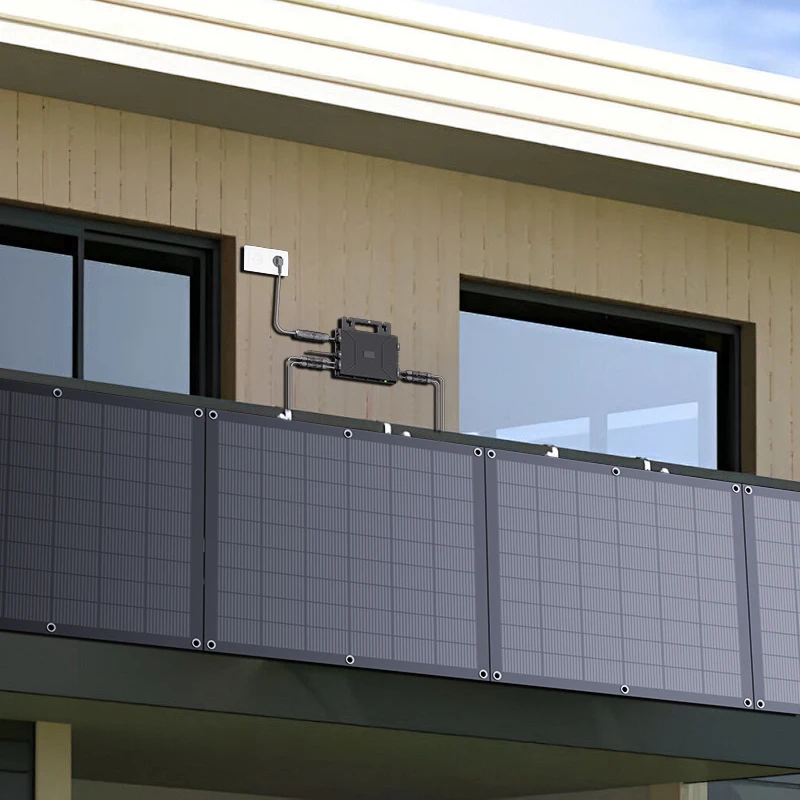

Complete 800W plug & play balcony PV system, ideal for apartments, balconies, terraces, and small households to reduce electricity bills.

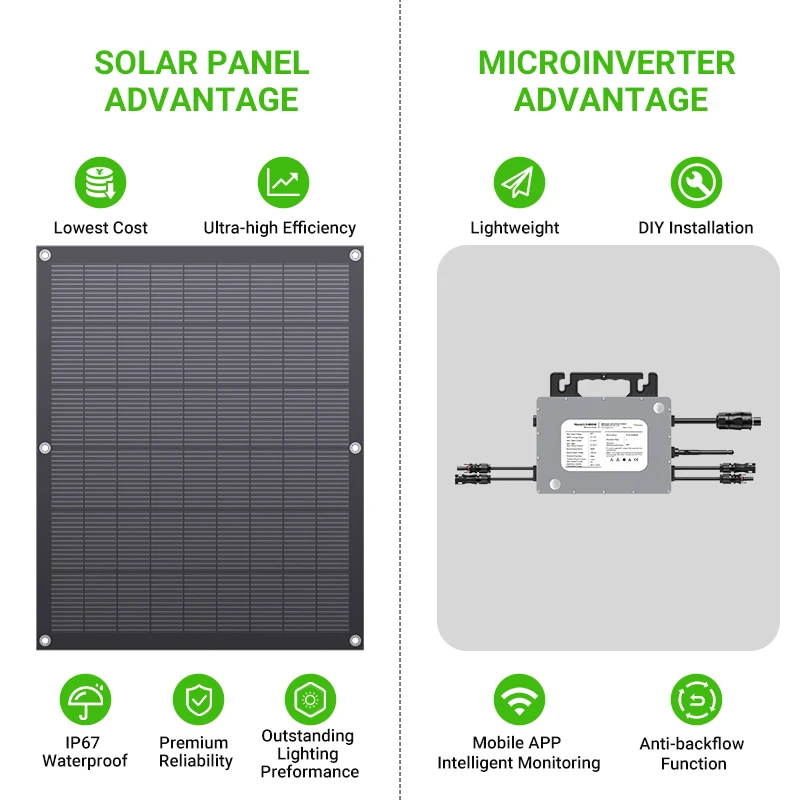

🌞 High-Efficiency Flexible Solar Panels
Equipped with 4×200W flexible PV modules, ≥23.5% conversion efficiency, lightweight and ultra-thin design, suitable for curved or limited spaces.

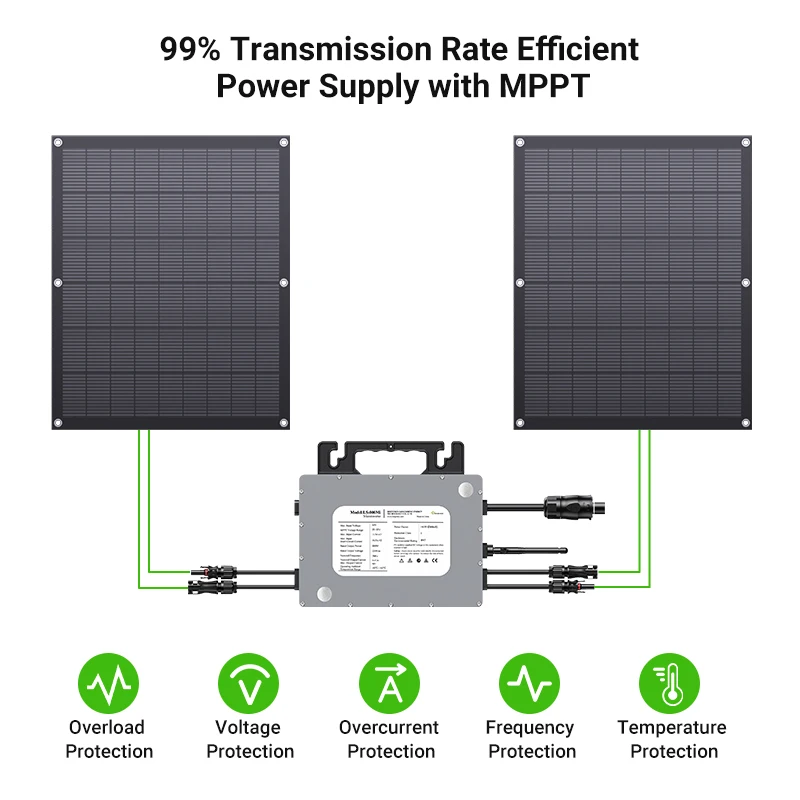

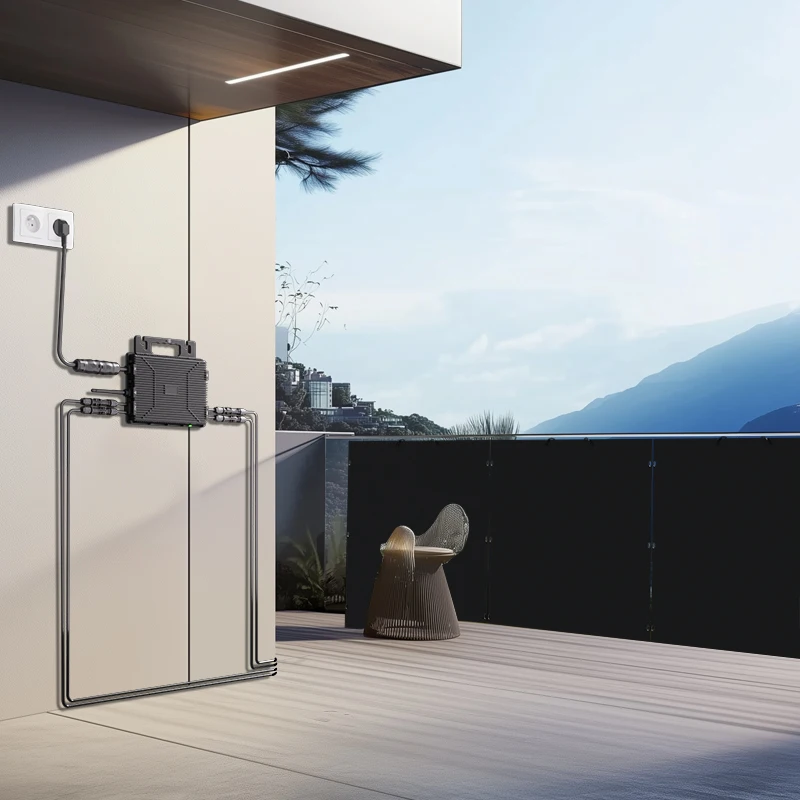

🔌 Smart 800W Micro Inverter with Dual MPPT
Built-in 2 MPPT channels ensure maximum power tracking and stable output under different sunlight conditions.

📱 WiFi Monitoring via APP
Real-time power generation monitoring through WiFi connection. Easy setup and intelligent energy management via mobile APP.

🛡️ Safe, Certified & Weatherproof
IP67 waterproof protection, certified with CE, IEC, VDE standards, ensuring safe operation and long-term outdoor use.

✅ Key Specifications

PV System Power: 800W
Solar Panel Power: 200W × 4
Solar Panel Type: Flexible Solar Panel

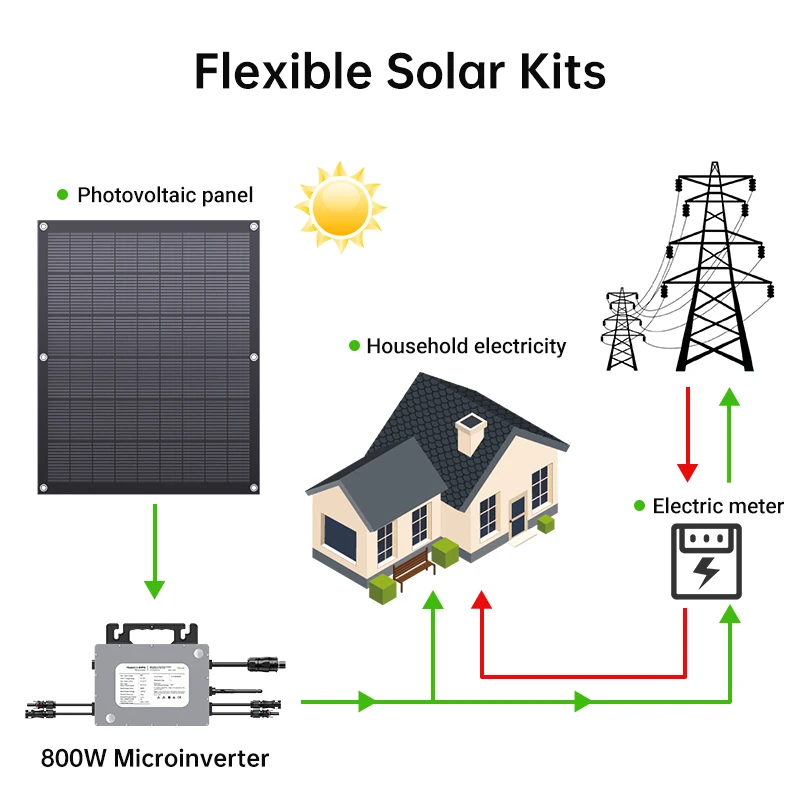

Inverter Type: Grid-Tied Micro Inverter
MPPT: 2 MPPT
Efficiency: ≥23.5% (Panel) / 96% (Inverter)
Output Voltage: AC 230V
Frequency: 50Hz
Communication: WiFi
Waterproof Level: IP67
Certification: CE, IEC, RoHS, VDE
Application: Balcony / Apartment / Home / Terrace
Battery Support: Optional

▶PV MODULE SPECIFICATIONS

• Rated Power: 200 W

• Open Circuit Voltage (Voc): 18.36 V

• Short Circuit Current (Isc): 13.51 A

• Voltage at Max. Power (Vm): 15.66 V

• Current at Max. Power (Im): 12.78 A

• Maximum Series Fuse: 15 A

• Dimensions: 1160 × 940 × 2.5 mm

• Weight: 3.98 kg

• Cable & Connector: 2.5 mm² cable, 90 cm

• Conversion Efficiency: ≥ 23.5%

• Protection Rating: IP67

• Certifications: CE, IEC, RoHS

▶MICRO INVERTER SPECIFICATIONS

• Rated Power: 800 W

• Max. Input Voltage: 60 V

• Max. Input Current: 13.5 A × 2

• MPPT Voltage Range: 25–55 V

• Max. DC Short-Circuit Current: 16.5 A × 2

• Number of MPPTs: 2

• Output Voltage Range (V): 184–253

• Max. Output Current: 4 A

• Rated Frequency / Range: 50 Hz / 45–55 Hz

• Peak Efficiency: 96%

• Dimensions (W × H × D): 260 × 225 × 32 mm

• Weight: 2.9 kg

• Certifications: IEC 62109-1, IEC 62109-2:1, IEC 61000-6-1, IEC 61000-6-3, VDE 4105, VRF 2019, NEN-EN 50549-1:2019, PN-EN 50549-1:2019

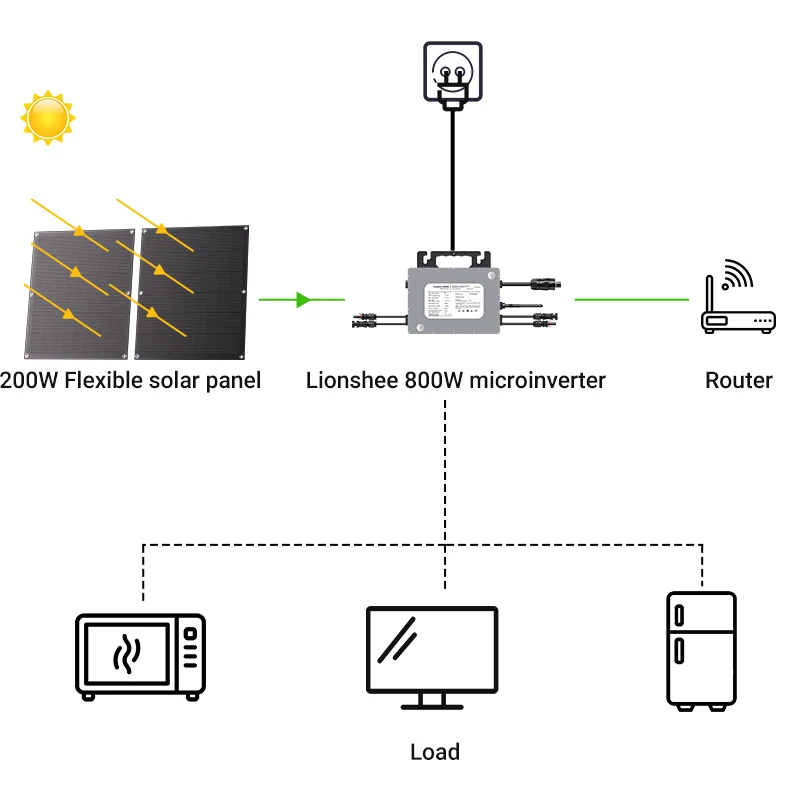

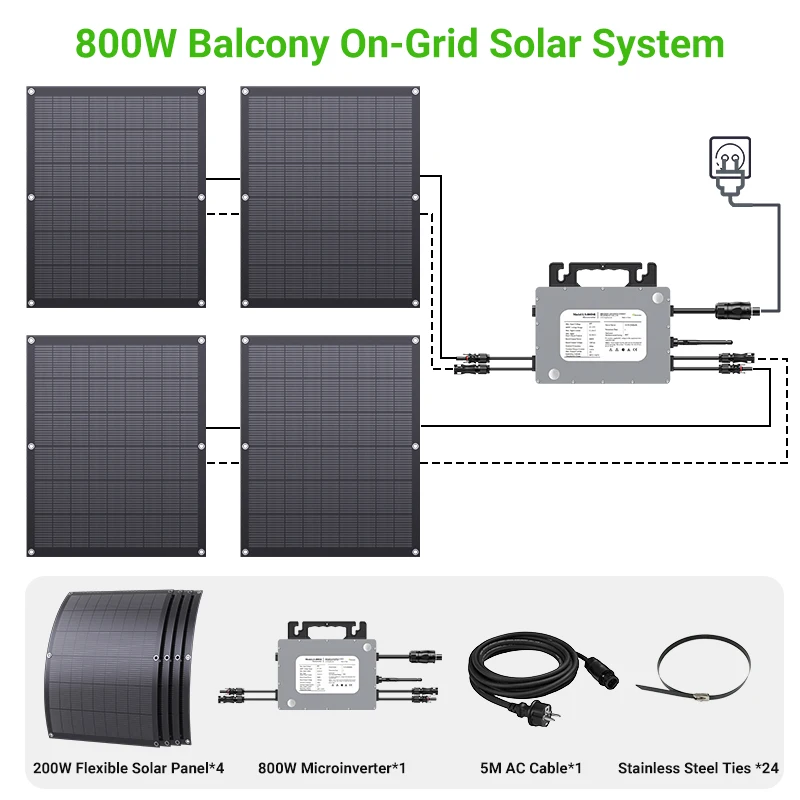

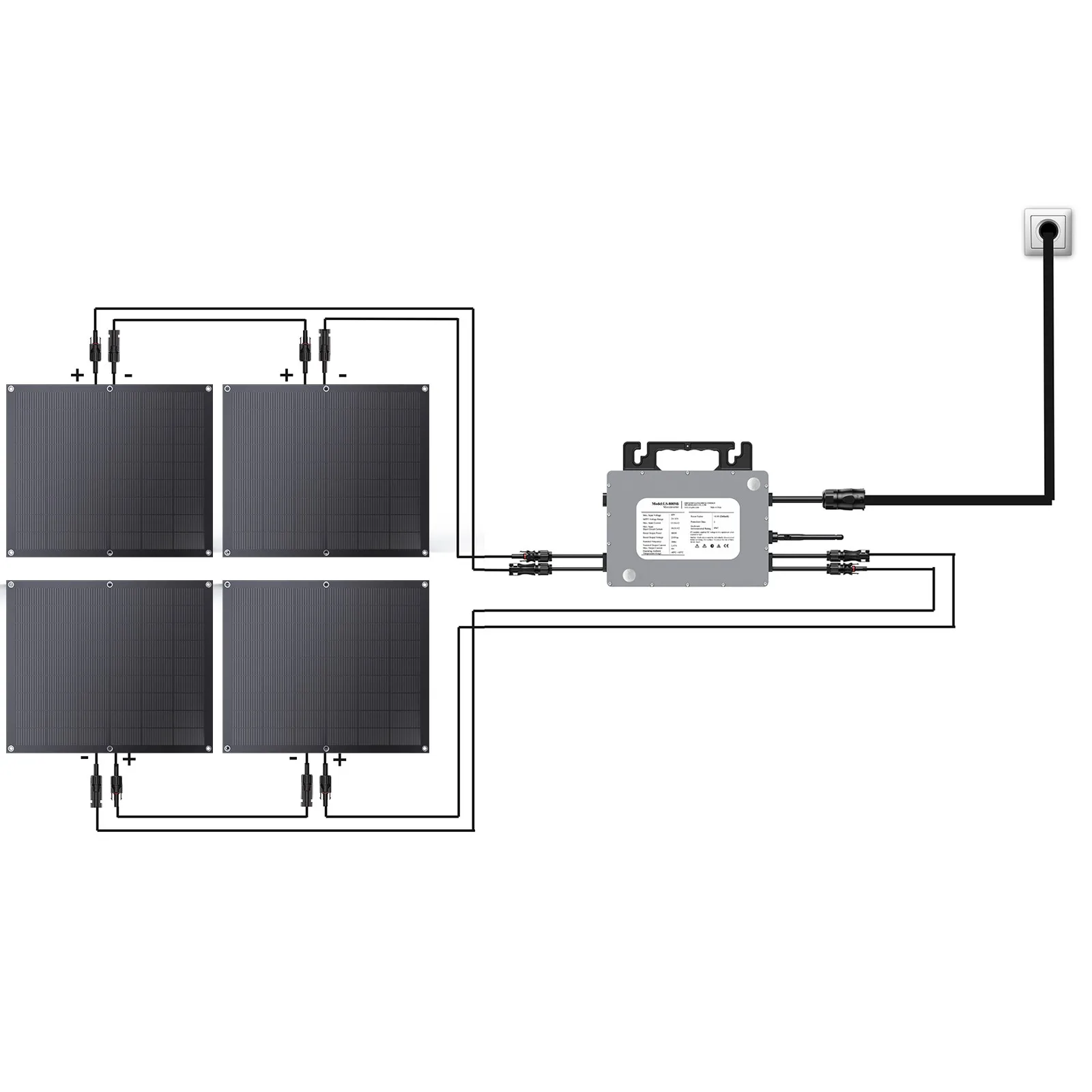

▶SYSTEM CONFIGURATION

• Number of Modules: 4

• Number of Inverters: 1

• Number of Inputs: 2

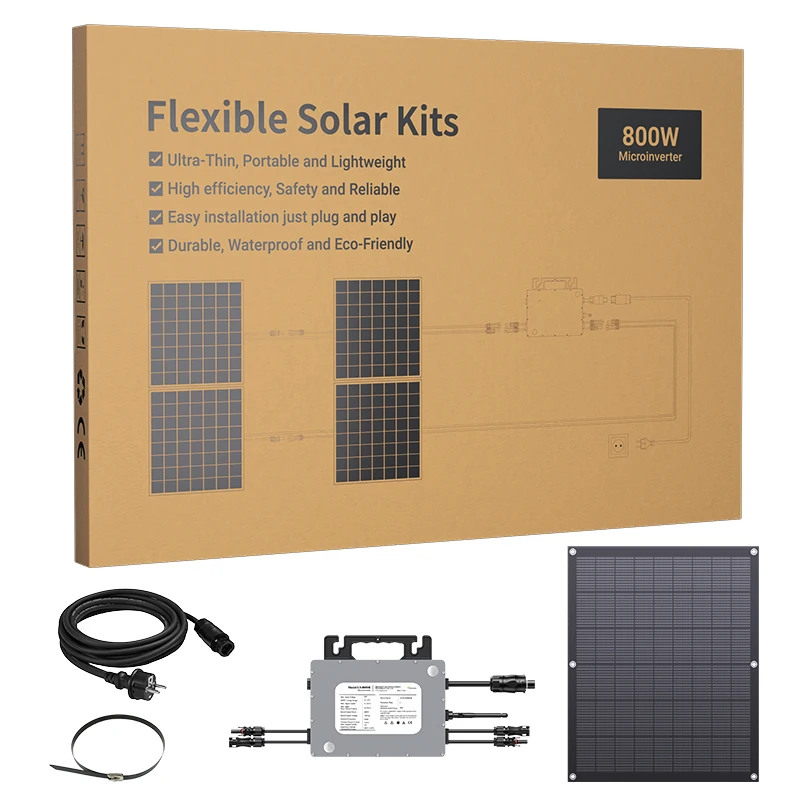

▶PACKAGING SPECIFICATIONS

• Dimensions (W × H × D): 1445 × 985 × 80 mm

• Weight: 22.6 kg

▶SYSTEM FEATURES

• Communication: WiFi

• Battery: Optional

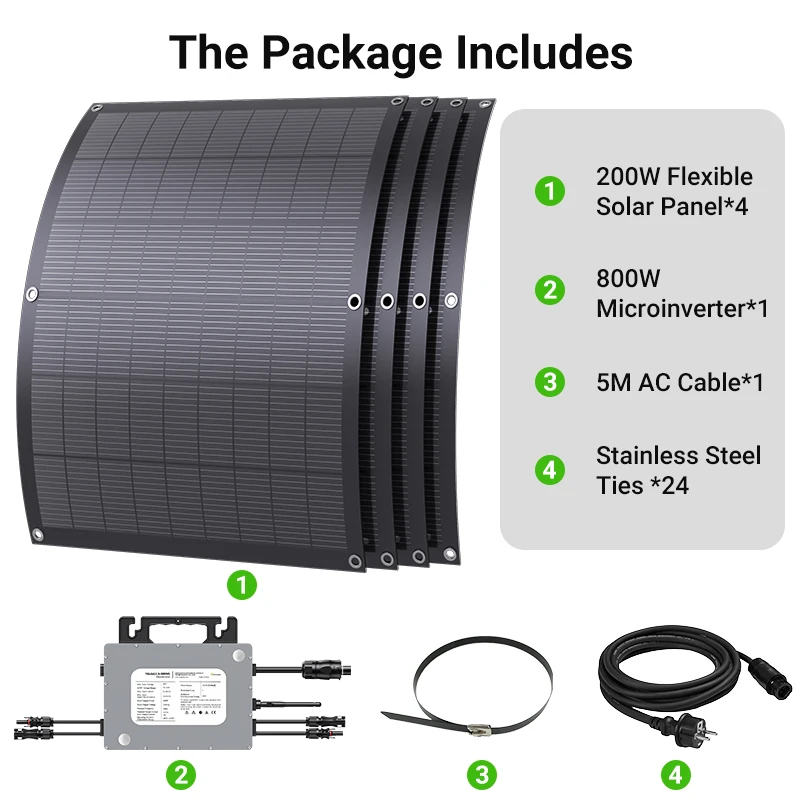

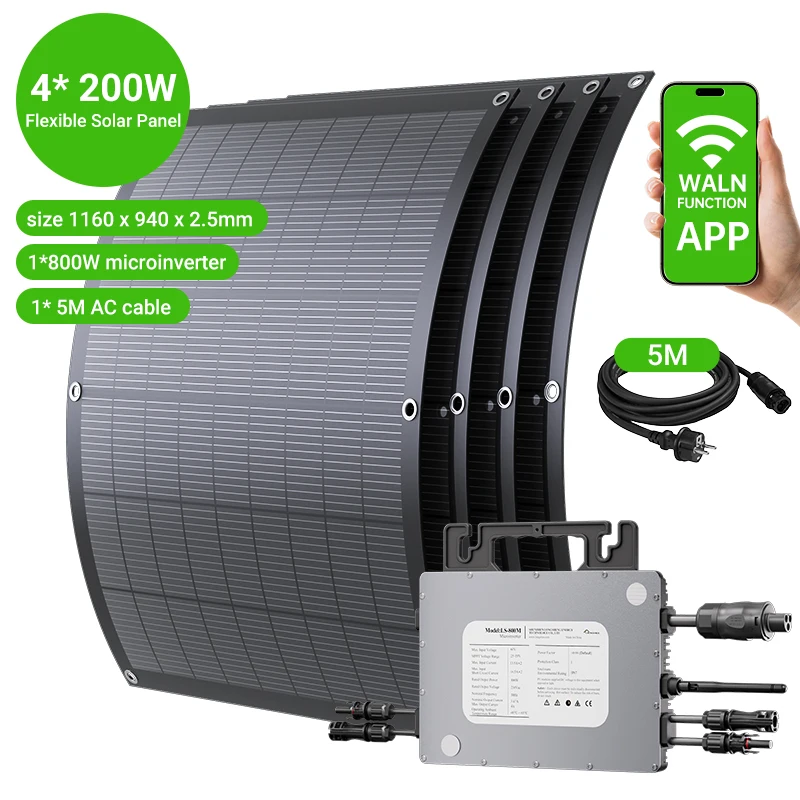

▶PACKAGE CONTENTS

• 200W Flexible Solar Panel × 4

• 800W Micro Inverter × 1

• 5 m AC Cable × 1

• 39 cm Metal Cable Ties × 24

✅ Package Contents

• 200W Flexible Solar Panel × 4

• 800W Micro Inverter × 1

• 5m AC Cable × 1

• 39cm Metal Cable Ties × 24
