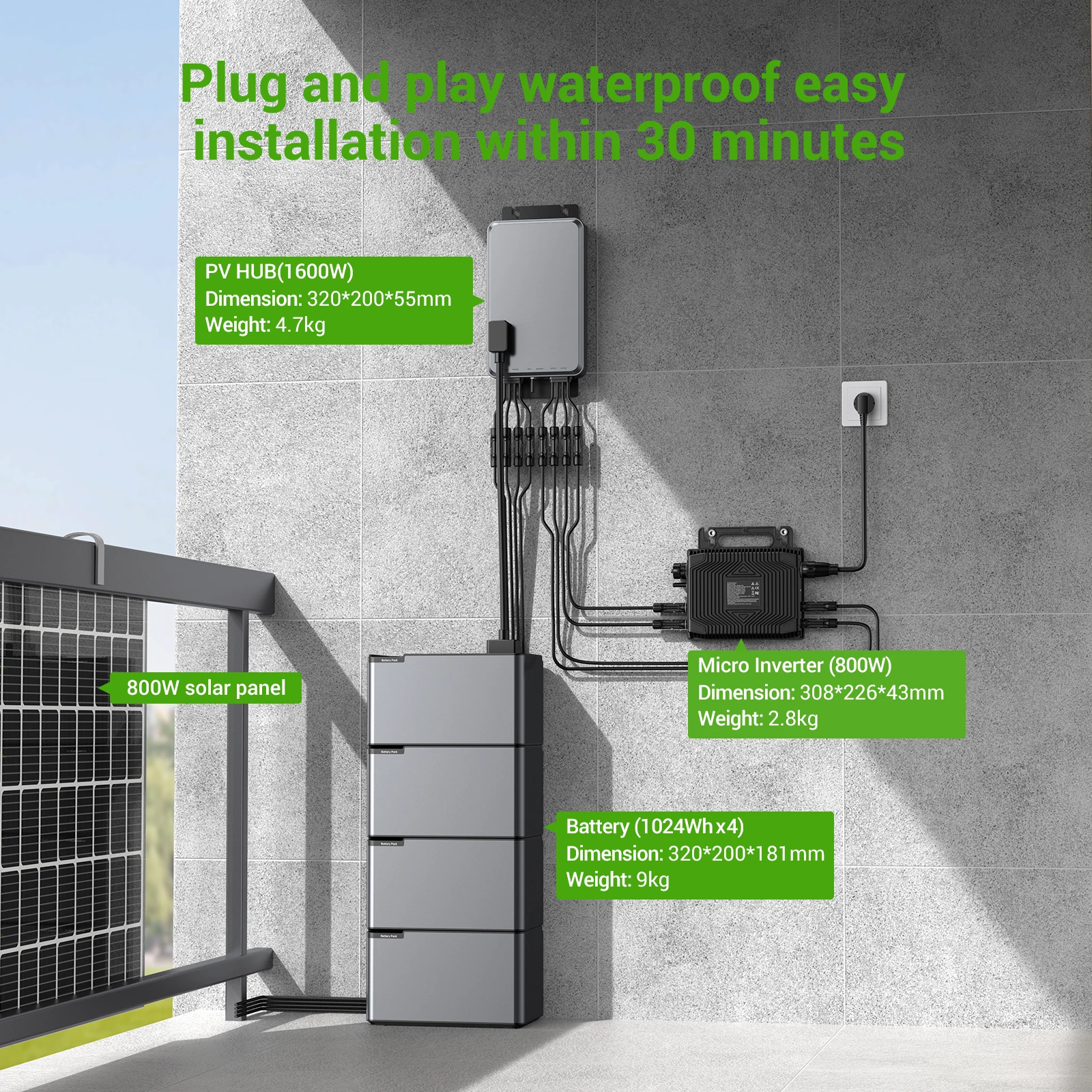

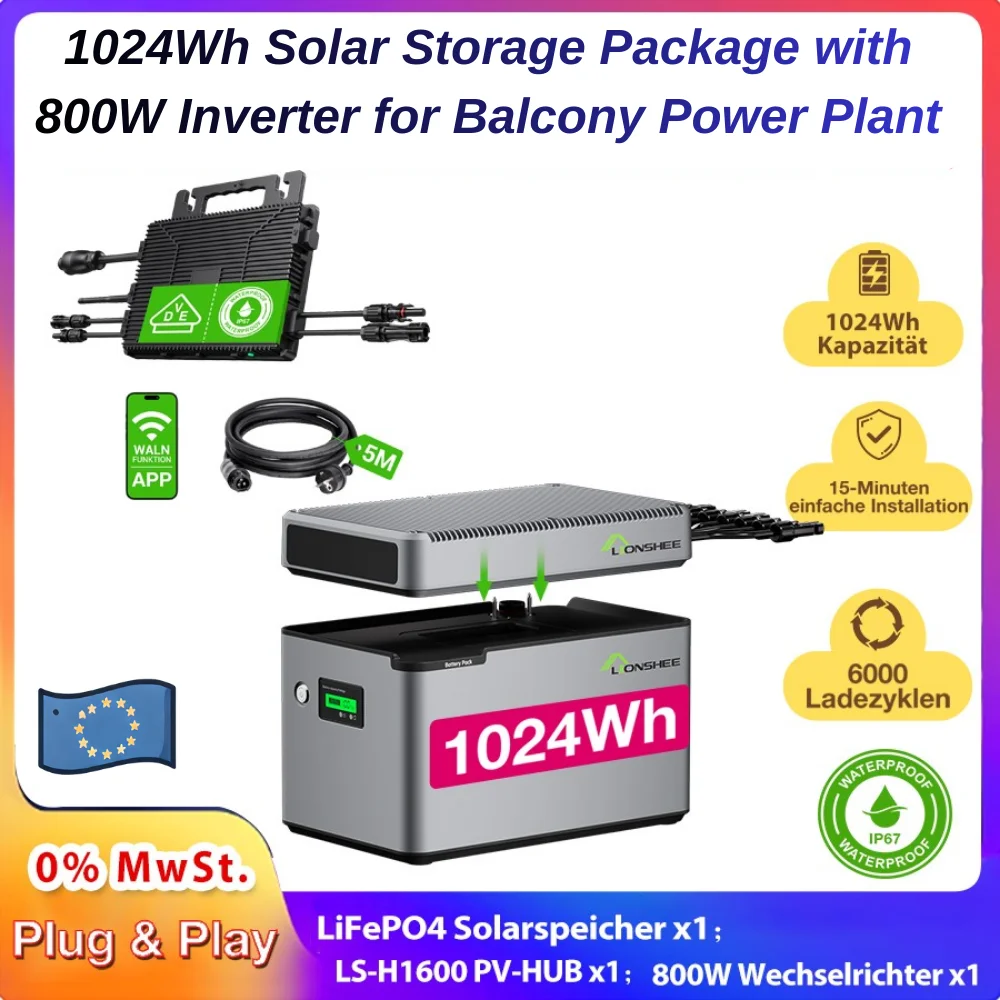

1024Wh Balcony Solar Storage System Kit with 800W Micro Inverter, 1600W PV HUB MPPT, Plug & Play Balkonkraftwerk Battery Storage with WiFi APP

Product Description

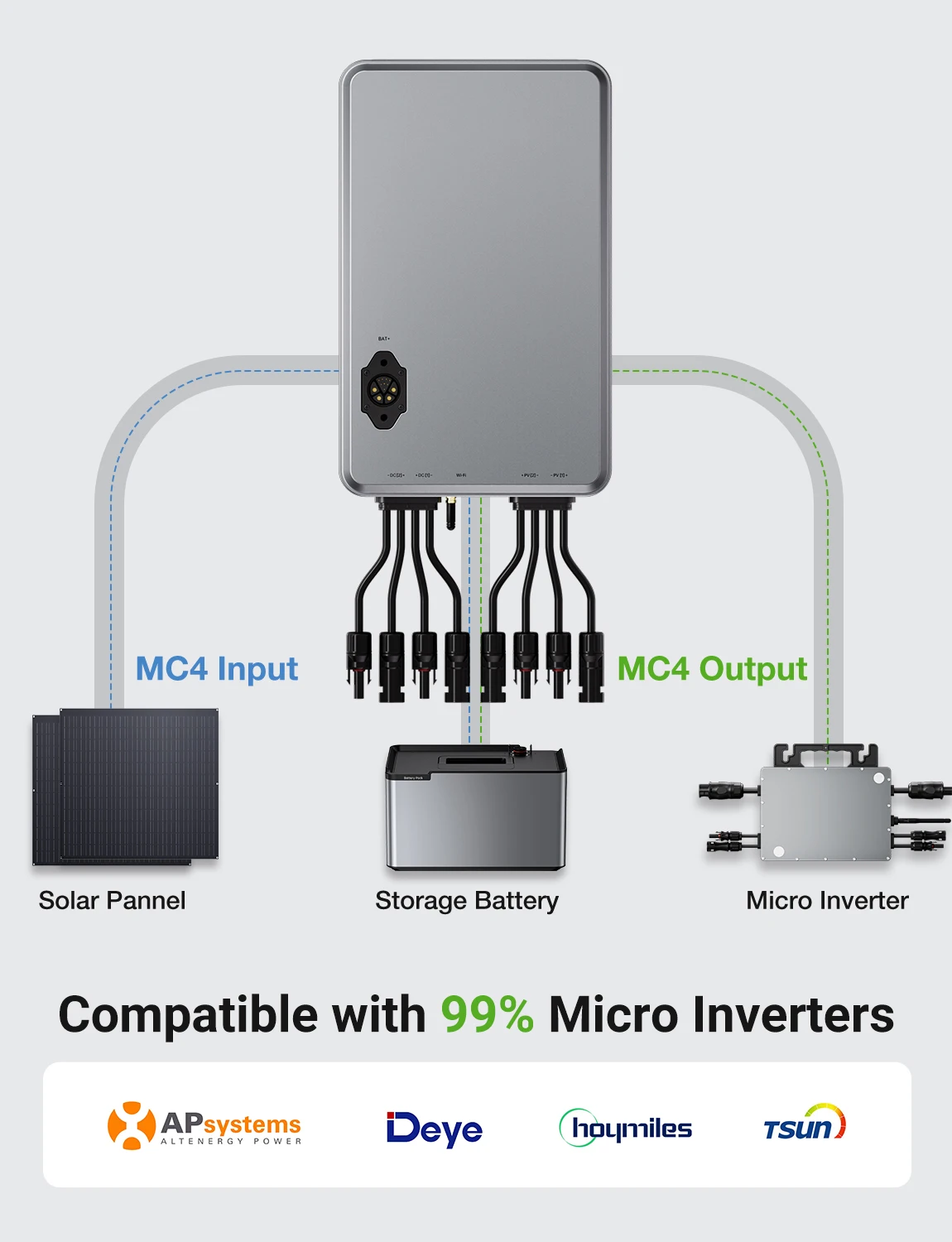

1600W PV HUB

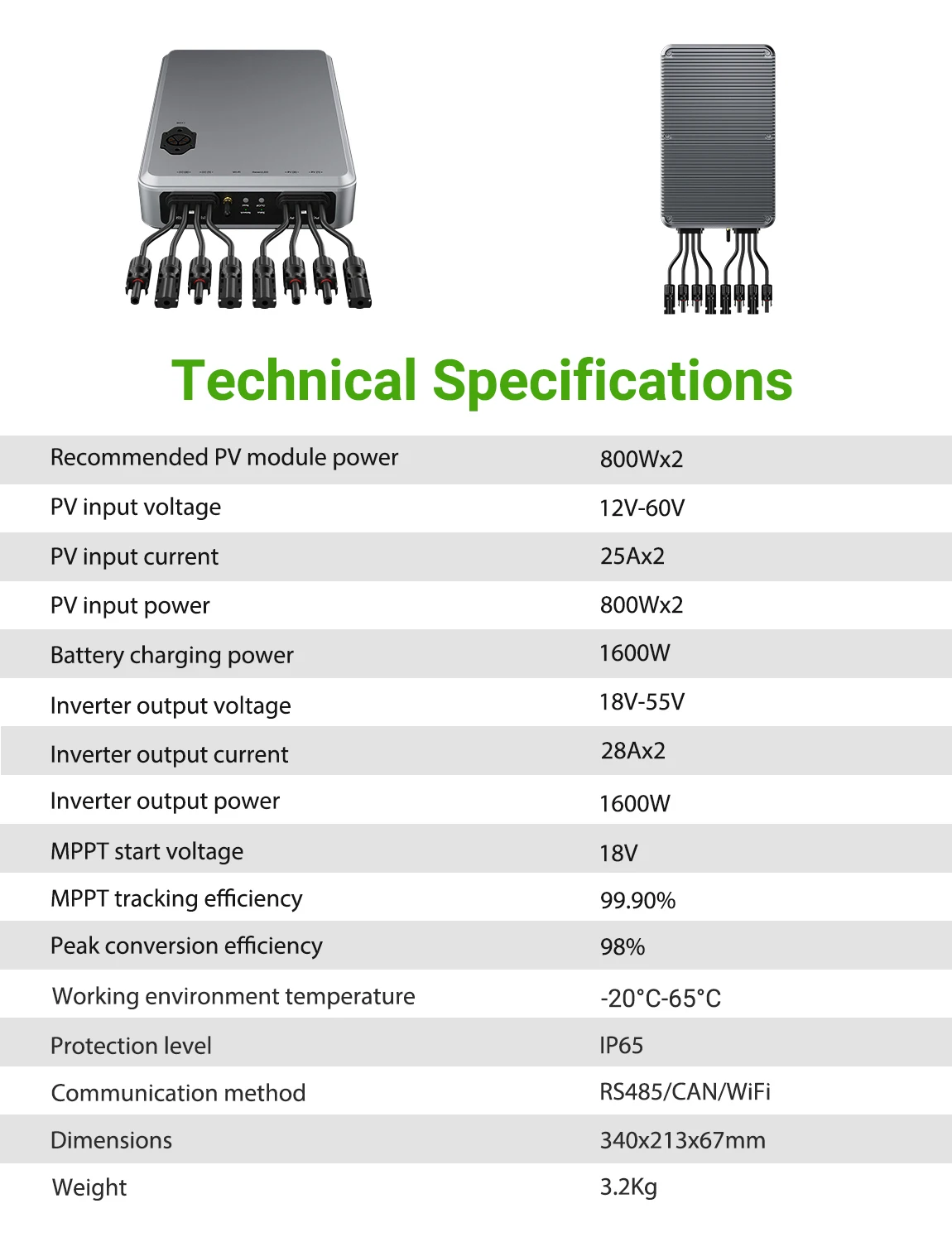

Technical Specifications (1600W PV HUB)

Model: LS-H1600
Recommended PV Module Power: 800W × 2
PV Input Voltage: 12V – 60V
PV Input Current: 25A × 2
PV Input Power: 800W × 2
Battery Charging Power: 1600W

Inverter Output Voltage: 18V – 55V
Inverter Output Current: 28A × 2
Inverter Output Power: 1600W

MPPT Start Voltage: 18V
MPPT Tracking Efficiency: 99.90%
Peak Conversion Efficiency: 98%

Operating Temperature: -20℃ ~ 65℃
Protection Rating: IP65

Communication: RS485 / CAN / WiFi

Dimensions: 340 × 213 × 67 mm
Weight: 3.2 kg

Standards:

• 2015/863/EU (ROHS)

• EN 62509:2011

• ETSI EN 301 489-17 V3.2.4 (2020-09)

• ETSI EN 300 328 V2.2.2 (2019-07)

• ETSI EN 300 440 V2.2.1 (2018-07)

1024Wh Solar Storage Battery

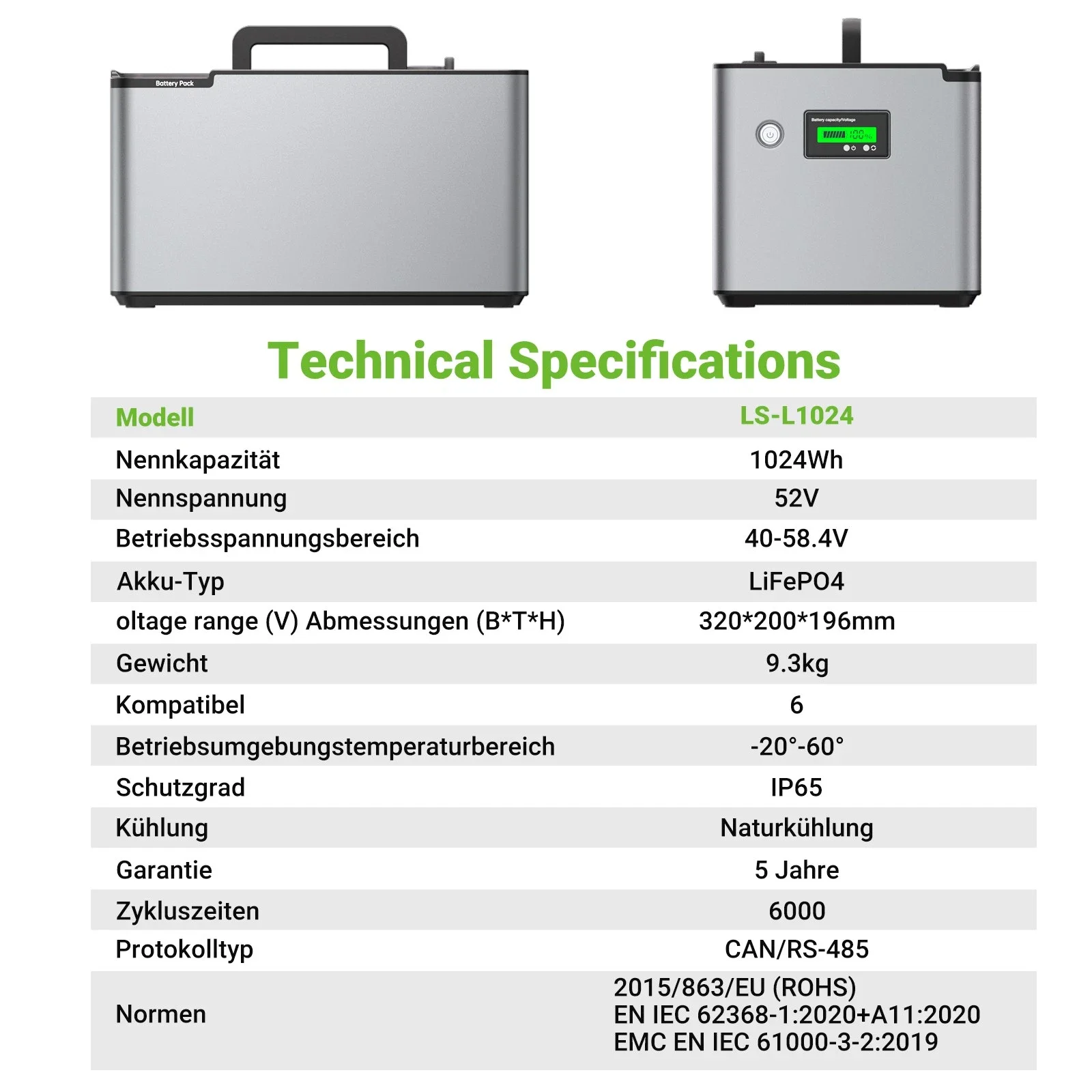

Technical Specifications (1024Wh Solar Storage)

Model: LS-L1024
Nominal Capacity: 1024Wh
Nominal Voltage: 52V
Operating Voltage Range: 40V – 58.4V

Battery Type: LiFePO4

Dimensions (W × D × H): 320 × 200 × 196 mm
Weight: 9.3 kg

Compatibility: 4 units

Operating Temperature: -20℃ ~ 60℃

Protection Rating: IP65
Cooling: Natural Cooling

Cycle Life: 6000 cycles
Warranty: 5 Years

Communication Protocol: CAN / RS-485

Standards:

• 2015/863/EU (ROHS)

• EN IEC 62368-1:2020 + A11:2020

• EMC EN IEC 61000-3-2:2019

800W Micro Inverter

Model: TM-L800Mi

DC Input Data

Recommended PV Module Power: 280W – 550W
Start Voltage: 20V
MPPT Voltage Range: 25V – 55V
Max Input Voltage: 60V
Max Input Current: 13.5A × 2
Max DC Short Circuit Current: 16.5A × 2
Number of MPPTs: 2

AC Output Data

Rated Output Power: 800W
Nominal Output Voltage: 230V
Extended Output Voltage Range: 184 – 253V
Max Output Current: 4A
Nominal Output Current: 3.47A

Nominal Frequency / Range: 50Hz / 45 – 55Hz
Power Factor: >0.99 (Standard)
Total Harmonic Distortion (THD): <3%
Max Units per Branch: 5

Efficiency

Peak Efficiency: 96.00%
CEC Efficiency: 95.50%
Static MPPT Efficiency: 99.50%
Night Power Consumption: <50mW

Mechanical Data

Operating Temperature: -40℃ ~ +65℃
Dimensions (W × H × D): 260 × 225 × 32 mm
Weight: 2.9 kg

Enclosure Rating: IP67
Cooling: Natural Convection (Fanless)
Isolation Type: High-Frequency Transformer

Monitoring & Communication

Communication: WiFi
Energy Management Platform: Solarman Online Platform

Certifications & Warranty

Certifications:
IEC62109-1
IEC62109-2
IEC61000-6
VDE4105
VFR2019
NEN-EN 50549-1:2019
PN-EN 50549-1:2019

Warranty: 10 Years

Package Contents

• LS-H1600 PV HUB × 1

• 1024Wh Solar Storage Battery × 1

• 800W Micro Inverter × 1

• 5m AC Cable × 1
