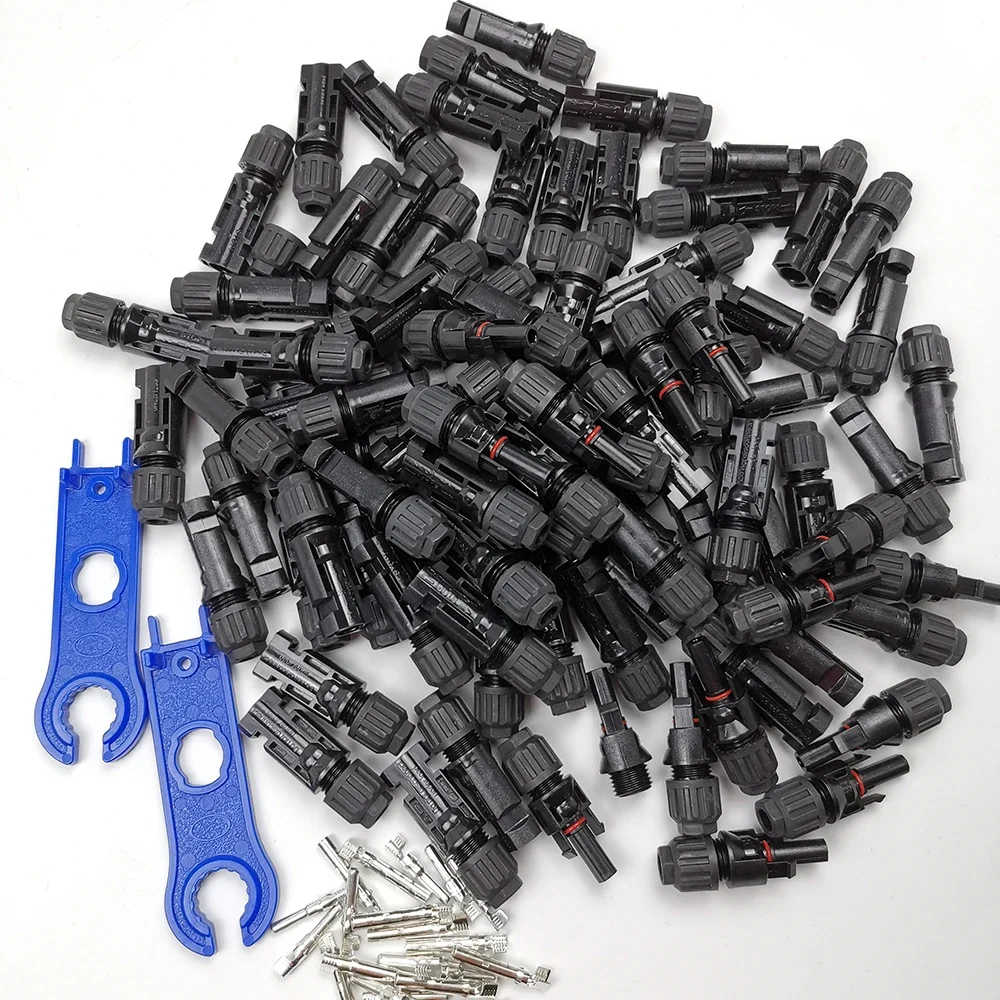

Connecteur solaire PV DC 30A 50A, 100/60/40/20/10 pièces, Kit de connecteurs de panneau Stecker pour câble PV/MC 2.5/4/6/10 mm2 1500VDC 1000VDC
Plage de prix : € 1,53 à € 92,09
| Poids | 0,350 kg |
|---|---|
| Dimensions | 22 × 15 × 5 cm |
| Nom de marque |
TAKORI |
| Tension |
1000V |
| Est-ce qu'il inclut la fonctionnalité sans fil ? |
Non |
| Origine |
CN (Origine) |
| Est-ce qu'il y a une batterie incluse ? |
Non |
| Produit chimique à haute préoccupation |
Aucun |
| Tension LVD UE |
Haute tension : supérieure à 50Vac ou 75Vdc |
| Numéro de Modèle |
Solar Connector |
| Certification |
CE |
| Voltage |
1000VDC, 1500VDC |
| Ampere |
30A 50A |
| Suitable cable |
2.5m㎡–6m㎡( include AWG13, AWG12, AWG11, AWG10 ) |
| Degree of waterproof |
IP67 |
| Choice |
yes |
| semi_Choice |
yes |
100/60/40/20/10 PCS Solar PV DC Connector 30A 50A Panel Stecker Connectors Kit for PV/MC Cable 2.5/4/6/10mm2 1500VDC 1000VDC
Description:
Feature:
-Compatible with PV cables with different insulation diameters
-It can be used in harsh environment
-With excellent aging resistance and UV endurance

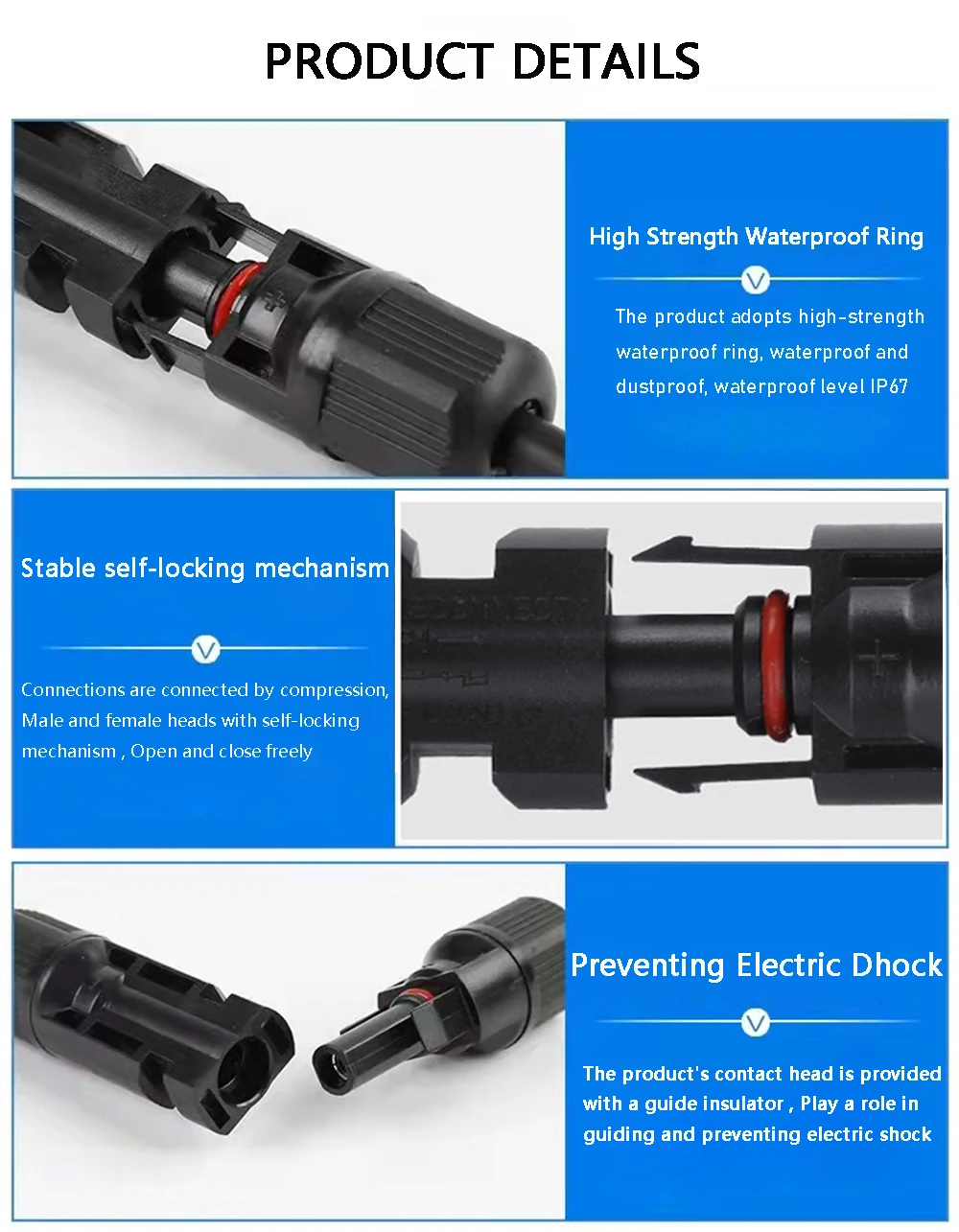

-Double seal rings for better waterproof effect
-Created seal, design of dust proof
-Load capability with big current and high voltage

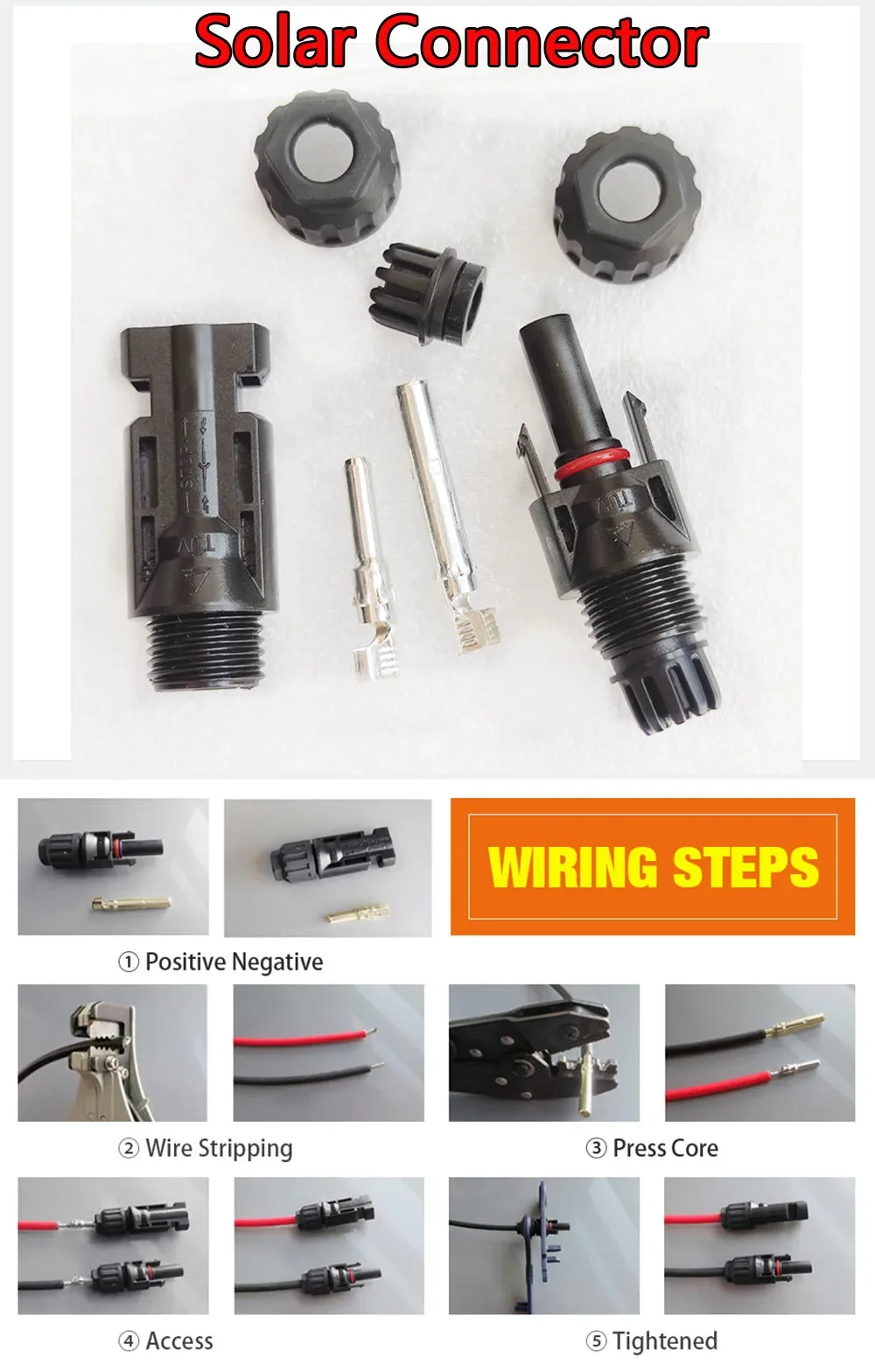

-Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
-Strong pulling force capability
-Resistance of extra high & low temperature and fireproof
-Lower contact resistance

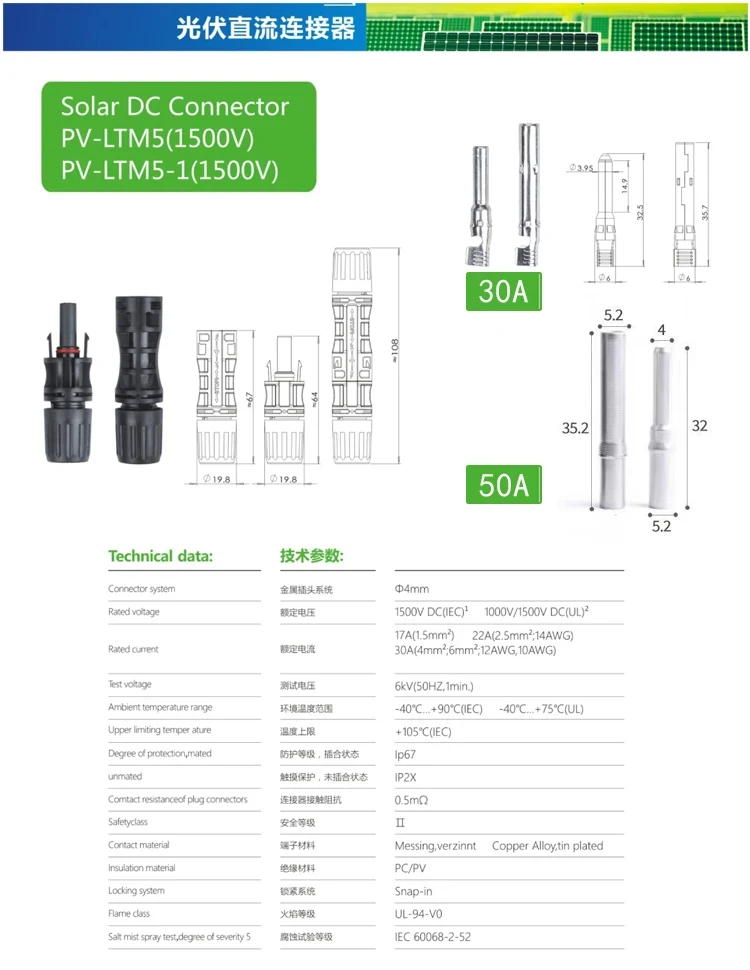

Technical parameters:
-Rated Current: 30A
-Rated voltage: 1000VDC
-Suitable cable: 2.5mm2, 4mm2, 6mm2(AWG14, AWG12, AWG10) -Contact resistance: ≤0.2mmΩ

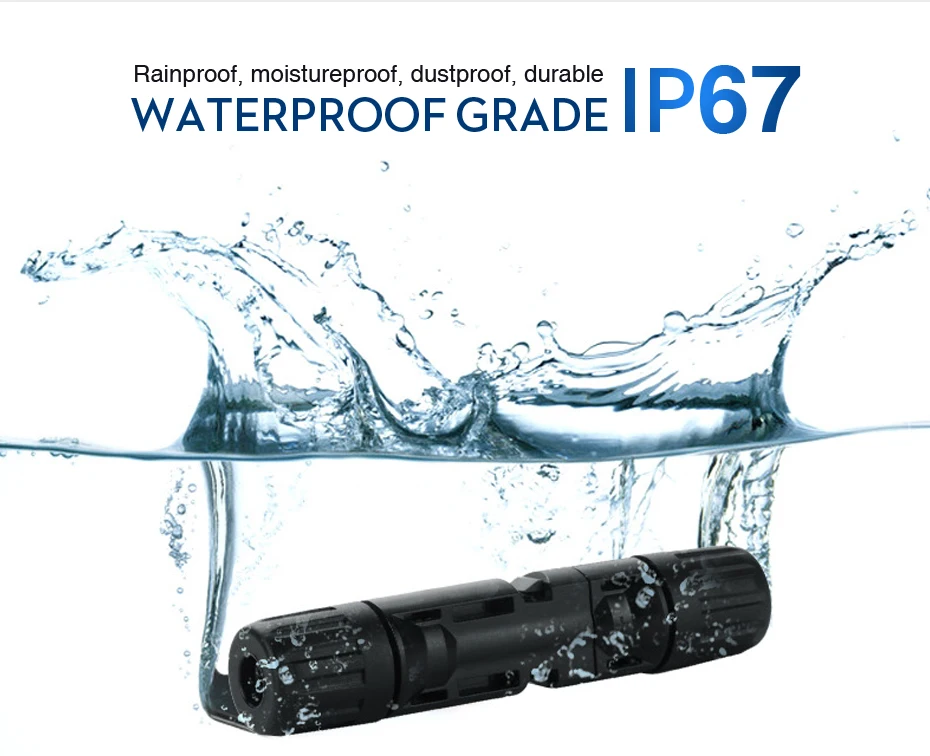

-Waterproof degree:IP67
-Safety Class: II
-Withdrawal force: ≥50N
-Pin dimension: 4.0mm dia.
-Insertion force: ≤50N

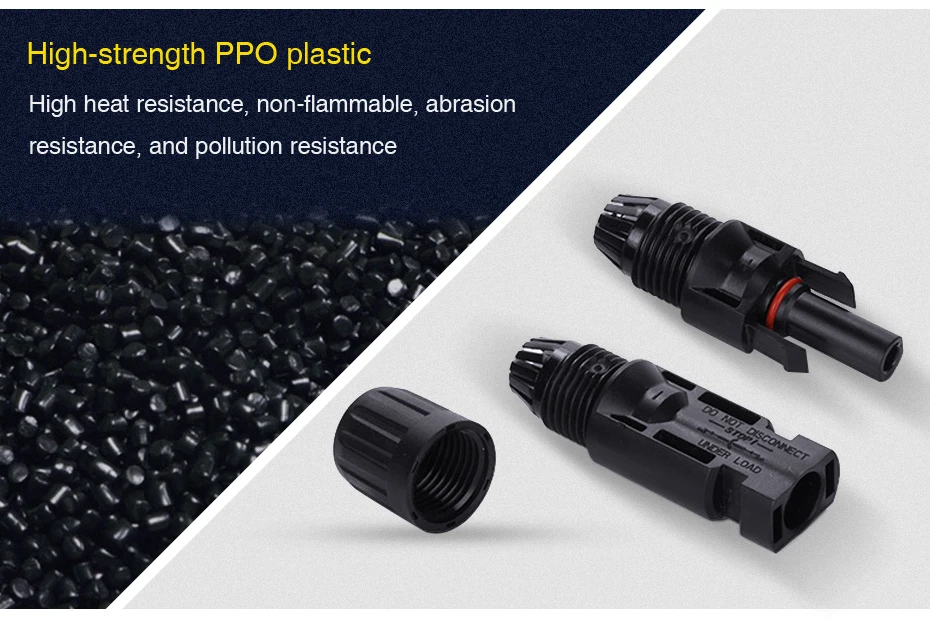

-Insulation material: PPO+PA
-Connecting system: crimping connection

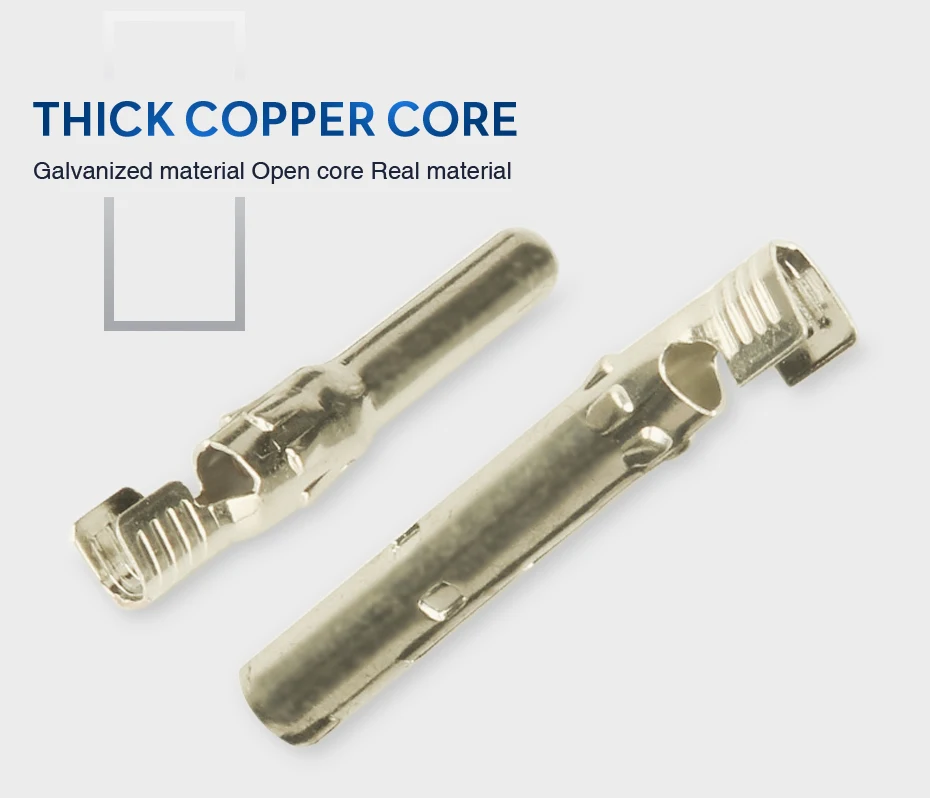

-Contact material: copper, tin plated
-Temperature range: -40 °C ~ +90 °C
-

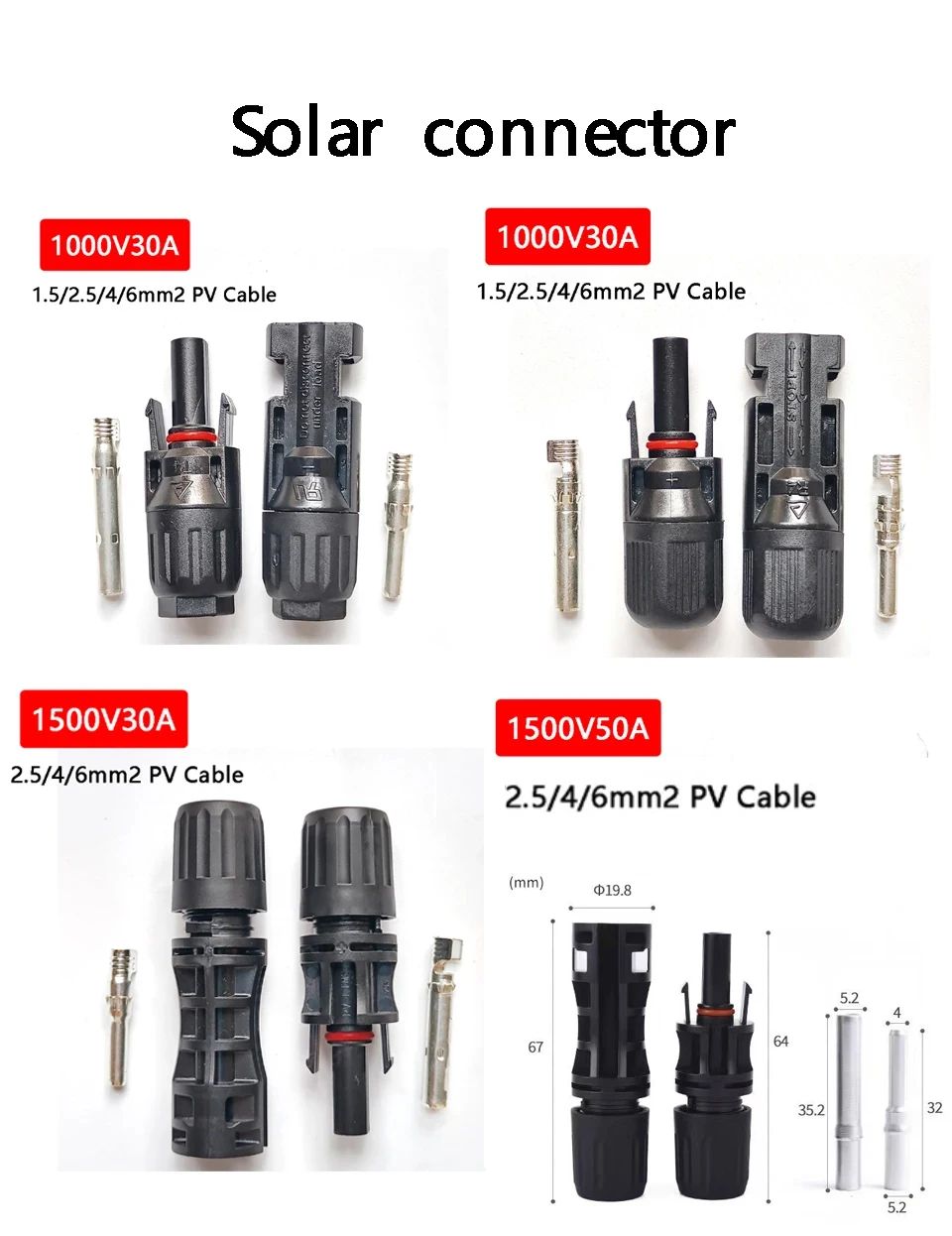

PV Connector 1500VDC 30A/50A

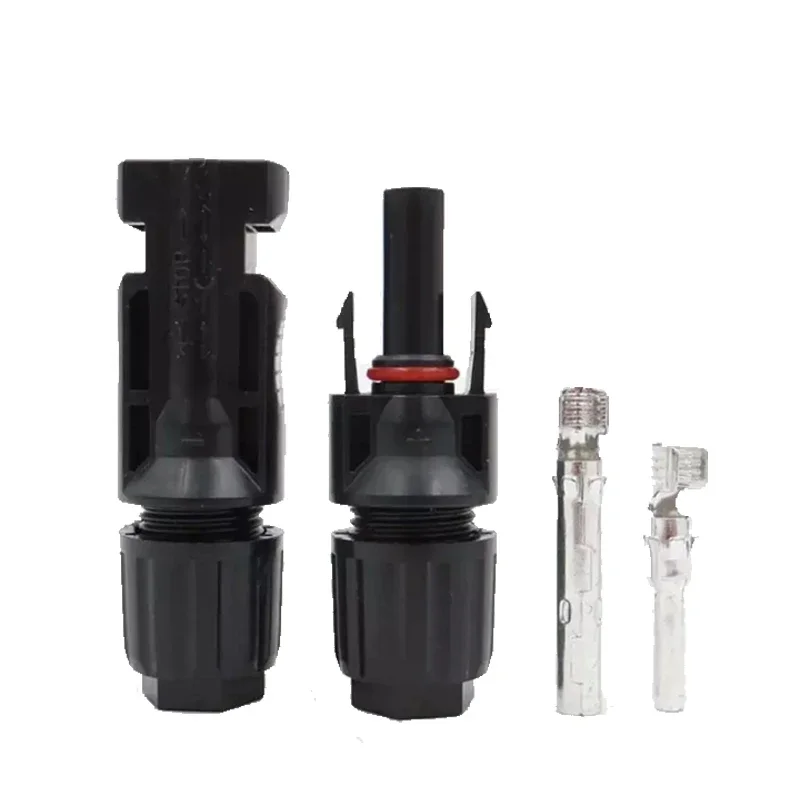

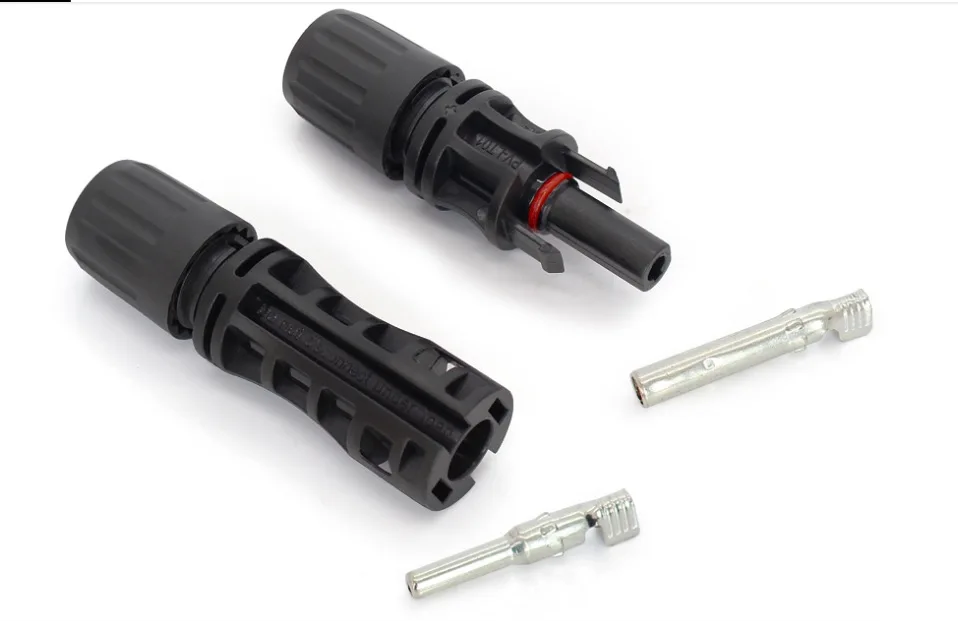

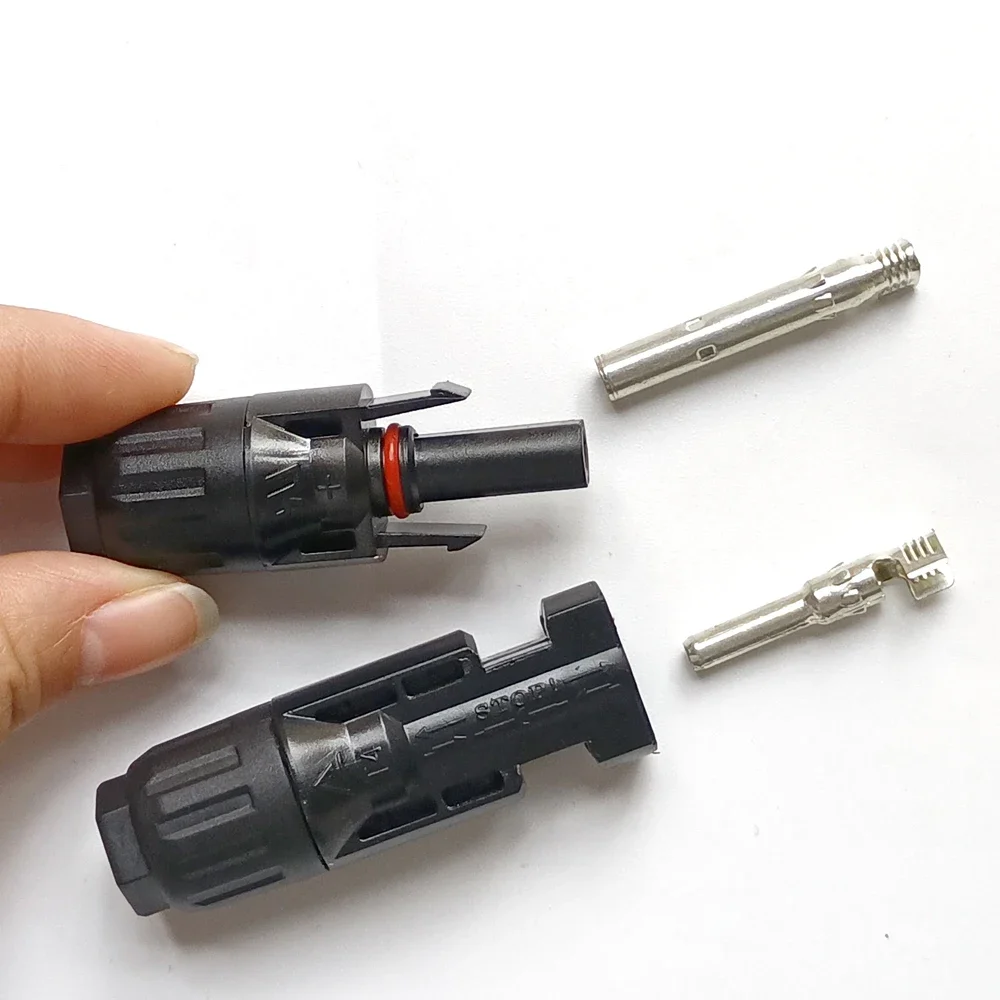

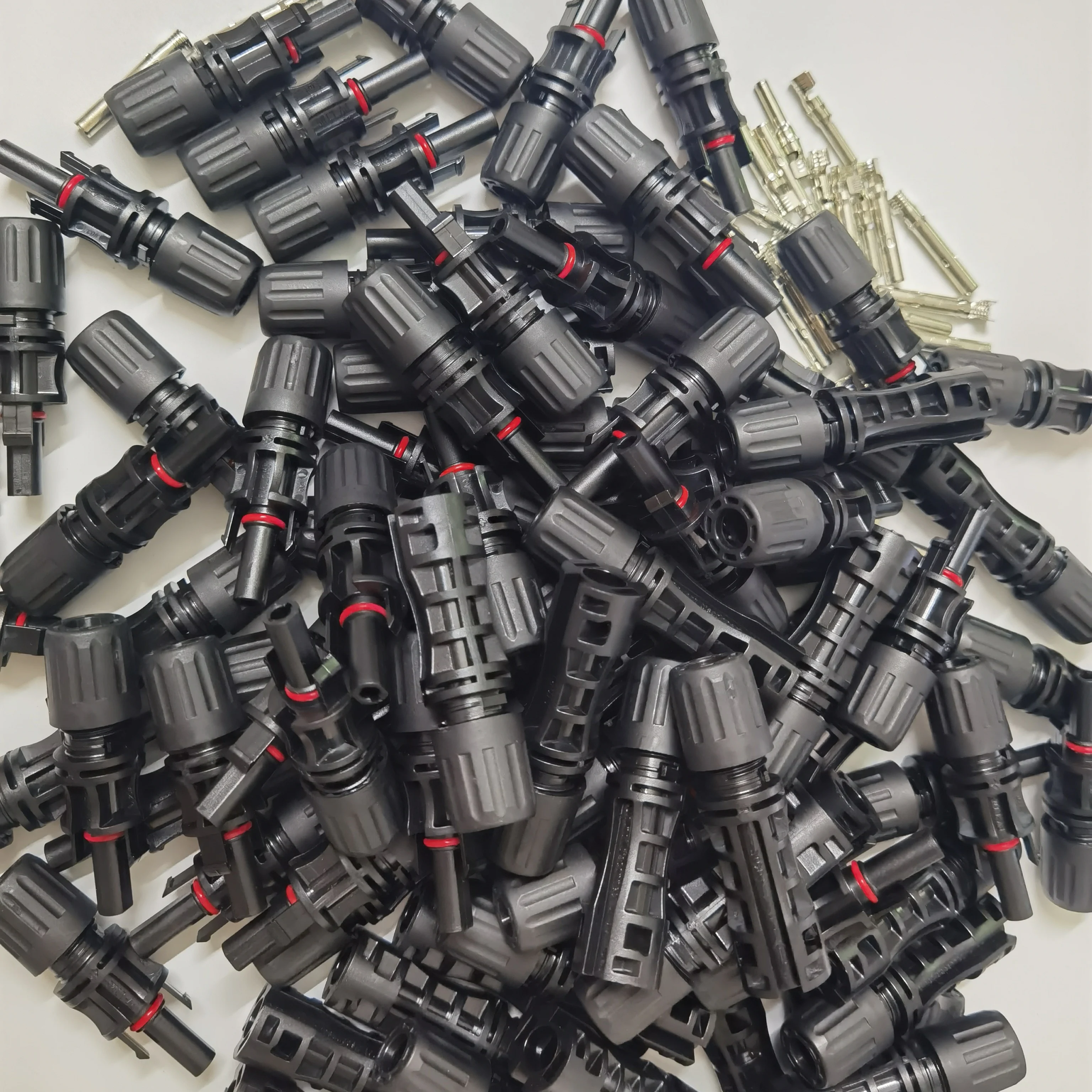

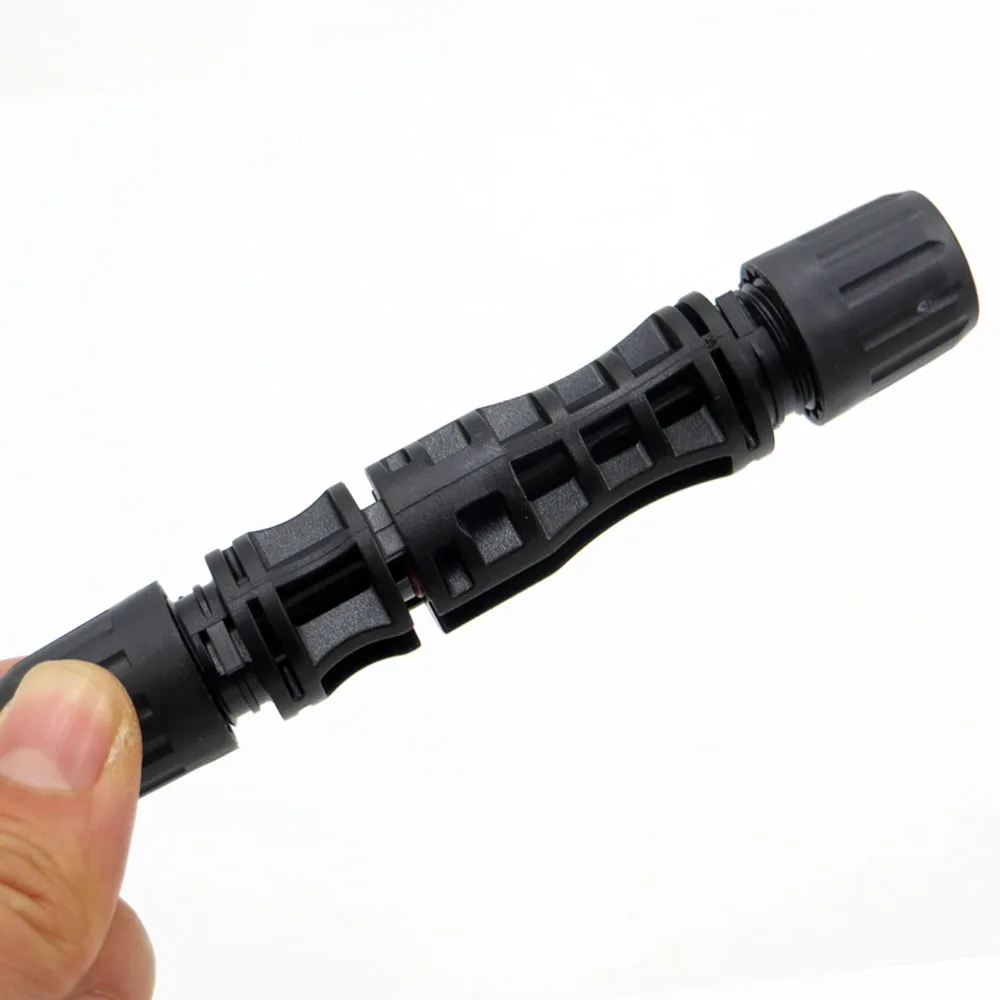

Product show:

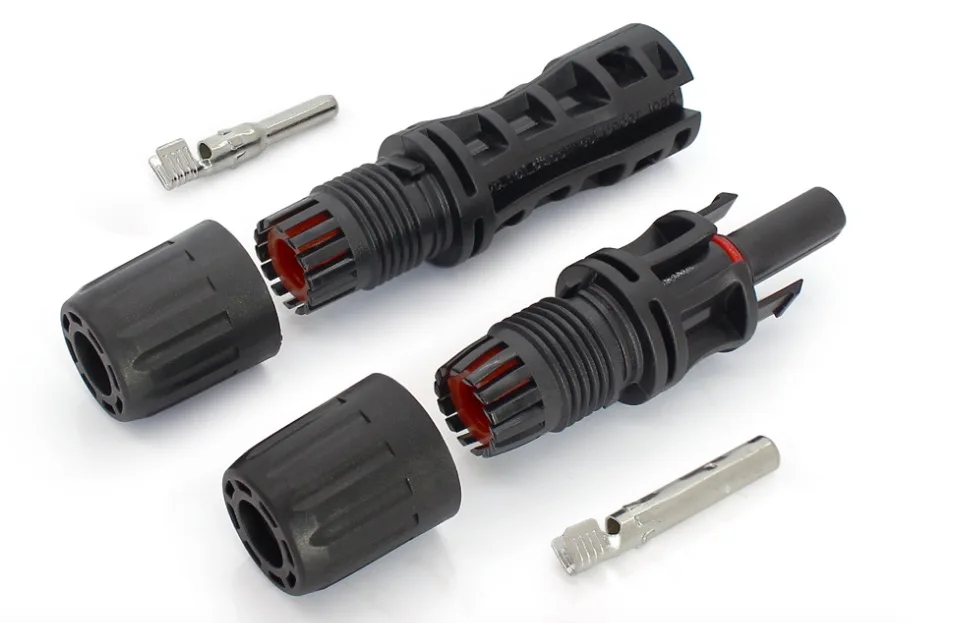

30A 1500V as below

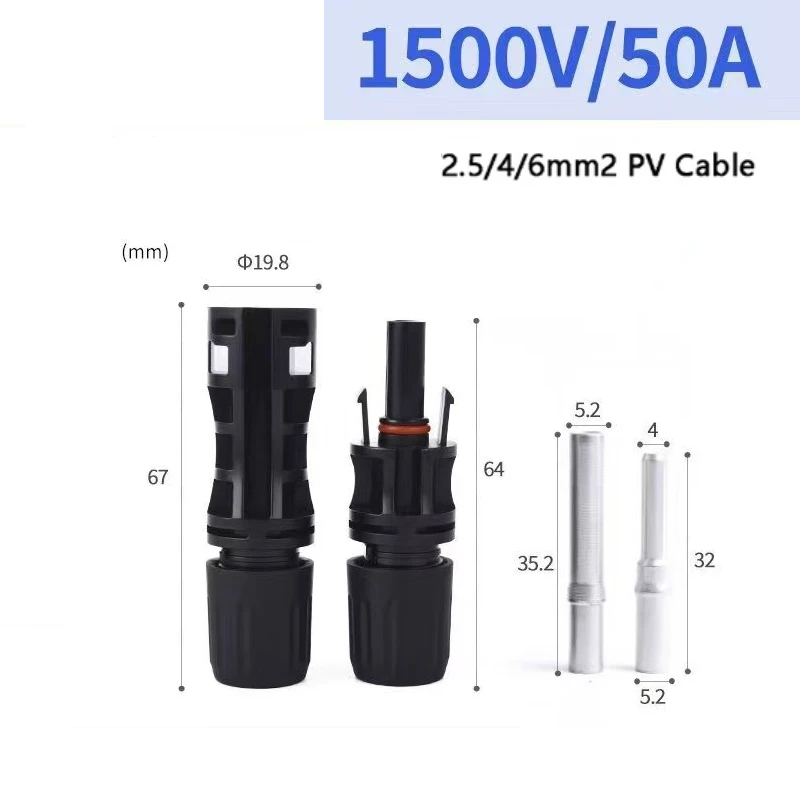

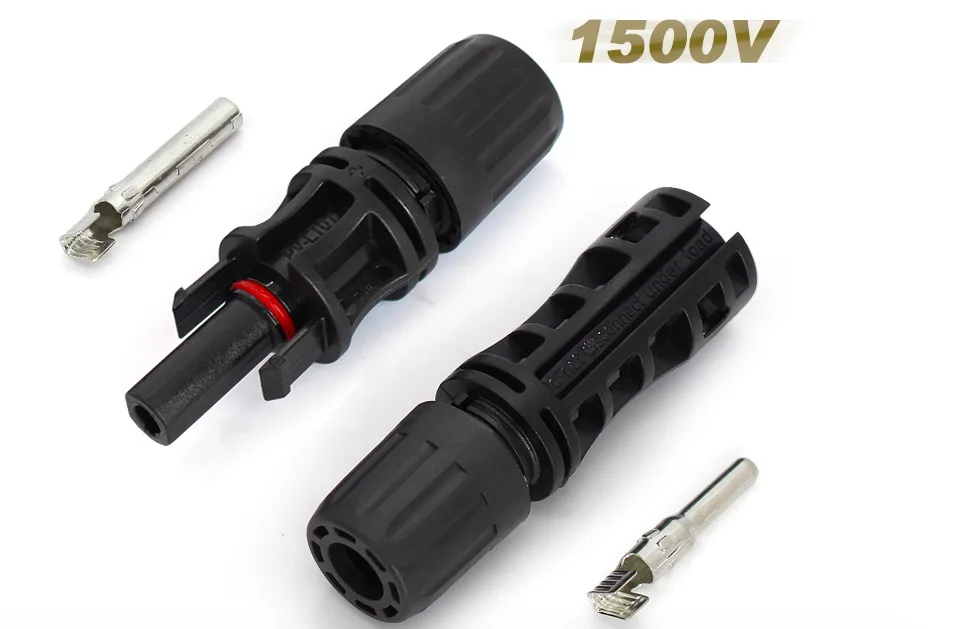

50A 1500V as below:
