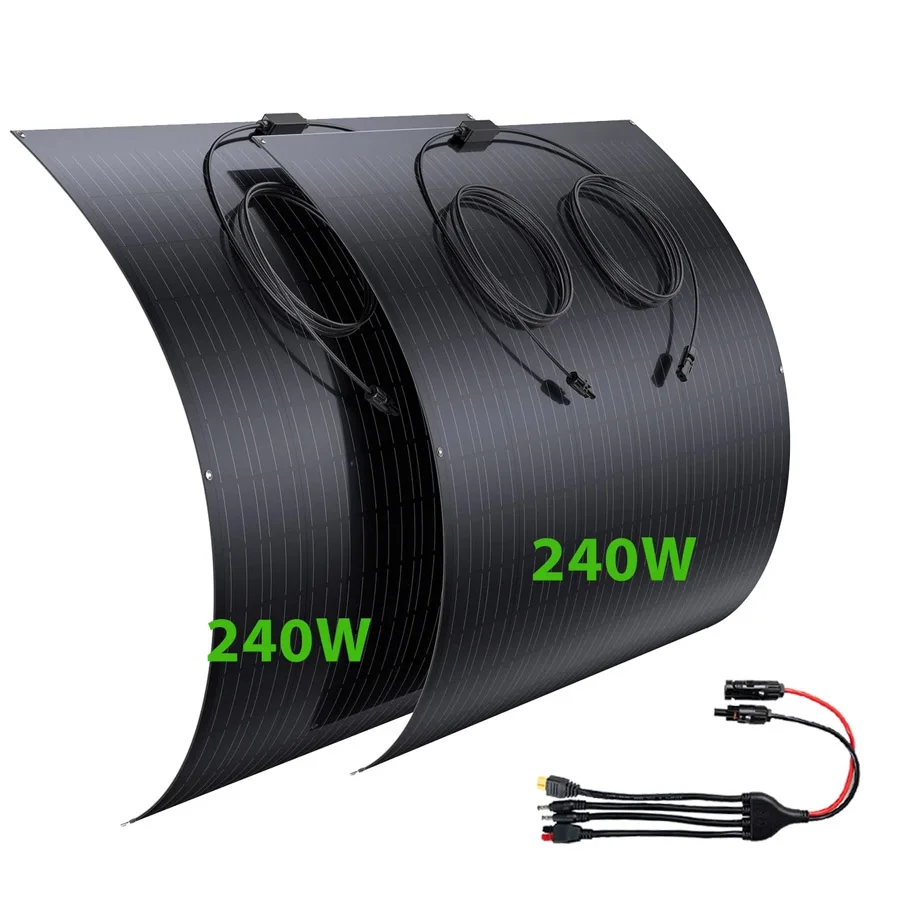

2×240W Flexible Solar Panel Set 480W – Ideal for RV, Camper, Caravan, Boat – High Efficiency Mono Solar Module LS-SP240, Ultra
€ 353,82
| Poids | 3,0 kg |
|---|---|
| Dimensions | 118 × 115 × 3 cm |
| Nom de marque |
other |
| Module d'efficacité |
16.5% |
| Origine |
CN (Origine) |
| Matériau |
Silicium polycrystallin |
| Nombre de panneaux |
2 |
| Panneau solaire flexible |
Oui |
| Panneau Solaire Pliable |
Oui |
| est_personnalisé |
Oui |
| Certification |
CE, ROHS |
| Type d'écriture |
panneau solaire |
En stock
📢 Shipping Notice
Please note that the panel size is 118x115x3 cm, which is a larger volume. As the product ships directly from Germany, the estimated delivery time is typically 8-12 days for delivery. We kindly ask for your understanding and patience during the shipping process.
Thank you for choosing our product, and we’re committed to providing you with high-quality service!
2×240W Flexible Solar Panel Set 480W – Ideal for RV, Camper, Caravan, Boat – High Efficiency Mono Solar Module LS-SP240, Ultra-Thin & Durable
Technical Specifications
Model: LS-240W
Type Name: FLEX240MD(BK)
Maximum Power (Wp): 240W
Cell No.: MONO182 (6×12)
Connection: Parallel
Open Circuit Voltage (Voc): 23.60V
Short Circuit Current (Isc): 11.90A
Maximum Power Voltage (Vm): 21.01V
Maximum Power Current (Im): 11.23A
Maximum Series Fuse: 20A
Efficiency: 17.55%

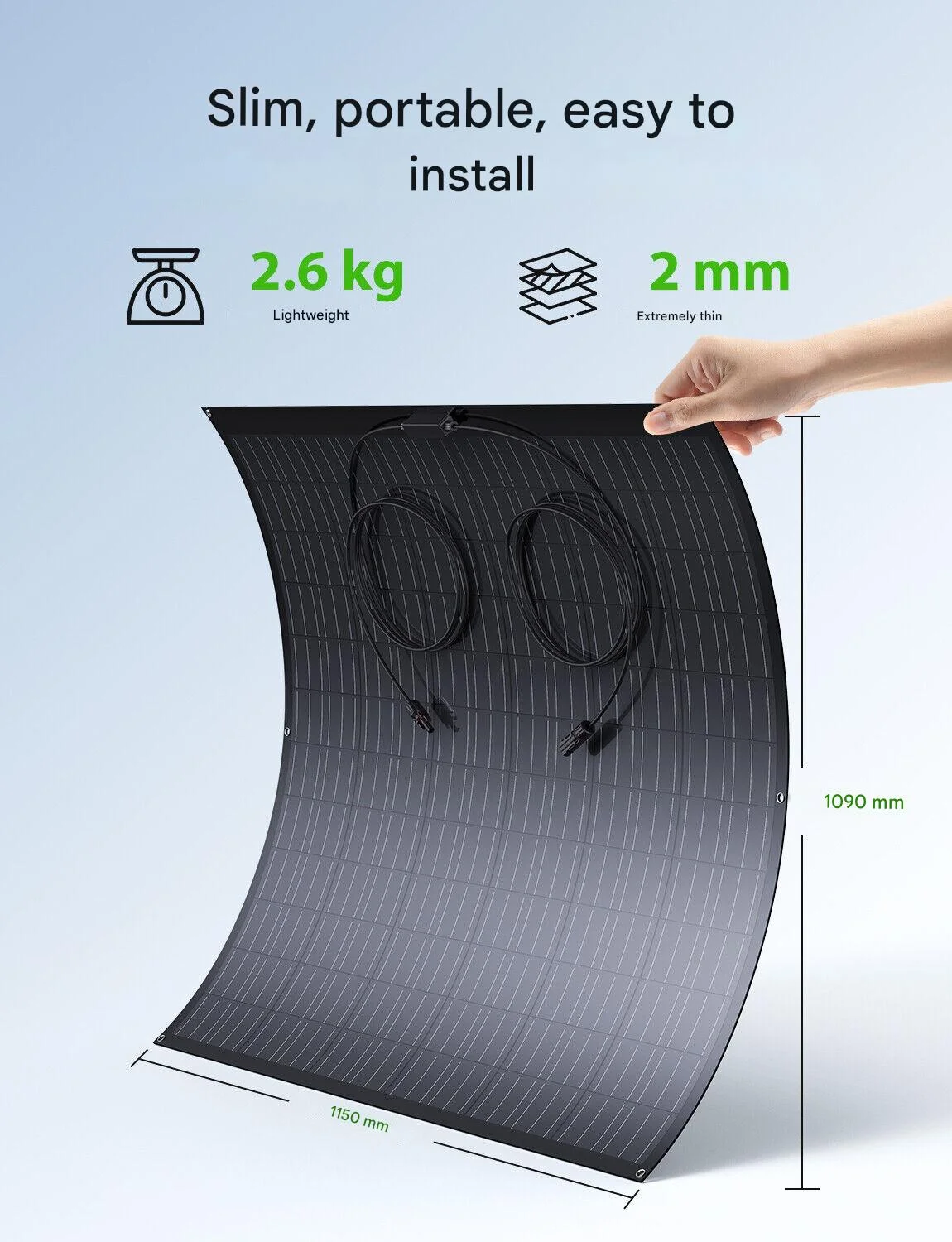

Net Weight: 2.6KG
Cables & Plug Connectors: 2×3000mm / 2.5 mm²

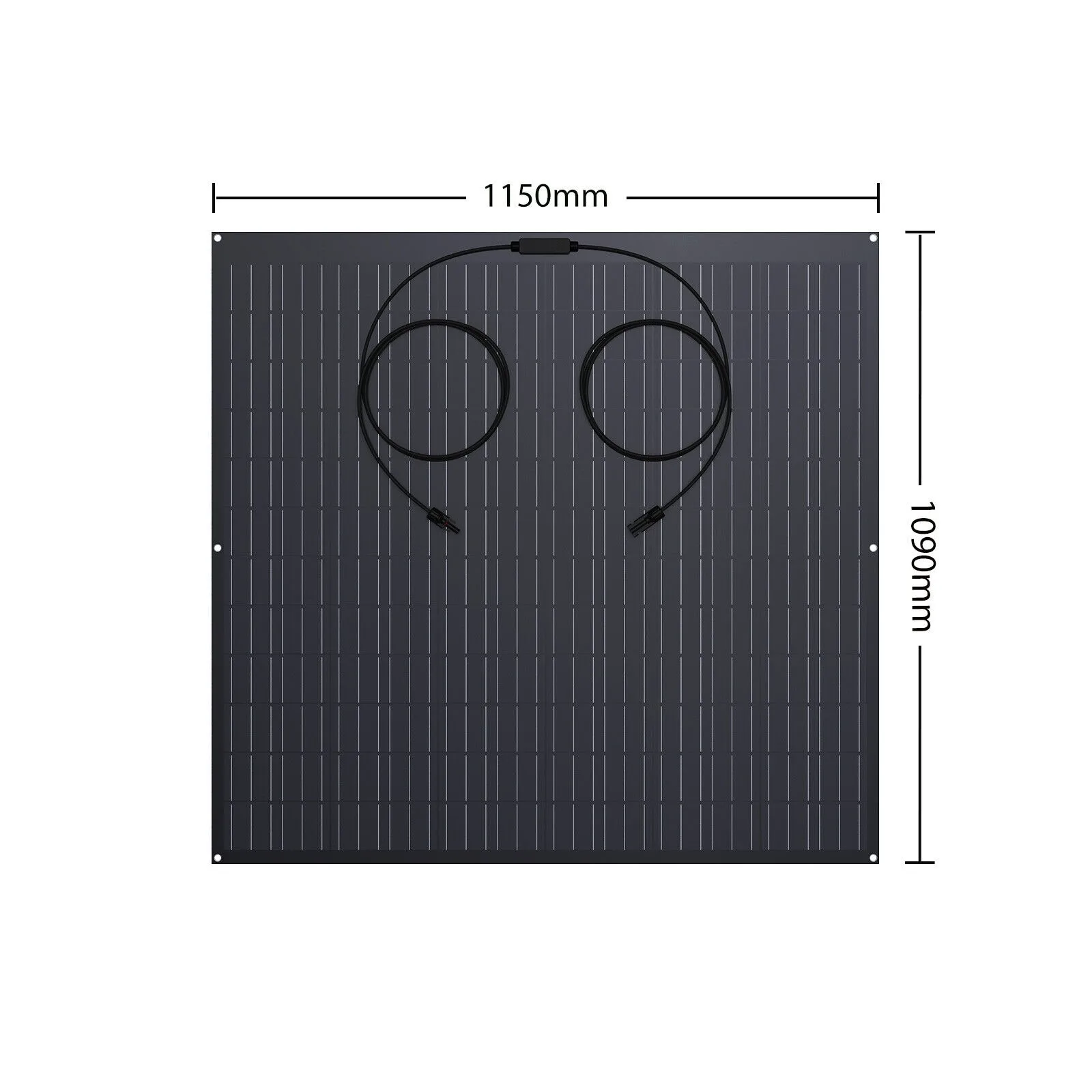

Module Dimensions (L/W/H): 1150×1090×2mm
2 in 1 Carton Dimensions (inner): 1170×1120×30mm
Qty/20GP: 1300pcs
Number of Diode: 2
Power Tolerance: ±3%
Junction Box (Protection Degree): ≥IP67
Maximum System Voltage: 600V/DC
Temperature-Coefficient Isc: +0.08558%/°C
Temperature-Coefficient Uoc: -0.29506%/°C
Temperature-Coefficient Pmpp: -0.38001%/°C
Operating Temperature: -40°C ~ +85°C
Standard Test Conditions: 1000W/M², 25°C, AM1.5
Certificate: CE

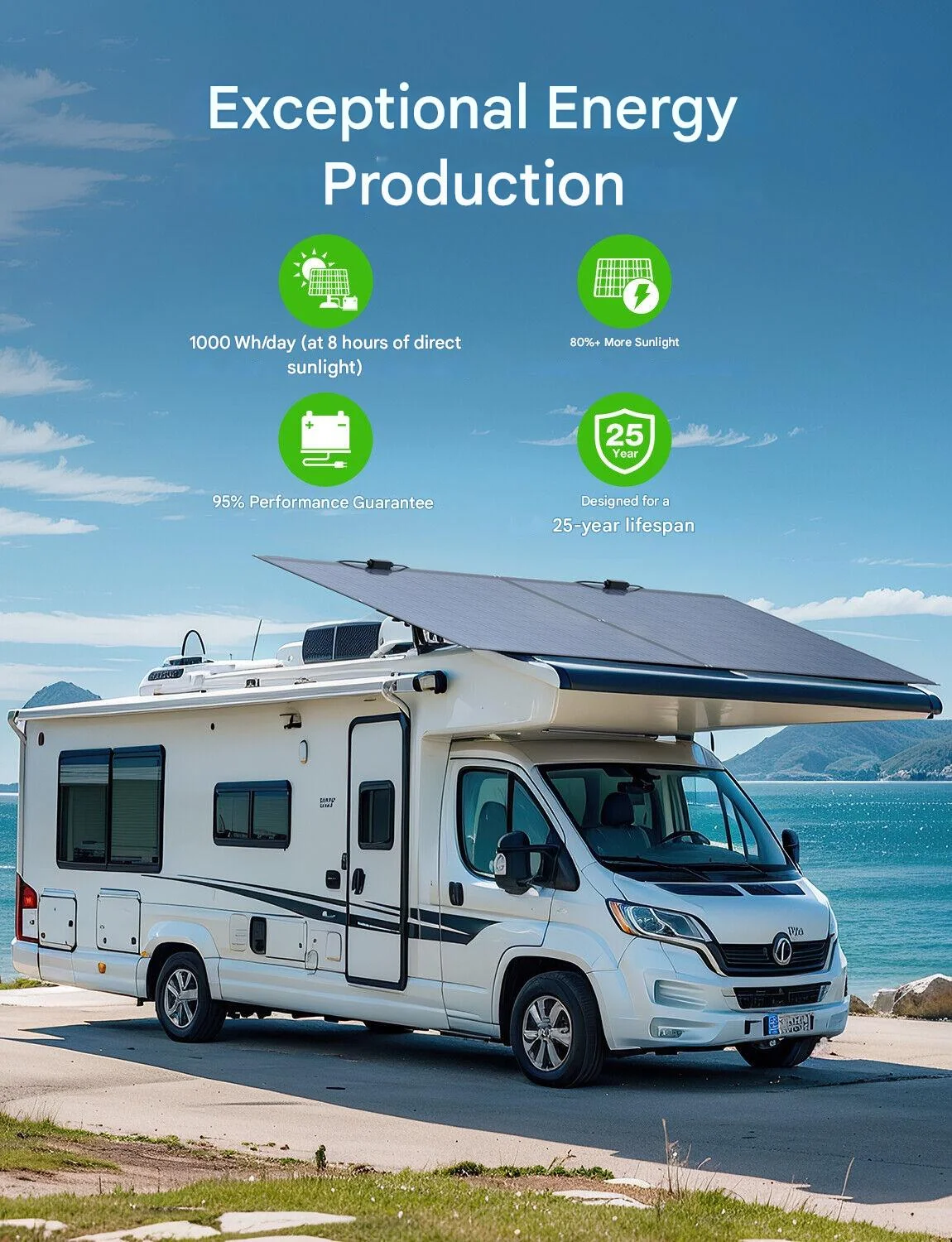

1. High Power Output – 480W (2x240W) for Maximum Efficiency
-
Benefit: Provides reliable power for off-grid applications like RVs, boats, and camping, ensuring you have enough energy for all your devices.

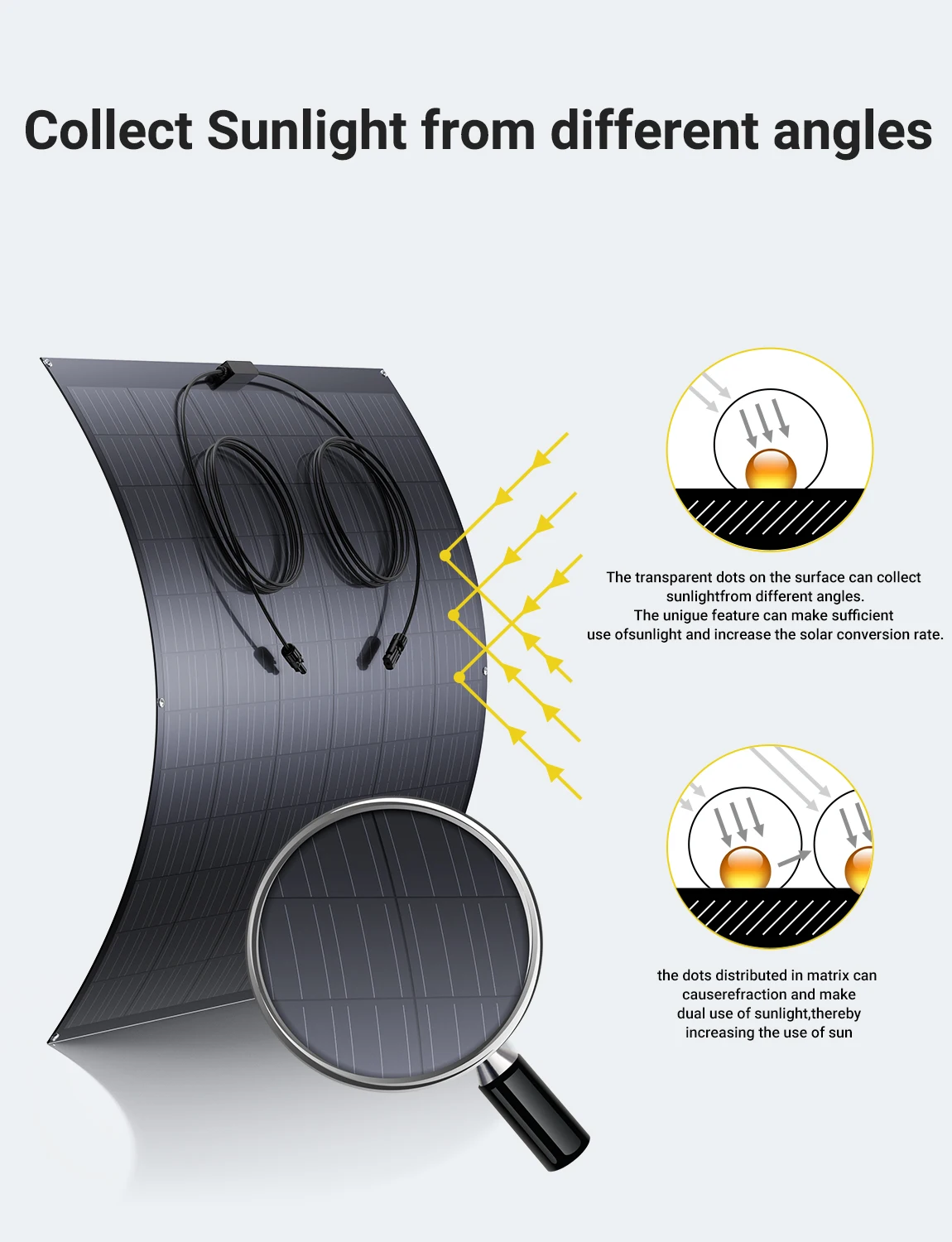

2. Flexible Design – Ideal for Curved Surfaces
-
Benefit: The panel's flexible structure makes it perfect for installations on curved surfaces like RV roofs, boats, and balconies, allowing more versatile placement.

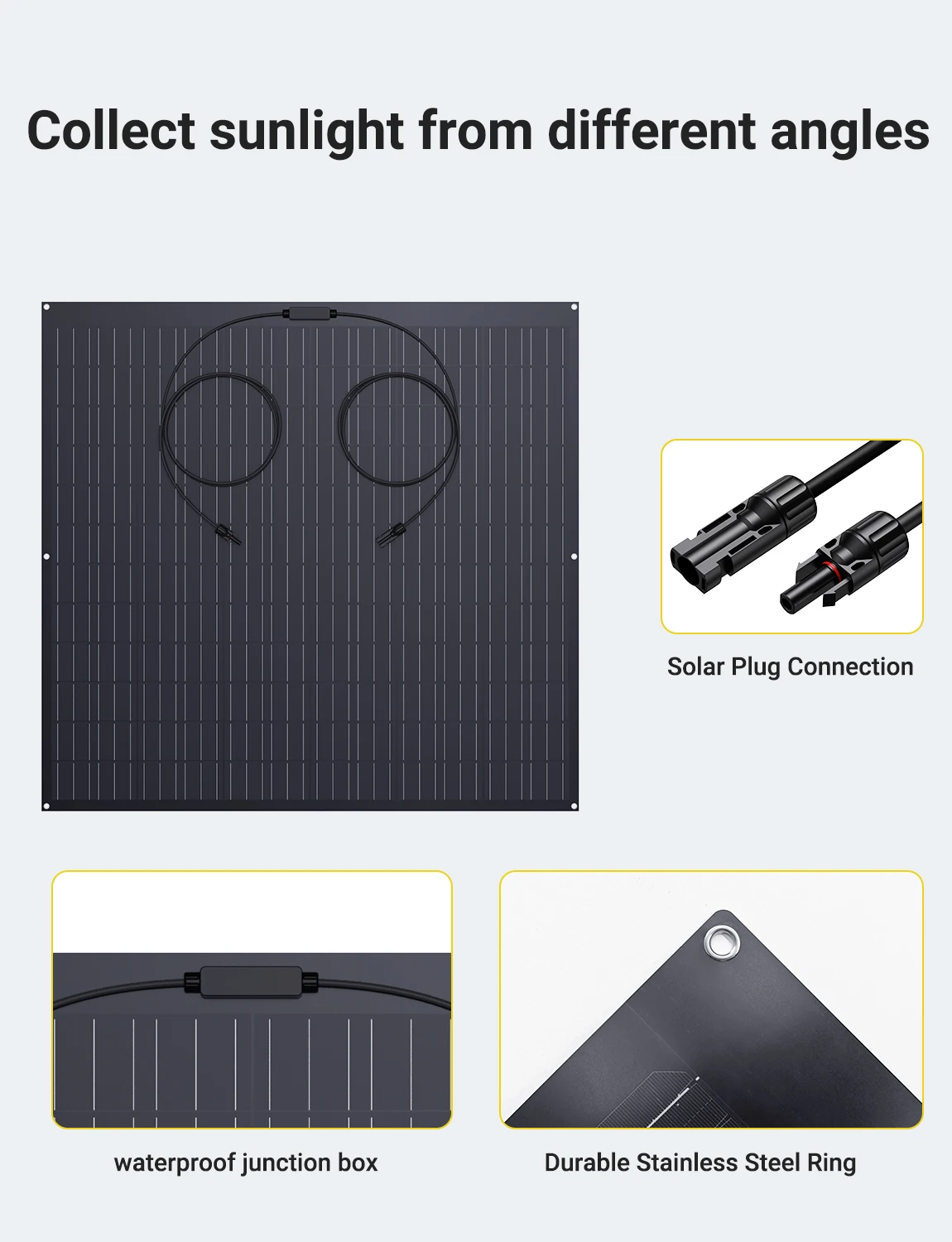

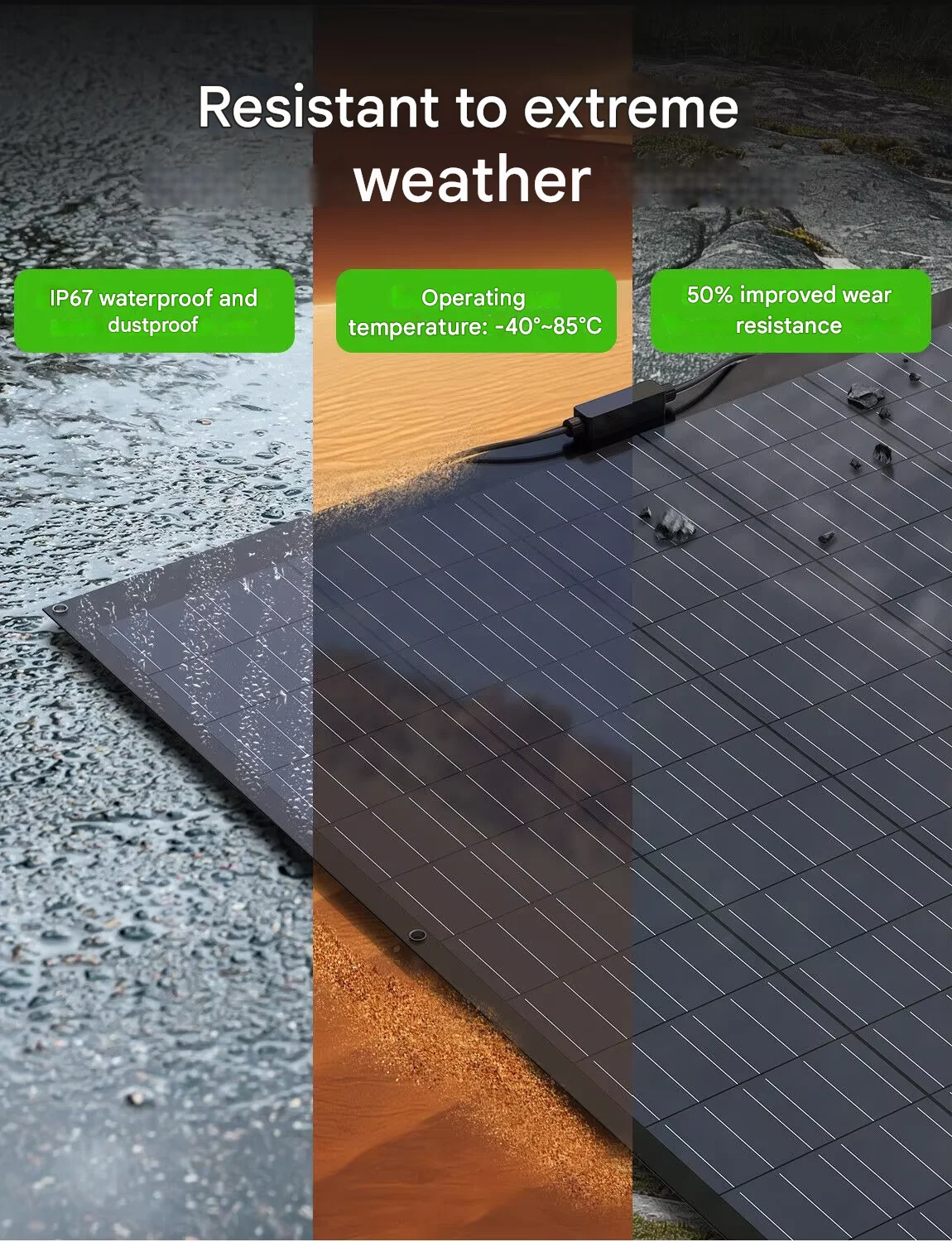

3. Durable & Waterproof – IP67 Rated Junction Box
-
Benefit: With an IP67 waterproof rating, this solar panel kit is built to withstand harsh outdoor environments, ensuring long-term durability in all weather conditions.

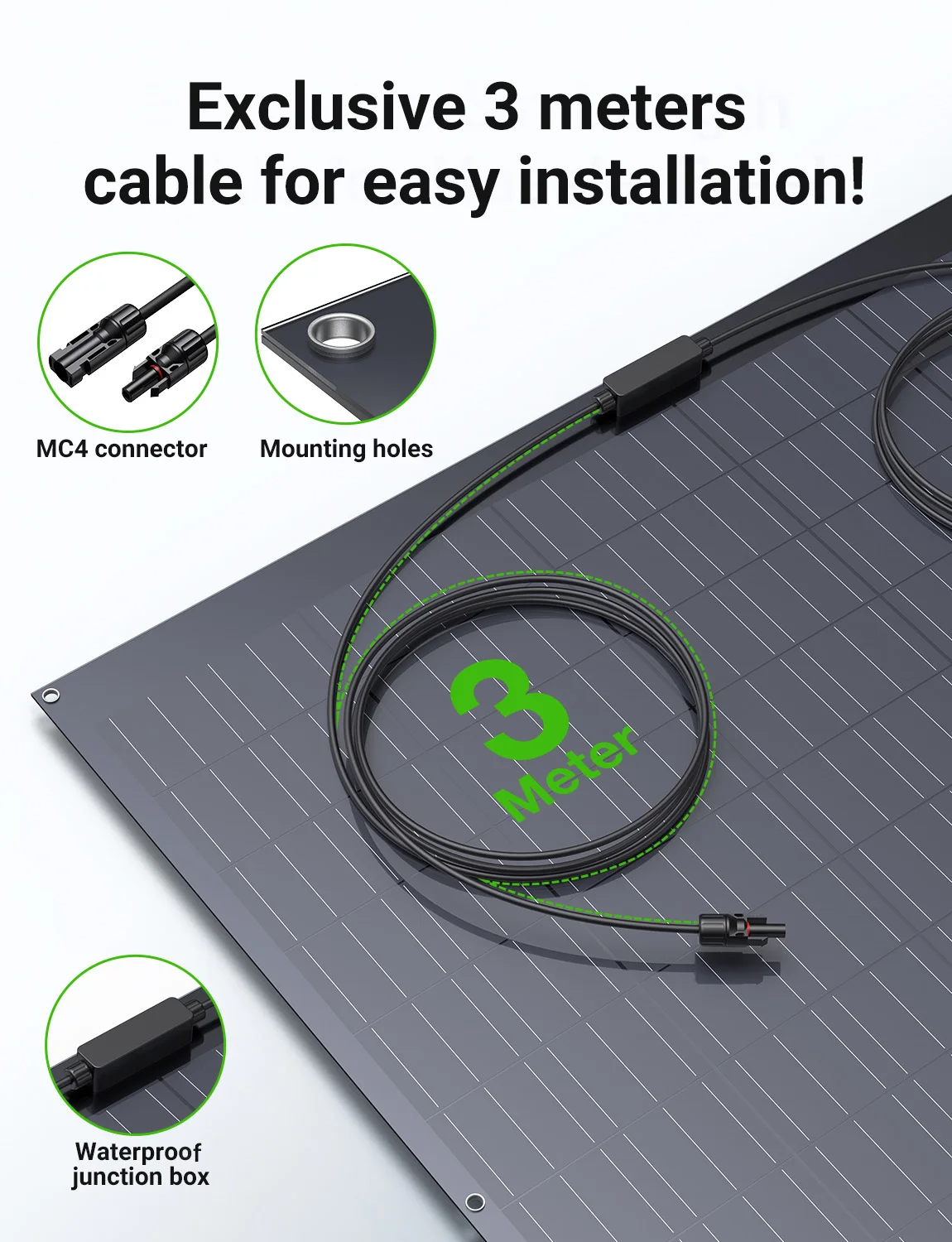

4. Easy Installation – 3M Cable & Pre-Drilled Mounting Holes
-
Benefit: The included 3-meter cable and pre-drilled holes allow for quick and easy setup, making it perfect for both beginners and experienced solar users.

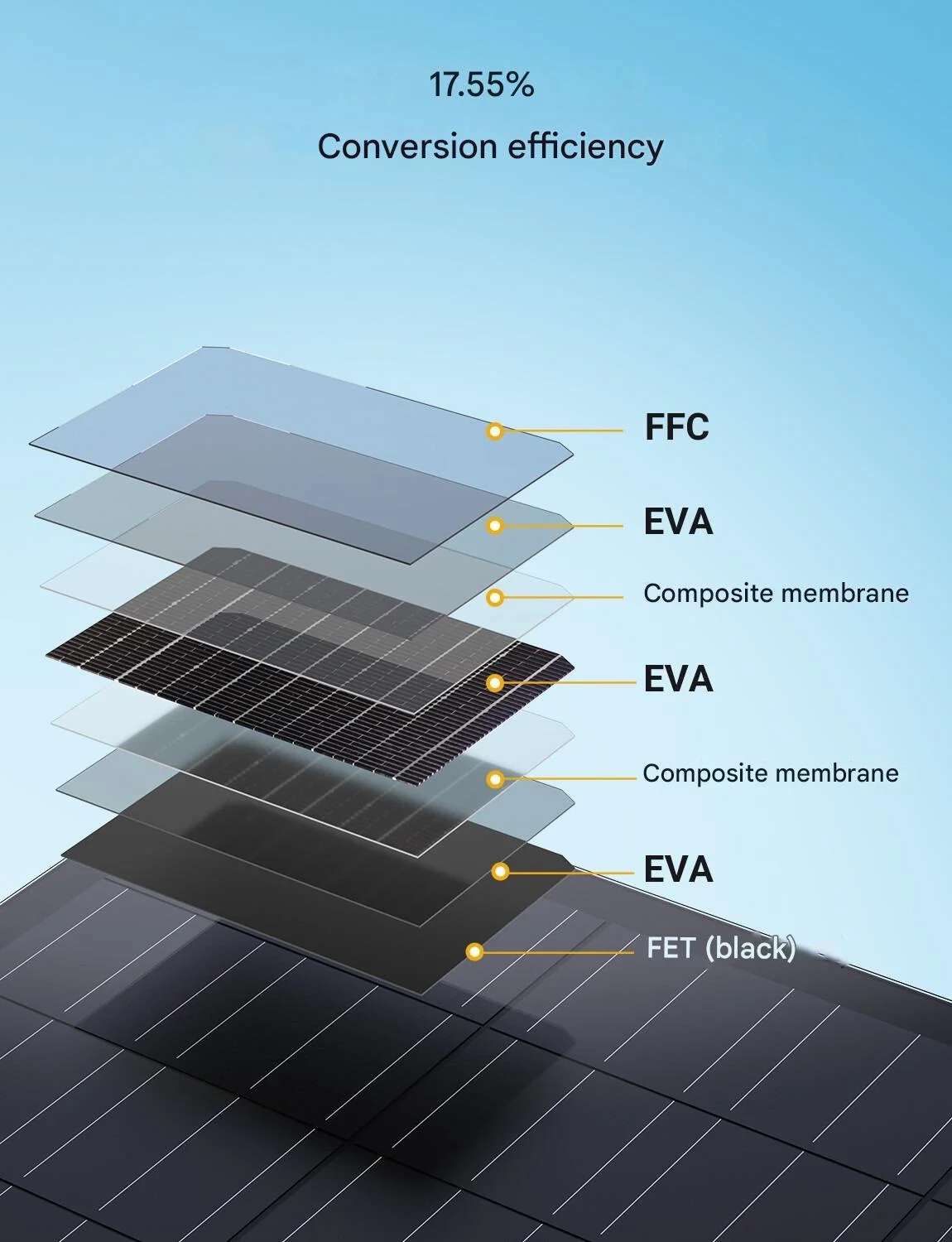

5. Versatile & Efficient – Mono 182 Cells with High Conversion Efficiency
-
Benefit: The high-quality mono cells provide an efficiency of 17.55%, ensuring maximum energy conversion even in low-light conditions, ideal for a variety of off-grid applications.
