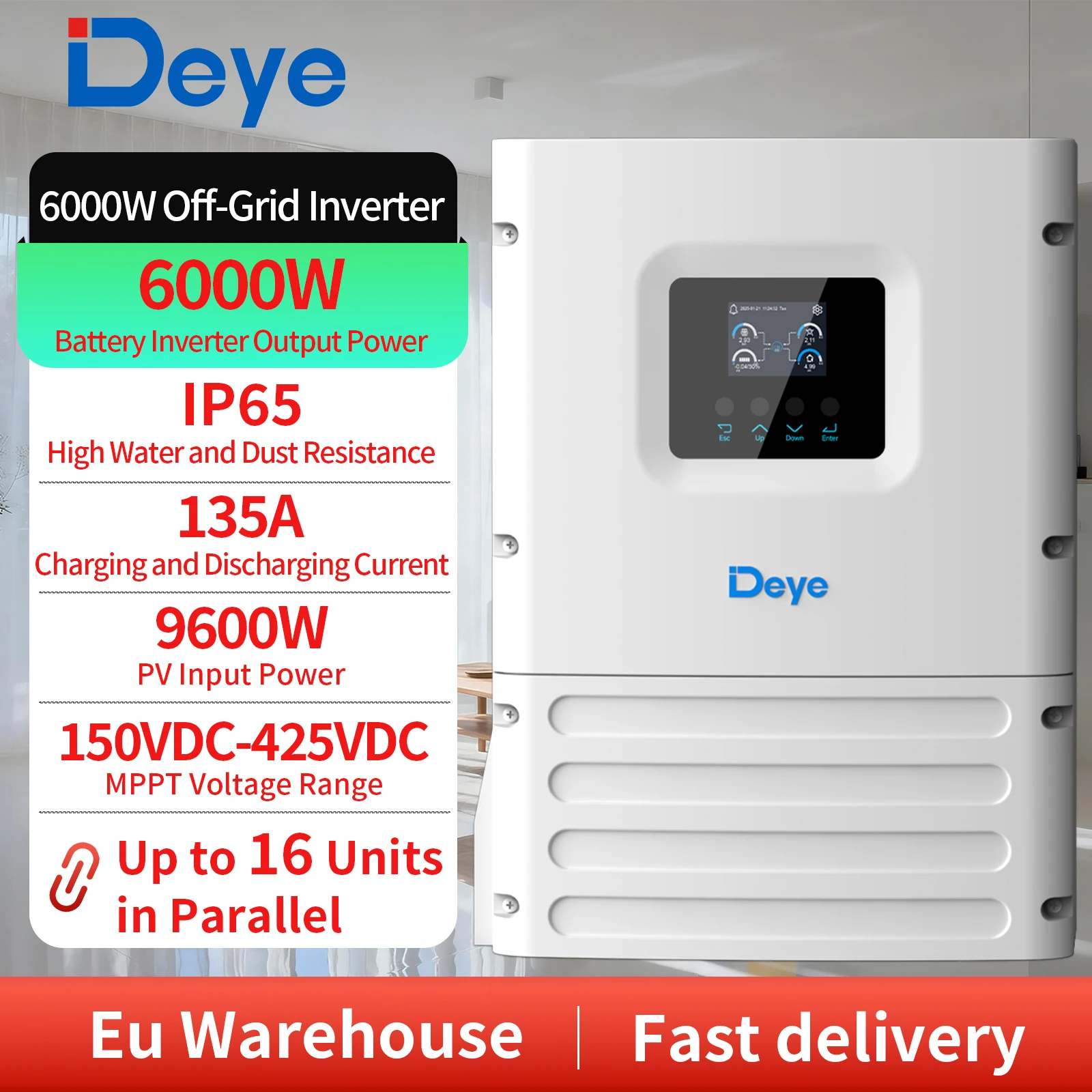

Inverter hors réseau Deye 6000W SUN-6K-OG02LP1-EU-AM1 6kW avec entrée PV 9600W, chargeur 135A, IP65, WiFi intégré, zéro exportation vers le réseau
€959.91
14 en stock
14 en stock
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
| Poids | 10.000 livres |
|---|---|
| Dimensions | 57 × 42 × 28 pouce |
| Nom de marque | NONE |
| Origine | CN (Origine) |
| Produit chimique à haute préoccupation | Aucun |
| Tension LVD UE | Basse tension : inférieure à 50Vac ou 75Vdc |
| Certification | CE, FCC, ROHS |
| Taille | 306*427.5*175.8 mm |
| Fréquence de sortie | 50HZ |
| Type de sortie | SEUL |
| est_personnalisé | Oui |
| Courant de Sortie | 135A |
| Poids | 13KG |
| Est-ce un appareil intelligent | Oui |
| Numéro de Modèle | SUN-6K-OG02LP1-EU-AM1 |
| Model | SUN-6K-OG02LP1-EU-AM1 |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max Charging Current (A) | 135 |
| Max Discharging Current (A) | 135 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| Max PV Access Power (W) | 12000 |
| Max PV Input Power (W) | 9600 |
| Max PV Input Voltage (V) | 500 |
| Start-up Voltage (V) | 125 |
| MPPT Voltage Range (V) | 150-425 |
| Rated PV Input Voltage (V) | 370 |
| Max Operating PV Input Current (A) | 36 |
| Max Input Short-Circuit Current (A) | 54 |
| Rated AC Output Power (VA/W) | 6000 |
| Max AC Output Power (VA/W) | 6000 |
| Max AC Output Current (A) | 26.1 |
| Peak Power (W) | 2 times of rated power, 10s |
| Rated Output Voltage (V) | 230 |
| Output Type | L+N+PE |
| Rated Output Frequency (Hz) | 50/60 |

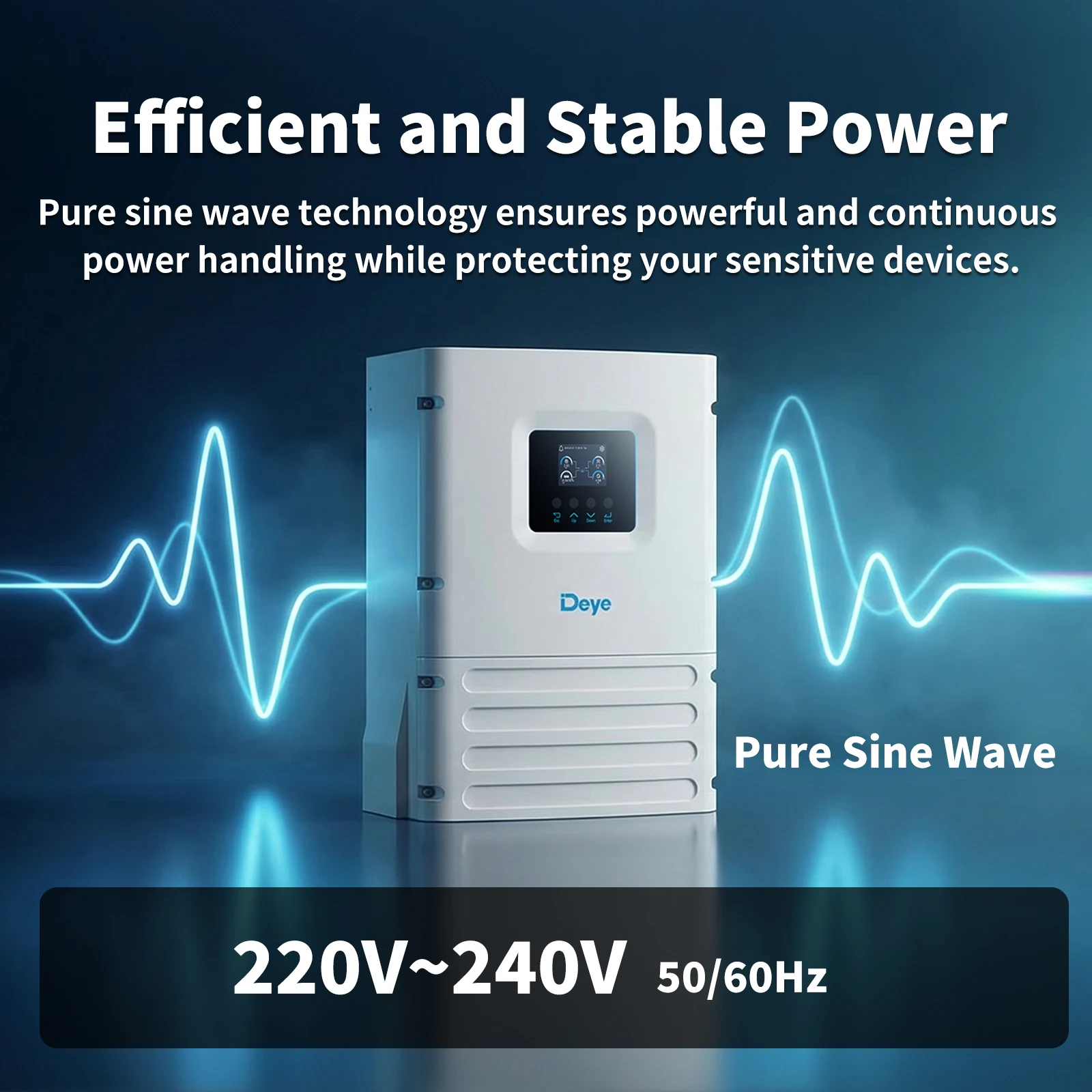

| Output Voltage Waveform | Pure Sine Wave |
| Total Current Harmonic Distortion THDi | <3% |
| Max Input Power to Battery | 6000 W |
| Rated Input Voltage/Range (V) | 230 |
| Rated Input Frequency (Hz) | 50/60 |
| Grid Input Current (A) | 35 |
| Generator Input Current (A) | 35 |
| Max efficiency | 98% |
| Euro efficiency | 97% |
| MPPT efficiency | >99% |
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc fault circuit interrupter (AFCI) (Optional), Insulation Impedance Detection |
| Surge Protection Level | TYPE II(DC), TYPE II(AC) |

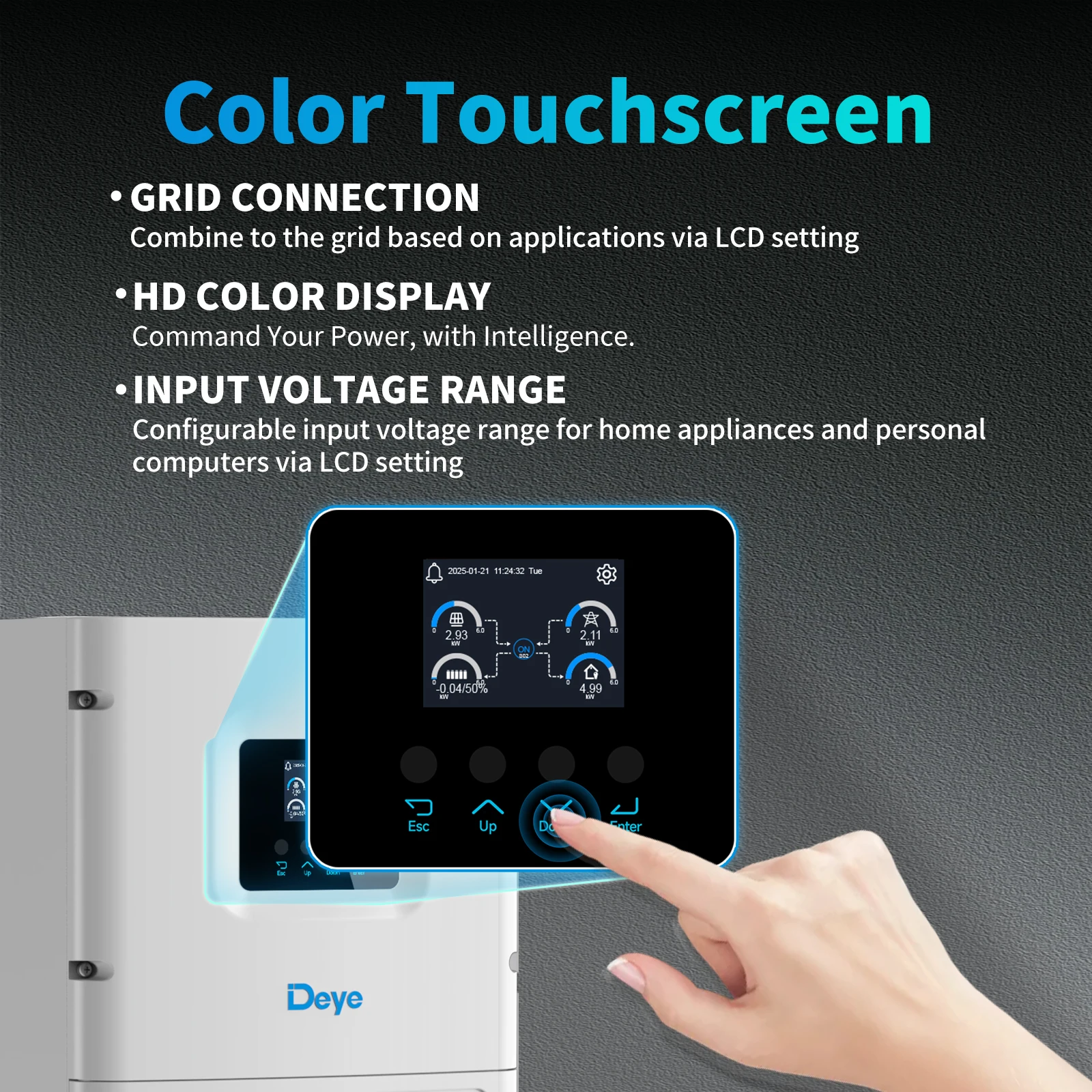

| LCD/LED display | LCD |

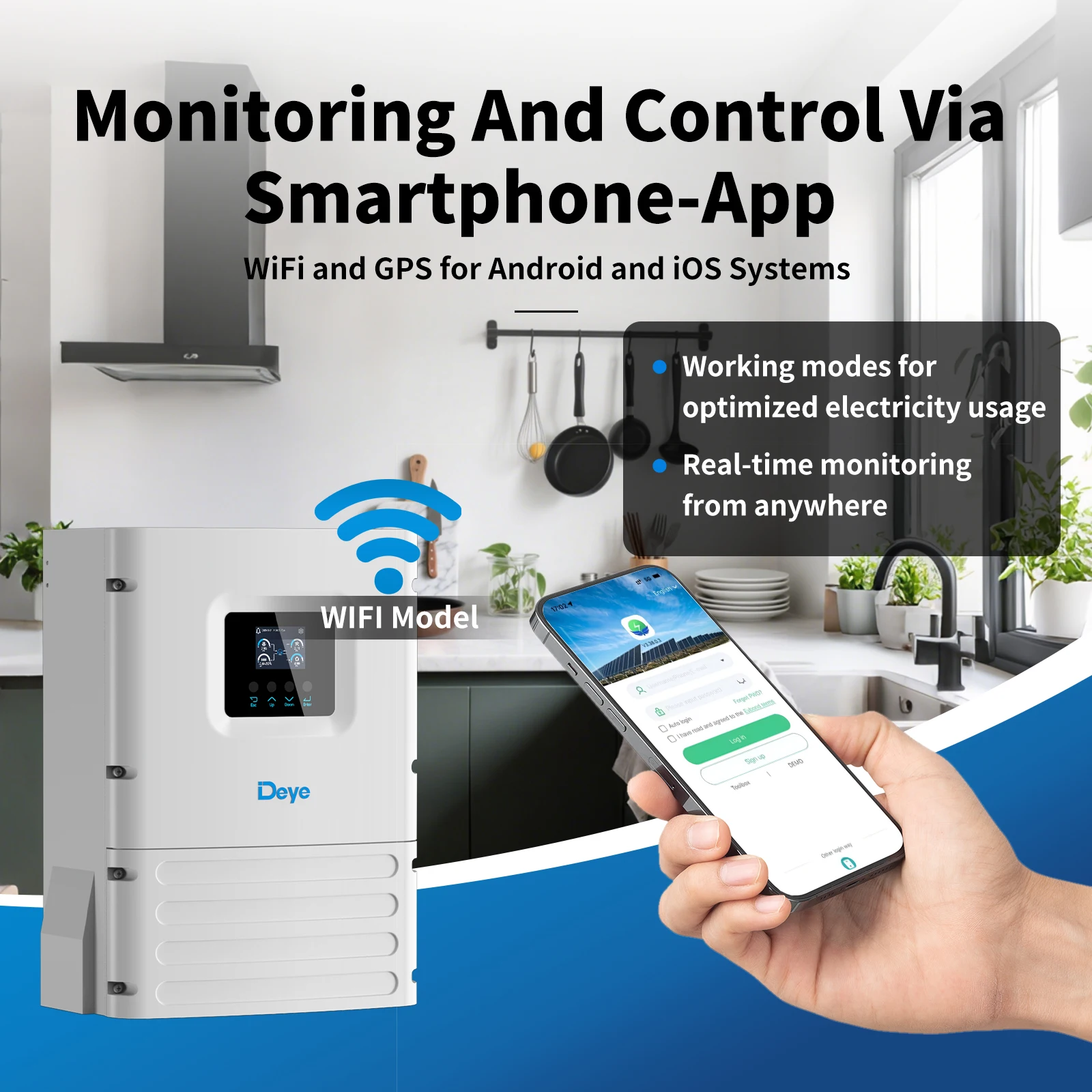

| Communication Interface | WIFI, RS485, CAN |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 3000m |
| Noise (dB) | <55 |
| Ingress Protection(IP) Rating | IP65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC), OVC III(AC) |
| Cabinet Size (WxHxD mm) | 306*427.5*175.8 |
| Weight (kg) | 9.3 |
| Typeof Cooling | Intelligent Air Cooling |
| Warranty | Standard 5 years, extended warranty |
| Safety / EMC Standard | IEC62109-1/-2, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 |
Processor
| Poids | 10.000 livres |
|---|---|
| Dimensions | 57 × 42 × 28 pouce |
| Nom de marque | NONE |
| Origine | CN (Origine) |
| Produit chimique à haute préoccupation | Aucun |
| Tension LVD UE | Basse tension : inférieure à 50Vac ou 75Vdc |
| Certification | CE, FCC, ROHS |
| Taille | 306*427.5*175.8 mm |
| Fréquence de sortie | 50HZ |
| Type de sortie | SEUL |
| est_personnalisé | Oui |
| Courant de Sortie | 135A |
| Poids | 13KG |
| Est-ce un appareil intelligent | Oui |
| Numéro de Modèle | SUN-6K-OG02LP1-EU-AM1 |
| Model | SUN-6K-OG02LP1-EU-AM1 |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max Charging Current (A) | 135 |
| Max Discharging Current (A) | 135 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| Max PV Access Power (W) | 12000 |
| Max PV Input Power (W) | 9600 |
| Max PV Input Voltage (V) | 500 |
| Start-up Voltage (V) | 125 |
| MPPT Voltage Range (V) | 150-425 |
| Rated PV Input Voltage (V) | 370 |
| Max Operating PV Input Current (A) | 36 |
| Max Input Short-Circuit Current (A) | 54 |
| Rated AC Output Power (VA/W) | 6000 |
| Max AC Output Power (VA/W) | 6000 |
| Max AC Output Current (A) | 26.1 |
| Peak Power (W) | 2 times of rated power, 10s |
| Rated Output Voltage (V) | 230 |
| Output Type | L+N+PE |
| Rated Output Frequency (Hz) | 50/60 |
| Output Voltage Waveform | Pure Sine Wave |
| Total Current Harmonic Distortion THDi | <3% |
| Max Input Power to Battery | 6000 W |
| Rated Input Voltage/Range (V) | 230 |
| Rated Input Frequency (Hz) | 50/60 |
| Grid Input Current (A) | 35 |
| Generator Input Current (A) | 35 |
| Max efficiency | 98% |
| Euro efficiency | 97% |
| MPPT efficiency | >99% |
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc fault circuit interrupter (AFCI) (Optional), Insulation Impedance Detection |
| Surge Protection Level | TYPE II(DC), TYPE II(AC) |
| LCD/LED display | LCD |
| Communication Interface | WIFI, RS485, CAN |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 3000m |
| Noise (dB) | <55 |
| Ingress Protection(IP) Rating | IP65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC), OVC III(AC) |
| Cabinet Size (WxHxD mm) | 306*427.5*175.8 |
| Weight (kg) | 9.3 |
| Typeof Cooling | Intelligent Air Cooling |
| Warranty | Standard 5 years, extended warranty |
| Safety / EMC Standard | IEC62109-1/-2, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 |
Display
| Poids | 10.000 livres |
|---|---|
| Dimensions | 57 × 42 × 28 pouce |
| Nom de marque | NONE |
| Origine | CN (Origine) |
| Produit chimique à haute préoccupation | Aucun |
| Tension LVD UE | Basse tension : inférieure à 50Vac ou 75Vdc |
| Certification | CE, FCC, ROHS |
| Taille | 306*427.5*175.8 mm |
| Fréquence de sortie | 50HZ |
| Type de sortie | SEUL |
| est_personnalisé | Oui |
| Courant de Sortie | 135A |
| Poids | 13KG |
| Est-ce un appareil intelligent | Oui |
| Numéro de Modèle | SUN-6K-OG02LP1-EU-AM1 |
| Model | SUN-6K-OG02LP1-EU-AM1 |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max Charging Current (A) | 135 |
| Max Discharging Current (A) | 135 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| Max PV Access Power (W) | 12000 |
| Max PV Input Power (W) | 9600 |
| Max PV Input Voltage (V) | 500 |
| Start-up Voltage (V) | 125 |
| MPPT Voltage Range (V) | 150-425 |
| Rated PV Input Voltage (V) | 370 |
| Max Operating PV Input Current (A) | 36 |
| Max Input Short-Circuit Current (A) | 54 |
| Rated AC Output Power (VA/W) | 6000 |
| Max AC Output Power (VA/W) | 6000 |
| Max AC Output Current (A) | 26.1 |
| Peak Power (W) | 2 times of rated power, 10s |
| Rated Output Voltage (V) | 230 |
| Output Type | L+N+PE |
| Rated Output Frequency (Hz) | 50/60 |
| Output Voltage Waveform | Pure Sine Wave |
| Total Current Harmonic Distortion THDi | <3% |
| Max Input Power to Battery | 6000 W |
| Rated Input Voltage/Range (V) | 230 |
| Rated Input Frequency (Hz) | 50/60 |
| Grid Input Current (A) | 35 |
| Generator Input Current (A) | 35 |
| Max efficiency | 98% |
| Euro efficiency | 97% |
| MPPT efficiency | >99% |
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc fault circuit interrupter (AFCI) (Optional), Insulation Impedance Detection |
| Surge Protection Level | TYPE II(DC), TYPE II(AC) |
| LCD/LED display | LCD |
| Communication Interface | WIFI, RS485, CAN |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 3000m |
| Noise (dB) | <55 |
| Ingress Protection(IP) Rating | IP65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC), OVC III(AC) |
| Cabinet Size (WxHxD mm) | 306*427.5*175.8 |
| Weight (kg) | 9.3 |
| Typeof Cooling | Intelligent Air Cooling |
| Warranty | Standard 5 years, extended warranty |
| Safety / EMC Standard | IEC62109-1/-2, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 |
RAM
| Poids | 10.000 livres |
|---|---|
| Dimensions | 57 × 42 × 28 pouce |
| Nom de marque | NONE |
| Origine | CN (Origine) |
| Produit chimique à haute préoccupation | Aucun |
| Tension LVD UE | Basse tension : inférieure à 50Vac ou 75Vdc |
| Certification | CE, FCC, ROHS |
| Taille | 306*427.5*175.8 mm |
| Fréquence de sortie | 50HZ |
| Type de sortie | SEUL |
| est_personnalisé | Oui |
| Courant de Sortie | 135A |
| Poids | 13KG |
| Est-ce un appareil intelligent | Oui |
| Numéro de Modèle | SUN-6K-OG02LP1-EU-AM1 |
| Model | SUN-6K-OG02LP1-EU-AM1 |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max Charging Current (A) | 135 |
| Max Discharging Current (A) | 135 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| Max PV Access Power (W) | 12000 |
| Max PV Input Power (W) | 9600 |
| Max PV Input Voltage (V) | 500 |
| Start-up Voltage (V) | 125 |
| MPPT Voltage Range (V) | 150-425 |
| Rated PV Input Voltage (V) | 370 |
| Max Operating PV Input Current (A) | 36 |
| Max Input Short-Circuit Current (A) | 54 |
| Rated AC Output Power (VA/W) | 6000 |
| Max AC Output Power (VA/W) | 6000 |
| Max AC Output Current (A) | 26.1 |
| Peak Power (W) | 2 times of rated power, 10s |
| Rated Output Voltage (V) | 230 |
| Output Type | L+N+PE |
| Rated Output Frequency (Hz) | 50/60 |
| Output Voltage Waveform | Pure Sine Wave |
| Total Current Harmonic Distortion THDi | <3% |
| Max Input Power to Battery | 6000 W |
| Rated Input Voltage/Range (V) | 230 |
| Rated Input Frequency (Hz) | 50/60 |
| Grid Input Current (A) | 35 |
| Generator Input Current (A) | 35 |
| Max efficiency | 98% |
| Euro efficiency | 97% |
| MPPT efficiency | >99% |
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc fault circuit interrupter (AFCI) (Optional), Insulation Impedance Detection |
| Surge Protection Level | TYPE II(DC), TYPE II(AC) |
| LCD/LED display | LCD |
| Communication Interface | WIFI, RS485, CAN |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 3000m |
| Noise (dB) | <55 |
| Ingress Protection(IP) Rating | IP65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC), OVC III(AC) |
| Cabinet Size (WxHxD mm) | 306*427.5*175.8 |
| Weight (kg) | 9.3 |
| Typeof Cooling | Intelligent Air Cooling |
| Warranty | Standard 5 years, extended warranty |
| Safety / EMC Standard | IEC62109-1/-2, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 |
Storage
| Poids | 10.000 livres |
|---|---|
| Dimensions | 57 × 42 × 28 pouce |
| Nom de marque | NONE |
| Origine | CN (Origine) |
| Produit chimique à haute préoccupation | Aucun |
| Tension LVD UE | Basse tension : inférieure à 50Vac ou 75Vdc |
| Certification | CE, FCC, ROHS |
| Taille | 306*427.5*175.8 mm |
| Fréquence de sortie | 50HZ |
| Type de sortie | SEUL |
| est_personnalisé | Oui |
| Courant de Sortie | 135A |
| Poids | 13KG |
| Est-ce un appareil intelligent | Oui |
| Numéro de Modèle | SUN-6K-OG02LP1-EU-AM1 |
| Model | SUN-6K-OG02LP1-EU-AM1 |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max Charging Current (A) | 135 |
| Max Discharging Current (A) | 135 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| Max PV Access Power (W) | 12000 |
| Max PV Input Power (W) | 9600 |
| Max PV Input Voltage (V) | 500 |
| Start-up Voltage (V) | 125 |
| MPPT Voltage Range (V) | 150-425 |
| Rated PV Input Voltage (V) | 370 |
| Max Operating PV Input Current (A) | 36 |
| Max Input Short-Circuit Current (A) | 54 |
| Rated AC Output Power (VA/W) | 6000 |
| Max AC Output Power (VA/W) | 6000 |
| Max AC Output Current (A) | 26.1 |
| Peak Power (W) | 2 times of rated power, 10s |
| Rated Output Voltage (V) | 230 |
| Output Type | L+N+PE |
| Rated Output Frequency (Hz) | 50/60 |
| Output Voltage Waveform | Pure Sine Wave |
| Total Current Harmonic Distortion THDi | <3% |
| Max Input Power to Battery | 6000 W |
| Rated Input Voltage/Range (V) | 230 |
| Rated Input Frequency (Hz) | 50/60 |
| Grid Input Current (A) | 35 |
| Generator Input Current (A) | 35 |
| Max efficiency | 98% |
| Euro efficiency | 97% |
| MPPT efficiency | >99% |
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc fault circuit interrupter (AFCI) (Optional), Insulation Impedance Detection |
| Surge Protection Level | TYPE II(DC), TYPE II(AC) |
| LCD/LED display | LCD |
| Communication Interface | WIFI, RS485, CAN |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 3000m |
| Noise (dB) | <55 |
| Ingress Protection(IP) Rating | IP65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC), OVC III(AC) |
| Cabinet Size (WxHxD mm) | 306*427.5*175.8 |
| Weight (kg) | 9.3 |
| Typeof Cooling | Intelligent Air Cooling |
| Warranty | Standard 5 years, extended warranty |
| Safety / EMC Standard | IEC62109-1/-2, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 |
Video Card
| Poids | 10.000 livres |
|---|---|
| Dimensions | 57 × 42 × 28 pouce |
| Nom de marque | NONE |
| Origine | CN (Origine) |
| Produit chimique à haute préoccupation | Aucun |
| Tension LVD UE | Basse tension : inférieure à 50Vac ou 75Vdc |
| Certification | CE, FCC, ROHS |
| Taille | 306*427.5*175.8 mm |
| Fréquence de sortie | 50HZ |
| Type de sortie | SEUL |
| est_personnalisé | Oui |
| Courant de Sortie | 135A |
| Poids | 13KG |
| Est-ce un appareil intelligent | Oui |
| Numéro de Modèle | SUN-6K-OG02LP1-EU-AM1 |
| Model | SUN-6K-OG02LP1-EU-AM1 |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max Charging Current (A) | 135 |
| Max Discharging Current (A) | 135 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| Max PV Access Power (W) | 12000 |
| Max PV Input Power (W) | 9600 |
| Max PV Input Voltage (V) | 500 |
| Start-up Voltage (V) | 125 |
| MPPT Voltage Range (V) | 150-425 |
| Rated PV Input Voltage (V) | 370 |
| Max Operating PV Input Current (A) | 36 |
| Max Input Short-Circuit Current (A) | 54 |
| Rated AC Output Power (VA/W) | 6000 |
| Max AC Output Power (VA/W) | 6000 |
| Max AC Output Current (A) | 26.1 |
| Peak Power (W) | 2 times of rated power, 10s |
| Rated Output Voltage (V) | 230 |
| Output Type | L+N+PE |
| Rated Output Frequency (Hz) | 50/60 |
| Output Voltage Waveform | Pure Sine Wave |
| Total Current Harmonic Distortion THDi | <3% |
| Max Input Power to Battery | 6000 W |
| Rated Input Voltage/Range (V) | 230 |
| Rated Input Frequency (Hz) | 50/60 |
| Grid Input Current (A) | 35 |
| Generator Input Current (A) | 35 |
| Max efficiency | 98% |
| Euro efficiency | 97% |
| MPPT efficiency | >99% |
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc fault circuit interrupter (AFCI) (Optional), Insulation Impedance Detection |
| Surge Protection Level | TYPE II(DC), TYPE II(AC) |
| LCD/LED display | LCD |
| Communication Interface | WIFI, RS485, CAN |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 3000m |
| Noise (dB) | <55 |
| Ingress Protection(IP) Rating | IP65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC), OVC III(AC) |
| Cabinet Size (WxHxD mm) | 306*427.5*175.8 |
| Weight (kg) | 9.3 |
| Typeof Cooling | Intelligent Air Cooling |
| Warranty | Standard 5 years, extended warranty |
| Safety / EMC Standard | IEC62109-1/-2, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 |
Connectivity
| Poids | 10.000 livres |
|---|---|
| Dimensions | 57 × 42 × 28 pouce |
| Nom de marque | NONE |
| Origine | CN (Origine) |
| Produit chimique à haute préoccupation | Aucun |
| Tension LVD UE | Basse tension : inférieure à 50Vac ou 75Vdc |
| Certification | CE, FCC, ROHS |
| Taille | 306*427.5*175.8 mm |
| Fréquence de sortie | 50HZ |
| Type de sortie | SEUL |
| est_personnalisé | Oui |
| Courant de Sortie | 135A |
| Poids | 13KG |
| Est-ce un appareil intelligent | Oui |
| Numéro de Modèle | SUN-6K-OG02LP1-EU-AM1 |
| Model | SUN-6K-OG02LP1-EU-AM1 |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max Charging Current (A) | 135 |
| Max Discharging Current (A) | 135 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| Max PV Access Power (W) | 12000 |
| Max PV Input Power (W) | 9600 |
| Max PV Input Voltage (V) | 500 |
| Start-up Voltage (V) | 125 |
| MPPT Voltage Range (V) | 150-425 |
| Rated PV Input Voltage (V) | 370 |
| Max Operating PV Input Current (A) | 36 |
| Max Input Short-Circuit Current (A) | 54 |
| Rated AC Output Power (VA/W) | 6000 |
| Max AC Output Power (VA/W) | 6000 |
| Max AC Output Current (A) | 26.1 |
| Peak Power (W) | 2 times of rated power, 10s |
| Rated Output Voltage (V) | 230 |
| Output Type | L+N+PE |
| Rated Output Frequency (Hz) | 50/60 |
| Output Voltage Waveform | Pure Sine Wave |
| Total Current Harmonic Distortion THDi | <3% |
| Max Input Power to Battery | 6000 W |
| Rated Input Voltage/Range (V) | 230 |
| Rated Input Frequency (Hz) | 50/60 |
| Grid Input Current (A) | 35 |
| Generator Input Current (A) | 35 |
| Max efficiency | 98% |
| Euro efficiency | 97% |
| MPPT efficiency | >99% |
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc fault circuit interrupter (AFCI) (Optional), Insulation Impedance Detection |
| Surge Protection Level | TYPE II(DC), TYPE II(AC) |
| LCD/LED display | LCD |
| Communication Interface | WIFI, RS485, CAN |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 3000m |
| Noise (dB) | <55 |
| Ingress Protection(IP) Rating | IP65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC), OVC III(AC) |
| Cabinet Size (WxHxD mm) | 306*427.5*175.8 |
| Weight (kg) | 9.3 |
| Typeof Cooling | Intelligent Air Cooling |
| Warranty | Standard 5 years, extended warranty |
| Safety / EMC Standard | IEC62109-1/-2, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 |
Features
| Poids | 10.000 livres |
|---|---|
| Dimensions | 57 × 42 × 28 pouce |
| Nom de marque | NONE |
| Origine | CN (Origine) |
| Produit chimique à haute préoccupation | Aucun |
| Tension LVD UE | Basse tension : inférieure à 50Vac ou 75Vdc |
| Certification | CE, FCC, ROHS |
| Taille | 306*427.5*175.8 mm |
| Fréquence de sortie | 50HZ |
| Type de sortie | SEUL |
| est_personnalisé | Oui |
| Courant de Sortie | 135A |
| Poids | 13KG |
| Est-ce un appareil intelligent | Oui |
| Numéro de Modèle | SUN-6K-OG02LP1-EU-AM1 |
| Model | SUN-6K-OG02LP1-EU-AM1 |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max Charging Current (A) | 135 |
| Max Discharging Current (A) | 135 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| Max PV Access Power (W) | 12000 |
| Max PV Input Power (W) | 9600 |
| Max PV Input Voltage (V) | 500 |
| Start-up Voltage (V) | 125 |
| MPPT Voltage Range (V) | 150-425 |
| Rated PV Input Voltage (V) | 370 |
| Max Operating PV Input Current (A) | 36 |
| Max Input Short-Circuit Current (A) | 54 |
| Rated AC Output Power (VA/W) | 6000 |
| Max AC Output Power (VA/W) | 6000 |
| Max AC Output Current (A) | 26.1 |
| Peak Power (W) | 2 times of rated power, 10s |
| Rated Output Voltage (V) | 230 |
| Output Type | L+N+PE |
| Rated Output Frequency (Hz) | 50/60 |
| Output Voltage Waveform | Pure Sine Wave |
| Total Current Harmonic Distortion THDi | <3% |
| Max Input Power to Battery | 6000 W |
| Rated Input Voltage/Range (V) | 230 |
| Rated Input Frequency (Hz) | 50/60 |
| Grid Input Current (A) | 35 |
| Generator Input Current (A) | 35 |
| Max efficiency | 98% |
| Euro efficiency | 97% |
| MPPT efficiency | >99% |
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc fault circuit interrupter (AFCI) (Optional), Insulation Impedance Detection |
| Surge Protection Level | TYPE II(DC), TYPE II(AC) |
| LCD/LED display | LCD |
| Communication Interface | WIFI, RS485, CAN |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 3000m |
| Noise (dB) | <55 |
| Ingress Protection(IP) Rating | IP65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC), OVC III(AC) |
| Cabinet Size (WxHxD mm) | 306*427.5*175.8 |
| Weight (kg) | 9.3 |
| Typeof Cooling | Intelligent Air Cooling |
| Warranty | Standard 5 years, extended warranty |
| Safety / EMC Standard | IEC62109-1/-2, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 |
Battery
| Poids | 10.000 livres |
|---|---|
| Dimensions | 57 × 42 × 28 pouce |
| Nom de marque | NONE |
| Origine | CN (Origine) |
| Produit chimique à haute préoccupation | Aucun |
| Tension LVD UE | Basse tension : inférieure à 50Vac ou 75Vdc |
| Certification | CE, FCC, ROHS |
| Taille | 306*427.5*175.8 mm |
| Fréquence de sortie | 50HZ |
| Type de sortie | SEUL |
| est_personnalisé | Oui |
| Courant de Sortie | 135A |
| Poids | 13KG |
| Est-ce un appareil intelligent | Oui |
| Numéro de Modèle | SUN-6K-OG02LP1-EU-AM1 |
| Model | SUN-6K-OG02LP1-EU-AM1 |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max Charging Current (A) | 135 |
| Max Discharging Current (A) | 135 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| Max PV Access Power (W) | 12000 |
| Max PV Input Power (W) | 9600 |
| Max PV Input Voltage (V) | 500 |
| Start-up Voltage (V) | 125 |
| MPPT Voltage Range (V) | 150-425 |
| Rated PV Input Voltage (V) | 370 |
| Max Operating PV Input Current (A) | 36 |
| Max Input Short-Circuit Current (A) | 54 |
| Rated AC Output Power (VA/W) | 6000 |
| Max AC Output Power (VA/W) | 6000 |
| Max AC Output Current (A) | 26.1 |
| Peak Power (W) | 2 times of rated power, 10s |
| Rated Output Voltage (V) | 230 |
| Output Type | L+N+PE |
| Rated Output Frequency (Hz) | 50/60 |
| Output Voltage Waveform | Pure Sine Wave |
| Total Current Harmonic Distortion THDi | <3% |
| Max Input Power to Battery | 6000 W |
| Rated Input Voltage/Range (V) | 230 |
| Rated Input Frequency (Hz) | 50/60 |
| Grid Input Current (A) | 35 |
| Generator Input Current (A) | 35 |
| Max efficiency | 98% |
| Euro efficiency | 97% |
| MPPT efficiency | >99% |
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc fault circuit interrupter (AFCI) (Optional), Insulation Impedance Detection |
| Surge Protection Level | TYPE II(DC), TYPE II(AC) |
| LCD/LED display | LCD |
| Communication Interface | WIFI, RS485, CAN |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 3000m |
| Noise (dB) | <55 |
| Ingress Protection(IP) Rating | IP65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC), OVC III(AC) |
| Cabinet Size (WxHxD mm) | 306*427.5*175.8 |
| Weight (kg) | 9.3 |
| Typeof Cooling | Intelligent Air Cooling |
| Warranty | Standard 5 years, extended warranty |
| Safety / EMC Standard | IEC62109-1/-2, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 |
General
| Poids | 10.000 livres |
|---|---|
| Dimensions | 57 × 42 × 28 pouce |
| Nom de marque | NONE |
| Origine | CN (Origine) |
| Produit chimique à haute préoccupation | Aucun |
| Tension LVD UE | Basse tension : inférieure à 50Vac ou 75Vdc |
| Certification | CE, FCC, ROHS |
| Taille | 306*427.5*175.8 mm |
| Fréquence de sortie | 50HZ |
| Type de sortie | SEUL |
| est_personnalisé | Oui |
| Courant de Sortie | 135A |
| Poids | 13KG |
| Est-ce un appareil intelligent | Oui |
| Numéro de Modèle | SUN-6K-OG02LP1-EU-AM1 |
| Model | SUN-6K-OG02LP1-EU-AM1 |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max Charging Current (A) | 135 |
| Max Discharging Current (A) | 135 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| Max PV Access Power (W) | 12000 |
| Max PV Input Power (W) | 9600 |
| Max PV Input Voltage (V) | 500 |
| Start-up Voltage (V) | 125 |
| MPPT Voltage Range (V) | 150-425 |
| Rated PV Input Voltage (V) | 370 |
| Max Operating PV Input Current (A) | 36 |
| Max Input Short-Circuit Current (A) | 54 |
| Rated AC Output Power (VA/W) | 6000 |
| Max AC Output Power (VA/W) | 6000 |
| Max AC Output Current (A) | 26.1 |
| Peak Power (W) | 2 times of rated power, 10s |
| Rated Output Voltage (V) | 230 |
| Output Type | L+N+PE |
| Rated Output Frequency (Hz) | 50/60 |
| Output Voltage Waveform | Pure Sine Wave |
| Total Current Harmonic Distortion THDi | <3% |
| Max Input Power to Battery | 6000 W |
| Rated Input Voltage/Range (V) | 230 |
| Rated Input Frequency (Hz) | 50/60 |
| Grid Input Current (A) | 35 |
| Generator Input Current (A) | 35 |
| Max efficiency | 98% |
| Euro efficiency | 97% |
| MPPT efficiency | >99% |
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc fault circuit interrupter (AFCI) (Optional), Insulation Impedance Detection |
| Surge Protection Level | TYPE II(DC), TYPE II(AC) |
| LCD/LED display | LCD |
| Communication Interface | WIFI, RS485, CAN |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 3000m |
| Noise (dB) | <55 |

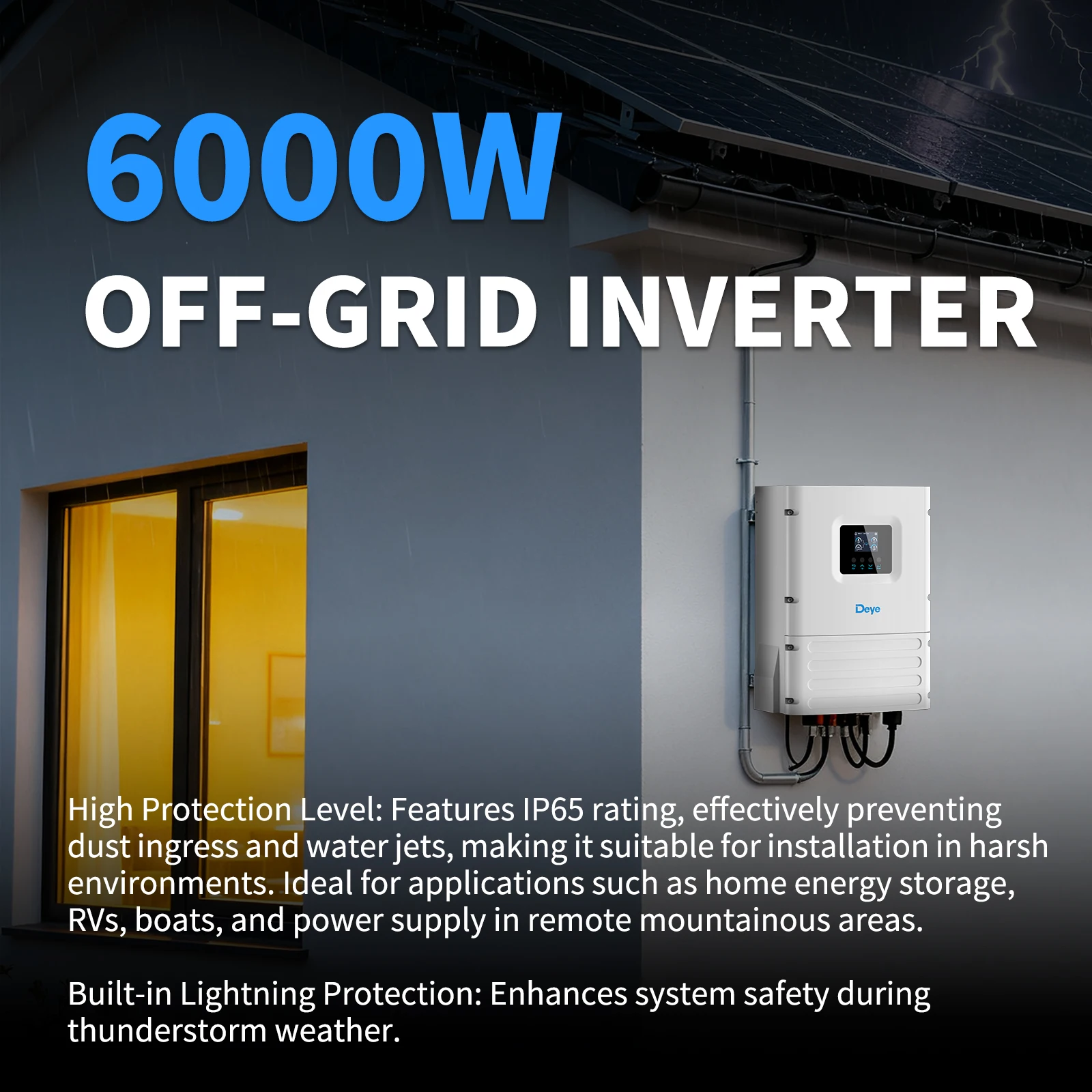

| Ingress Protection(IP) Rating | IP65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC), OVC III(AC) |
| Cabinet Size (WxHxD mm) | 306*427.5*175.8 |
| Weight (kg) | 9.3 |
| Typeof Cooling | Intelligent Air Cooling |
| Warranty | Standard 5 years, extended warranty |
| Safety / EMC Standard | IEC62109-1/-2, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 |
Description
Customer Reviews
You may also like
Choix des options
Ce produit a plusieurs variations. Les options peuvent être choisies sur la page du produit
Choix des options
Ce produit a plusieurs variations. Les options peuvent être choisies sur la page du produit
Choix des options
Ce produit a plusieurs variations. Les options peuvent être choisies sur la page du produit
Choix des options
Ce produit a plusieurs variations. Les options peuvent être choisies sur la page du produit
Choix des options
Ce produit a plusieurs variations. Les options peuvent être choisies sur la page du produit
Avis
Effacer les filtresIl n’y a pas encore d’avis.
